Overview

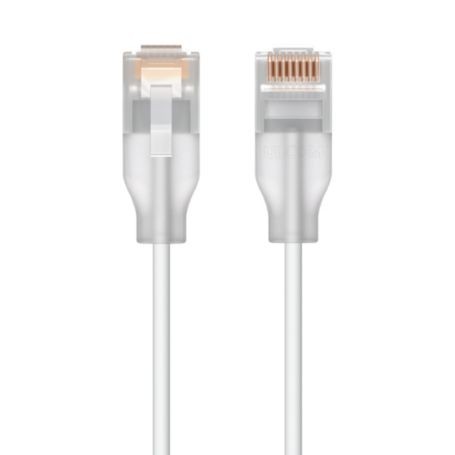

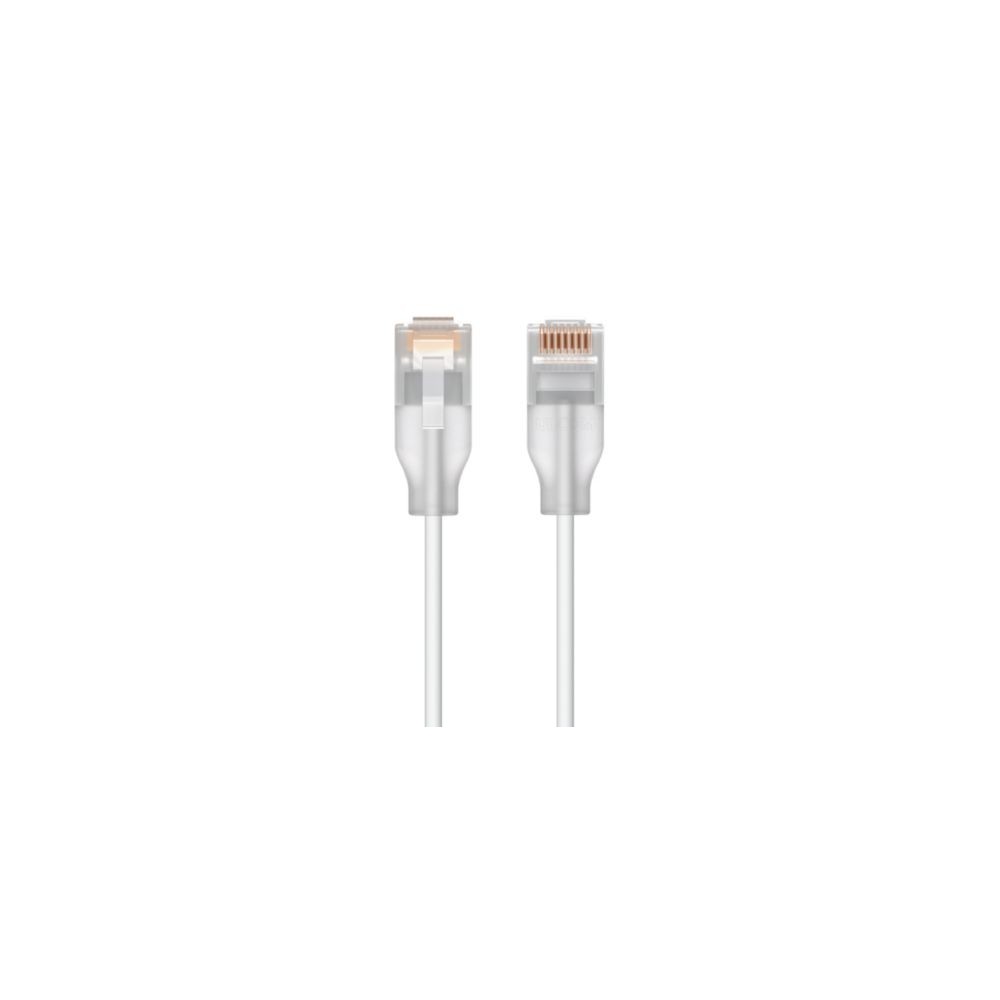

The Ubiquiti UACC-Cable-Patch-EL-0.3M-W is a 0.3m white UniFi Etherlighting Patch Cable designed for compact Ethernet connections in indoor network installations. It supports data rates up to 10G and features translucent booted RJ45 connectors designed to provide optimal visibility for Etherlighting effects with compatible UniFi equipment.
Technical Information
The 0.3m cable uses a 2.5mm thermoplastic elastomer (TPE) jacket, stranded copper conductors, and UTP construction. Its compact length and slim 34 AWG design make it suitable for short connections where minimizing excess cable is important.
Etherlighting Design
The translucent booted RJ45 connectors are designed to showcase Etherlighting effects on compatible UniFi networking equipment. Etherlighting functionality depends on compatible hardware and supported port features.
Key Features
- 0.3m white cable for compact Ethernet connections
- Supports data rates up to 10G
- Translucent booted RJ45 connectors for Etherlighting visibility
- 2.5mm slim TPE jacket
- 34 AWG stranded copper conductors with UTP construction
Applications
This patch cable is suitable for short connections between switches, patch panels, gateways, access points, and other compatible Ethernet equipment. The 0.3m length is useful for dense rack and desktop network setups where longer patch cables would create unnecessary slack.
Compatibility
The cable uses standard RJ45 connectors and supports Ethernet data rates up to 10G. Ubiquiti also specifies support for PoE up to PoE+++ for compatible powered network connections.
DC Supplies Product Note
The 0.3m length is particularly useful for short equipment-to-switch or patch-panel connections. Its 2.5mm diameter and 21mm minimum bend radius should be considered when routing multiple cables through dense network spaces.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-Cable-Patch-EL-0.3M-W |
|---|
| Product Type | Ethernet Patch Cable |
|---|
| Product Family | UniFi Etherlighting Patch Cable |
|---|
| Cable Length | 0.3 m (1 ft) |
|---|
| Colour | White |
|---|
| Supported Data Rate | Up to 10G |
|---|
| Supported PoE Type | Up to PoE+++ |
|---|
| Connector | 2 × translucent booted RJ45 |
|---|
| Operating Environment | Indoor |
|---|
| Jacket Diameter | 2.5 mm |
|---|
| Jacket Material | Thermoplastic elastomer (TPE) |
|---|
| Shielding Type | UTP |
|---|
| Conductor Type | Stranded copper |
|---|
| Conductor Wire Gauge | 34 AWG |
|---|
| Minimum Bend Radius | 21 mm |
|---|
| Flame Rating | VW-1 (UL1581) |
|---|
| Standards | TIA/EIA-568-B.2; ISO/IEC 11801 |
|---|
| Installation Temperature | -20 to 60°C |
|---|
| Storage Temperature | -20 to 75°C |
|---|
| Operating Temperature | -20 to 60°C |
|---|
FAQs
What is the length of the UACC-Cable-Patch-EL-0.3M-W?
The cable is 0.3 metres (approximately 1 foot) long.
What data rate does this cable support?
Ubiquiti specifies support for data rates up to 10G.
Does this cable support Etherlighting?
The translucent booted RJ45 connectors are designed to provide optimal Etherlighting visibility when connected to compatible UniFi equipment.
Is the cable shielded?
The cable uses UTP construction, while its RJ45 connectors are translucent booted connectors.
Does it support PoE?
Ubiquiti specifies support for PoE up to PoE+++.
