Overview

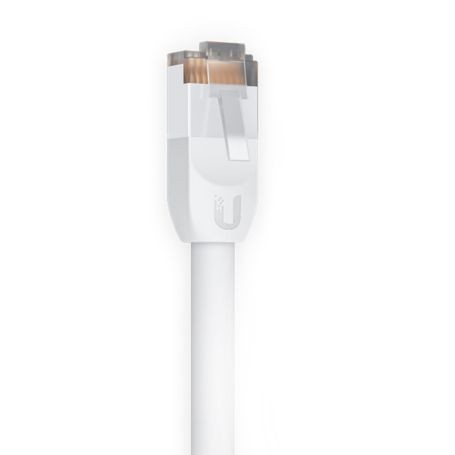

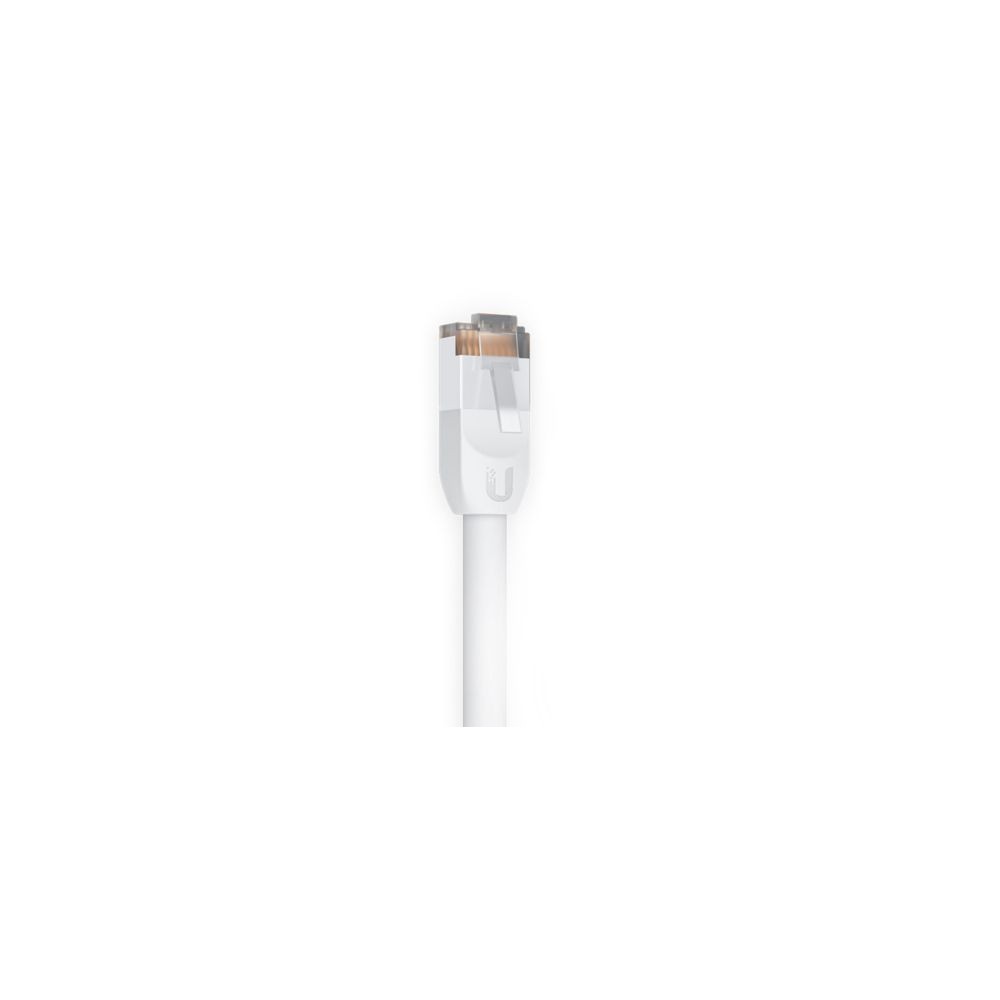

The Ubiquiti UACC-Cable-Patch-Outdoor-1M-W is a 1m white UniFi Patch Cable Outdoor designed for Ethernet connectivity in outdoor environments. It combines stranded copper conductors, S/FTP shielding, shielded RJ45 connectors, and a weather-resistant thermoplastic elastomer jacket for demanding network installations.
Technical Information
The cable supports data rates up to GbE and uses 24 AWG stranded copper conductors. Its 6.3 mm outer diameter incorporates S/FTP shielding and a TPE jacket, while the two shielded RJ45 connectors provide pre-terminated connections for compatible Ethernet equipment.
Outdoor Construction
Ubiquiti specifies an outdoor operating environment and UV resistance according to ASTM G 151/154. The cable also features a VW-1 flame rating and is designed with an insulating weather-resistant jacket for outdoor network deployments.
Key Features
- 1m white outdoor Ethernet patch cable
- Supports data rates up to GbE
- Two shielded RJ45 connectors
- S/FTP shielding with stranded copper conductors
- UV-resistant 6.3 mm TPE jacket
Applications
This cable is suitable for short Ethernet connections in outdoor UniFi network installations, including connections between compatible switches, access points, gateways, and other network devices. The 1m length is useful where a compact pre-terminated connection is required.
DC Supplies Product Note
For outdoor patching, the 1m length can help reduce unnecessary cable slack around equipment while retaining the outdoor-rated construction. Allow for the specified 50.4 mm minimum bend radius when routing the cable around equipment or through cable pathways.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-Cable-Patch-Outdoor-1M-W |
|---|
| Product Type | Outdoor Ethernet Patch Cable |
|---|
| Product Family | UniFi Patch Cable Outdoor |
|---|
| Cable Category | Category 5e |
|---|
| Cable Length | 1 m (3.3 ft) |
|---|
| Colour | White |
|---|
| Supported Data Rate | GbE |
|---|
| Supported PoE Type | Up to PoE+++ |
|---|
| Connector | 2 × shielded RJ45 |
|---|
| Operating Environment | Outdoor |
|---|
| Jacket Diameter | 6.3 mm (0.25 in) |
|---|
| Jacket Material | Thermoplastic elastomer (TPE) |
|---|
| Shielding Type | S/FTP |
|---|
| Conductor Type | Stranded copper |
|---|
| Conductor Wire Gauge | 24 AWG |
|---|
| Minimum Bend Radius | 50.4 mm (1.98 in) |
|---|
| UV Resistance | ASTM G 151/154 |
|---|
| Flame Rating | VW-1 (UL1581) |
|---|
| Standards | TIA/EIA-568-B.2; ISO/IEC 11801 |
|---|
| Installation Temperature | -20 to 60°C (-4 to 140°F) |
|---|
| Ambient Storage Temperature | -40 to 80°C (-40 to 176°F) |
|---|
| Ambient Operating Temperature | -30 to 75°C (-22 to 167°F) |
|---|
FAQs
What is the length of this outdoor patch cable?
The UACC-Cable-Patch-Outdoor-1M-W is 1 metre (3.3 feet) long.
What network speed does it support?
Ubiquiti specifies support for data rates up to GbE.
Is this cable designed for outdoor use?
Yes. Ubiquiti specifies an outdoor operating environment and UV resistance according to ASTM G 151/154.
Is the cable shielded?
Yes. It uses S/FTP shielding and two shielded RJ45 connectors.
What type of conductor does it use?
The cable uses 24 AWG stranded copper conductors.
