Overview

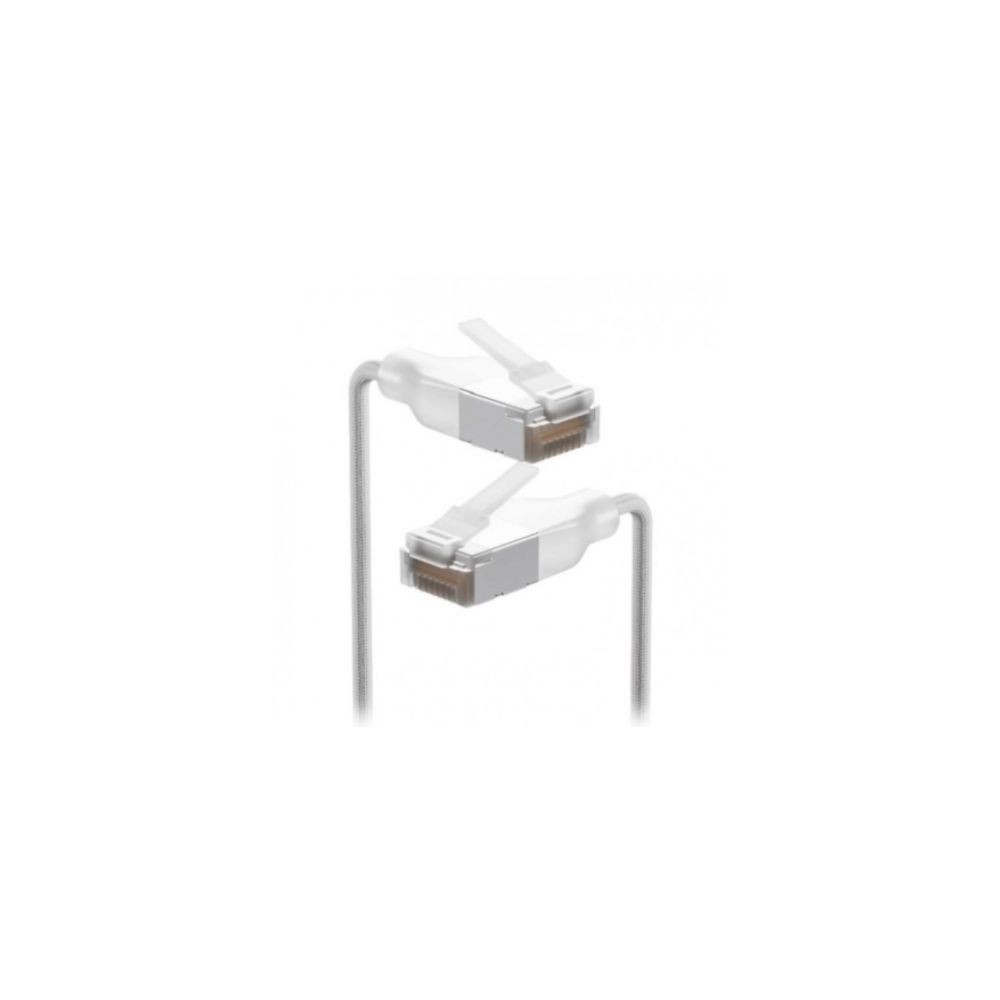

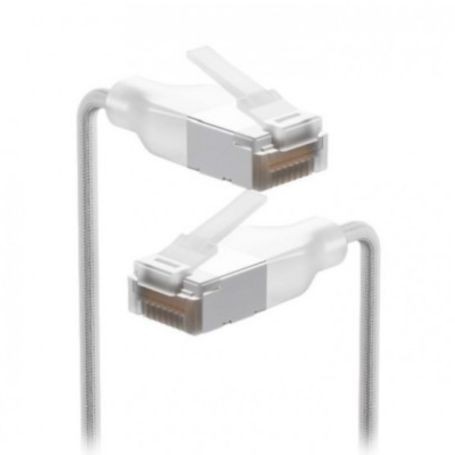

The Ubiquiti UACC-Cable-Patch-EL-C6A-15M-W is a 15m white UniFi Premium Patch Cable designed for high-speed Ethernet networking. It is an ultra-thin braided cable optimized for 10 GbE connectivity and features translucent booted shielded RJ45 connectors designed to provide optimal Etherlighting visibility with compatible UniFi equipment.
Technical Information
The 15m version uses a 3.3 mm outer diameter, thermoplastic elastomer and braided jacket construction, stranded copper conductors, and UTP shielding. For the 12–15m lengths in this product family, Ubiquiti specifies 32 AWG conductors and a minimum bend radius of 27 mm.
Connectivity
Two translucent booted and shielded RJ45 connectors provide standard Ethernet termination. The cable supports data rates up to 10G and PoE up to PoE+++, making it suitable for compatible high-speed network and powered-device connections.
Etherlighting
The translucent RJ45 boots are designed for optimal Etherlighting brightness. Etherlighting effects require compatible UniFi networking equipment and supported port functionality.
Key Features
- 15m white cable for longer Ethernet patching runs
- Up to 10G data-rate support
- Ultra-thin 3.3 mm braided TPE jacket
- Translucent booted shielded RJ45 connectors
- 32 AWG stranded copper conductors with UTP construction
Applications
This cable is suitable for connecting switches, patch panels, gateways, access points, and other Ethernet devices where a 15m patch lead is required. Its slim braided construction can help simplify cable routing compared with thicker conventional Ethernet patch cables.
DC Supplies Product Note
Because the 15m version uses the larger 3.3 mm jacket and 32 AWG conductors specified for the 12–15m lengths, it should not be treated as identical in construction to the shorter 0.15–8m variants. Allow at least 27 mm bend radius when routing the cable.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-Cable-Patch-EL-C6A-15M-W |
|---|
| Product Type | Ethernet Patch Cable |
|---|
| Product Family | UniFi Premium Patch Cable |
|---|
| Cable Category | Category 6A |
|---|
| Cable Length | 15 m (49.2 ft) |
|---|
| Colour | White |
|---|
| Supported Data Rate | Up to 10G |
|---|
| Supported PoE Type | Up to PoE+++ |
|---|
| Connector | 2 × translucent booted and shielded RJ45 |
|---|
| Operating Environment | Indoor |
|---|
| Jacket Diameter | 3.3 mm |
|---|
| Jacket Material | Thermoplastic elastomer (TPE) & braided |
|---|
| Shielding Type | UTP |
|---|
| Conductor Type | Stranded copper |
|---|
| Conductor Wire Gauge | 32 AWG |
|---|
| Minimum Bend Radius | 27 mm |
|---|
| Flame Rating | VW-1 (UL1581) |
|---|
| Standards | TIA/EIA-568-B.2; ISO/IEC 11801 |
|---|
| Installation Temperature | -20 to 60°C |
|---|
| Storage Temperature | -20 to 75°C |
|---|
| Operating Temperature | -20 to 60°C |
|---|
FAQs
What is the length of this cable?
The UACC-Cable-Patch-EL-C6A-15M-W is 15 metres (49.2 feet) long.
Does this cable support 10 GbE?
Yes. Ubiquiti specifies support for data rates up to 10G.
What type of connectors does it use?
It has two translucent booted and shielded RJ45 connectors.
What is the jacket diameter of the 15m version?
The 12–15m versions use a 3.3 mm outer jacket diameter.
Is the cable suitable for outdoor installation?
Ubiquiti specifies the operating environment for this product family as indoor. For exposed outdoor installations, use an appropriately outdoor-rated cable instead.
