Ubiquiti UniFi Patch Cable Outdoor

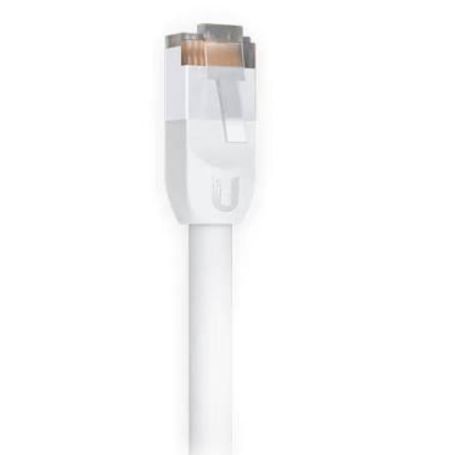

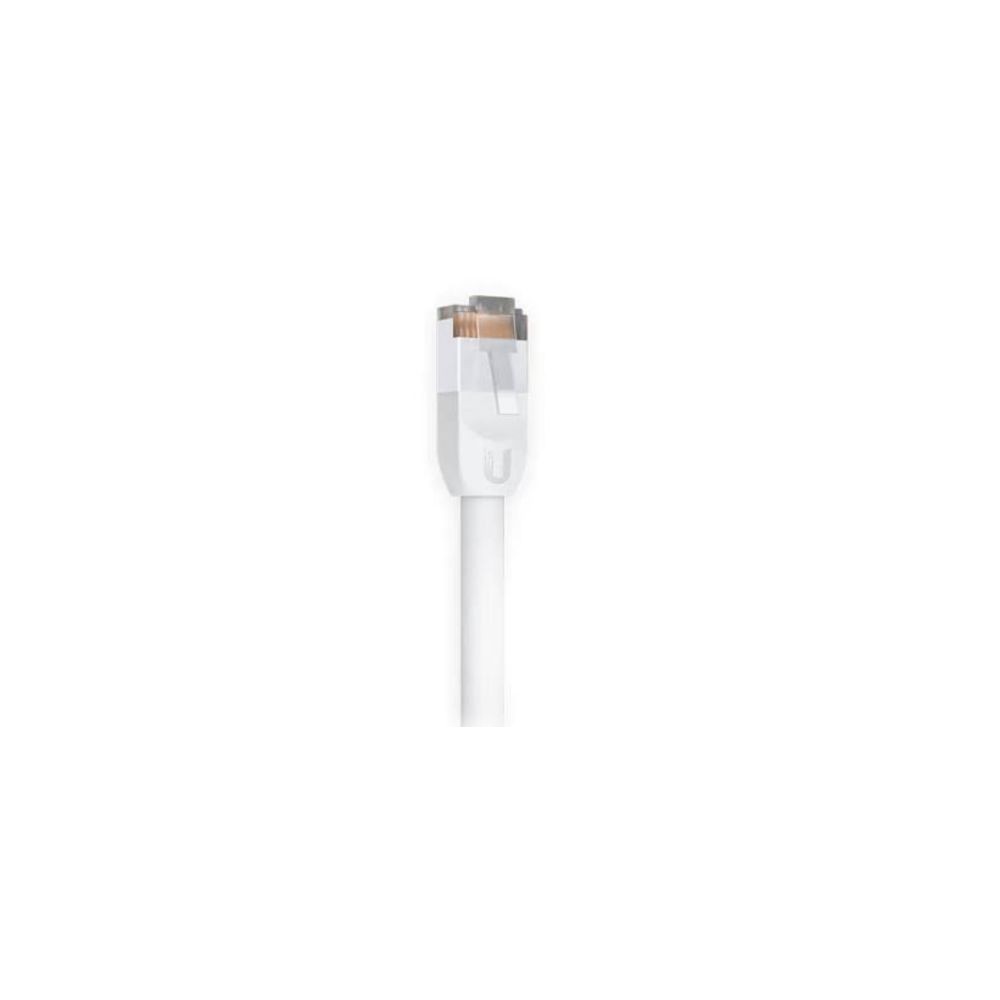

The UACC-Cable-Patch-Outdoor-5M-W is a 5 m white outdoor Ethernet patch cable designed for outdoor UniFi deployments. It uses Category 5e construction, shielded RJ45 connectors, internal shielding, and a thermoplastic elastomer (TPE) jacket for protection in outdoor environments.
Outdoor Connectivity
The cable uses stranded copper conductors with 24 AWG wire and shielded RJ45 connectors at both ends. Ubiquiti specifies GbE data-rate support and PoE support up to PoE+++. The 5 m version is part of the 1–8 m length group.
Outdoor Protection
The cable uses STP shielding and a TPE jacket designed for outdoor use. Ubiquiti specifies UV resistance according to ASTM G 151/154, a VW-1 flame rating, and compliance with TIA/EIA-568-B.2 and ISO/IEC 11801.
Key Features
- 5 m cable length with white finish
- Category 5e construction supporting GbE
- Shielded RJ45 connectors and STP cable construction
- UV resistance according to ASTM G 151/154
- 24 AWG stranded copper conductors with TPE jacket
Applications
The 5 m length is suited to outdoor Ethernet connections between compatible network equipment where additional cable reach is required. Its shielded construction and outdoor-rated jacket are intended for installations exposed to outdoor environmental conditions.
DC Supplies Product Note
The 5 m MPN belongs to Ubiquiti's 1–8 m construction group, which uses a 6 mm jacket diameter, 24 AWG stranded copper conductors, and a minimum 24 mm bend radius. The 12–15 m variants in this product family should not be assumed to have the same construction.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-Cable-Patch-Outdoor-5M-W |
|---|
| Product Type | Outdoor Ethernet Patch Cable |
|---|
| Series | UniFi Patch Cable Outdoor |
|---|
| Cable Length | 5 m (16.4 ft) |
|---|
| Color | White |
|---|
| Cable Type | Category 5e |
|---|
| Supported Data Rate | GbE |
|---|
| Supported PoE Type | Up to PoE+++ |
|---|
| Connectors | 2 × shielded RJ45 |
|---|
| Shielding Type | STP |
|---|
| Conductor Type | Stranded copper |
|---|
| Conductor Wire Gauge | 24 AWG |
|---|
| Jacket Material | Thermoplastic elastomer (TPE) |
|---|
| Jacket Diameter | 6 mm (0.24 in) |
|---|
| Minimum Bend Radius | 24 mm (0.94 in) |
|---|
| UV Resistance | ASTM G 151/154 |
|---|
| Flame Rating | VW-1 (UL1581) |
|---|
| Standards | TIA/EIA-568-B.2; ISO/IEC 11801 |
|---|
| Operating Environment | Outdoor |
|---|
| Installation Temperature | -20 to 60°C (-4 to 140°F) |
|---|
| Ambient Operating Temperature | -40 to 80°C (-40 to 176°F) |
|---|
| Ambient Storage Temperature | -30 to 75°C (-22 to 167°F) |
|---|
| Pack Option | Single Unit |
|---|
FAQs
What is the length of UACC-Cable-Patch-Outdoor-5M-W?
This exact MPN is the 5 m white version of the Ubiquiti UniFi Patch Cable Outdoor.
Is this cable designed for outdoor use?
Yes. Ubiquiti specifies an outdoor operating environment and UV resistance according to ASTM G 151/154.
What networking speed does it support?
Ubiquiti specifies GbE data-rate support for the UniFi Patch Cable Outdoor.
What connectors are used?
The cable has two shielded RJ45 connectors.
Is the cable suitable for PoE?
Yes. Ubiquiti specifies support for PoE up to PoE+++.
Is UACC-Cable-Patch-Outdoor-5M-W the same as the Ubiquiti Premium Patch Cable Outdoor?
No. The exact MPN identifies the standard UniFi Patch Cable Outdoor. The UniFi Premium Patch Cable Outdoor is a separate product family with a different MPN structure and Category 6A specification.
