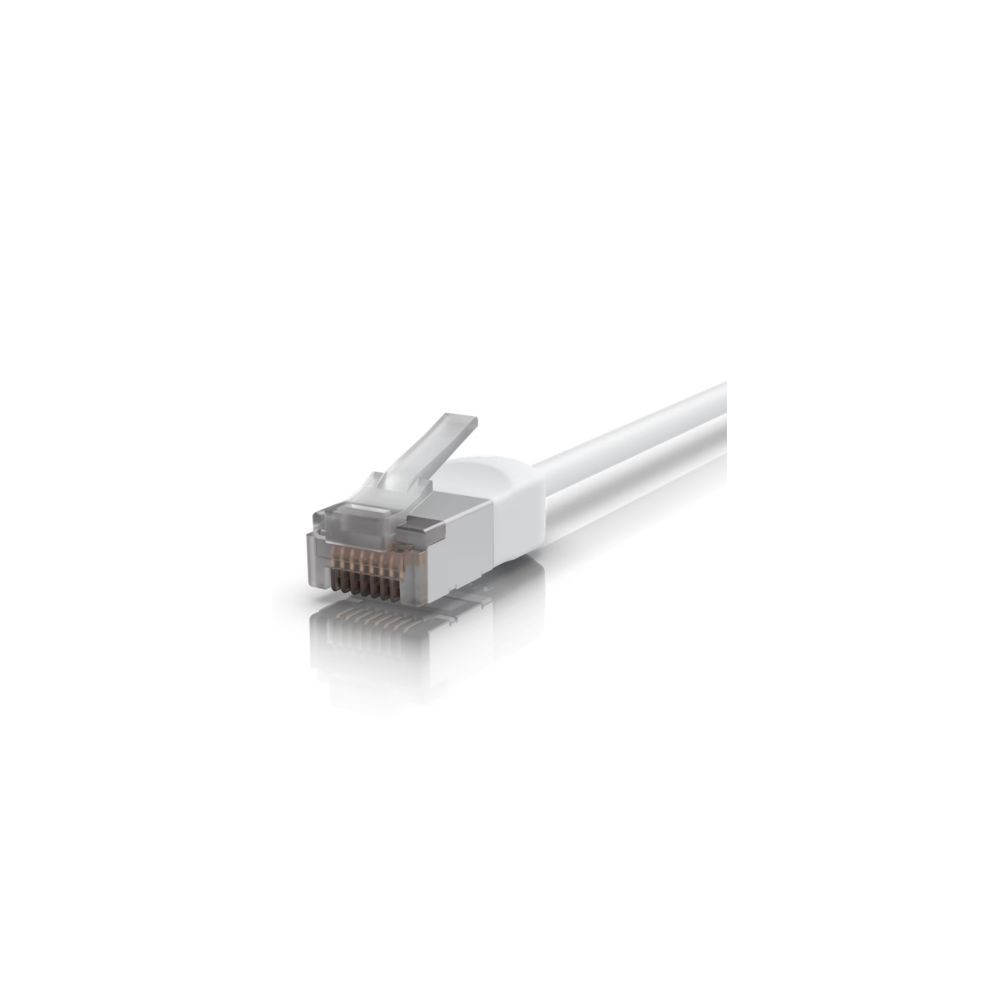

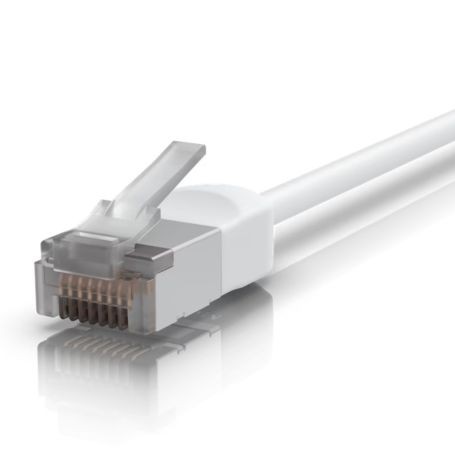

Ubiquiti UniFi Premium Patch Cable Outdoor
The UACC-Cable-Patch-Outdoor-C6A-3M-W is a 3 m white outdoor Ethernet patch cable designed for 10 GbE networking in outdoor environments. It uses Category 6A construction, shielded RJ45 connectors, internal foil shielding, and a thermoplastic elastomer (TPE) jacket.
Outdoor Connectivity
This cable provides RJ45 connectivity for Ethernet networking at data rates up to 10 GbE. It uses stranded copper conductors and F/UTP shielding, with shielded RJ45 connectors at both ends. The 3 m length belongs to Ubiquiti's 1–8 m cable group, which uses a 3.5 mm outer diameter and 34 AWG conductors.
Outdoor Protection
The TPE jacket and outdoor-rated construction are designed for use in outdoor networking installations. Ubiquiti specifies UV resistance according to ISO4892-2, a VW-1 flame rating, and an operating temperature range of -20 to 60°C.
Key Features
- 3 m white outdoor Ethernet patch cable
- Category 6A construction supporting up to 10 GbE
- F/UTP shielding with internal aluminum foil shielding
- Shielded RJ45 connectors with frosted boots
- UV-resistant TPE jacket for outdoor deployment
Applications
The 3 m length is suited to outdoor Ethernet connections between compatible network equipment where a shielded, weather-resistant cable is required. It can be used in outdoor networking installations that require 10 GbE connectivity and PoE support within the manufacturer's specifications.
DC Supplies Product Note
The 3 m variant uses the 1–8 m construction group: 3.5 mm jacket diameter, 34 AWG stranded copper conductors, and a minimum 28 mm bend radius. These specifications differ from the 12–15 m versions, which use a 3.9 mm jacket and 32 AWG conductors.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-Cable-Patch-Outdoor-C6A-3M-W |
|---|
| Product Type | Outdoor Ethernet Patch Cable |
|---|
| Series | UniFi Premium Patch Cable Outdoor |
|---|
| Cable Length | 3 m (9.8 ft) |
|---|
| Color | White |
|---|
| Cable Type | Category 6A |
|---|
| Supported Data Rate | Up to 10 GbE |
|---|
| Supported PoE Type | Up to PoE+++ |
|---|
| Connectors | 2 × frosted booted shielded RJ45 |
|---|
| Shielding Type | F/UTP |
|---|
| Anti-Crosstalk Divider | Aluminum foil |
|---|
| Conductor Type | Stranded copper |
|---|
| Conductor Wire Gauge | 34 AWG |
|---|
| Jacket Material | Thermoplastic elastomer (TPE) |
|---|
| Jacket Diameter | 3.5 mm (0.14 in) |
|---|
| Minimum Bend Radius | 28 mm (1.1 in) |
|---|
| UV Resistance | ISO4892-2 |
|---|
| Flame Rating | VW-1 (UL1581) |
|---|
| Standards | TIA/EIA-568-B.2; ISO/IEC 11801 |
|---|
| Operating Environment | Outdoor |
|---|
| Installation Temperature | -20 to 60°C (-4 to 140°F) |
|---|
| Ambient Operating Temperature | -20 to 60°C (-4 to 140°F) |
|---|
| Ambient Storage Temperature | -40 to 85°C (-40 to 185°F) |
|---|
| Pack Option | Single Unit |
|---|
FAQs
What is the length of UACC-Cable-Patch-Outdoor-C6A-3M-W?
This exact MPN is the 3 m white version of the UniFi Premium Patch Cable Outdoor.
Does this cable support 10 GbE?
Yes. Ubiquiti specifies support for data rates up to 10 GbE.
Is this cable suitable for outdoor installations?
Yes. Ubiquiti specifies an outdoor operating environment and UV resistance according to ISO4892-2.
What connectors are used?
The cable has two frosted booted shielded RJ45 connectors.
What type of shielding does the cable use?
The cable uses F/UTP shielding with an aluminum foil anti-crosstalk divider.
Does the cable support PoE?
Yes. Ubiquiti specifies support for PoE up to PoE+++ for the UniFi Premium Patch Cable Outdoor.
