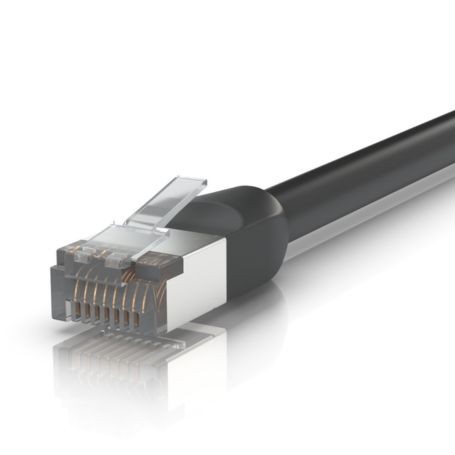

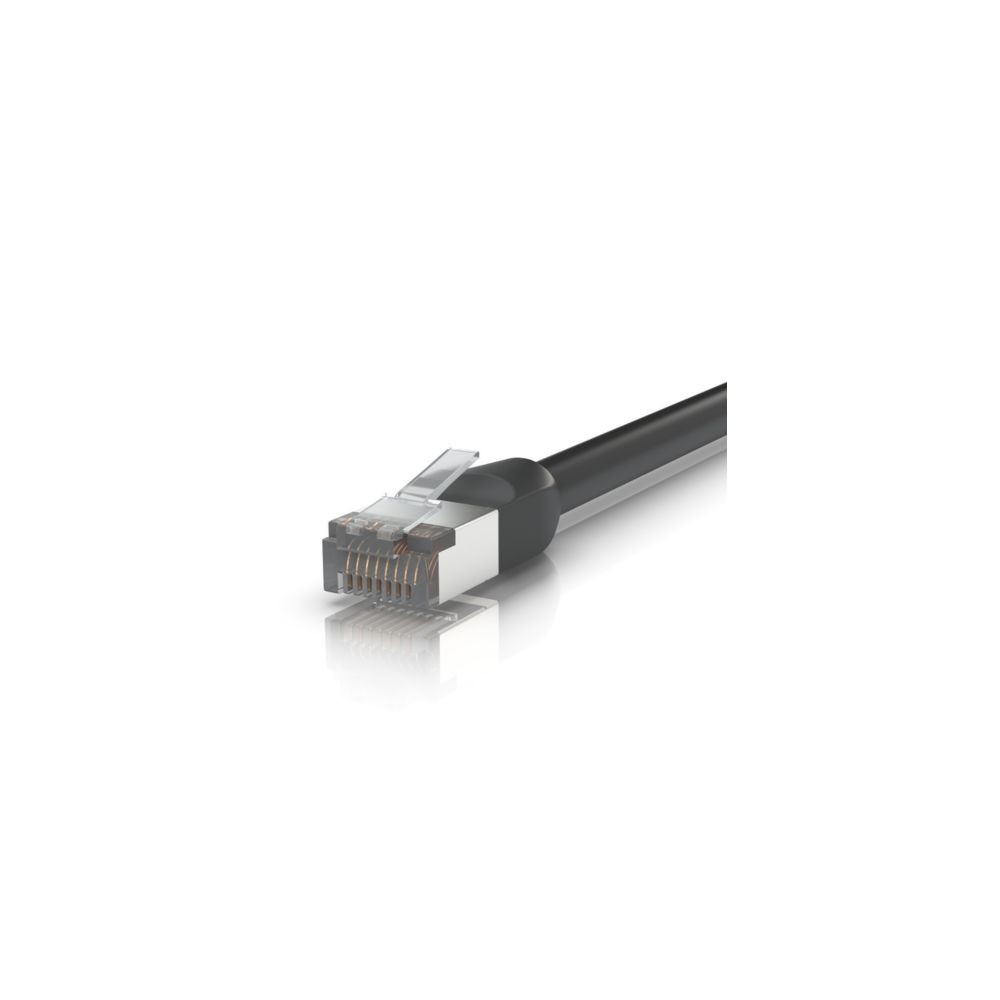

Ubiquiti UISP Patch Cable Outdoor
The UACC-Cable-Patch-Outdoor-1M-BK is a 1 m black outdoor Ethernet patch cable designed for outdoor UISP deployments. It uses Category 5e construction, shielded RJ45 connectors, internal shielding, and a thermoplastic elastomer jacket for protection in outdoor environments.
Outdoor Connectivity
This cable uses stranded copper conductors with 24 AWG wire and shielded RJ45 connectors at both ends. The cable is specified for GbE networking and supports PoE up to PoE+++. Its outdoor-oriented construction includes shielding and a weather-resistant insulating jacket.
Protection and Construction
The cable uses STP shielding, a TPE jacket, and UV resistance tested to ASTM G 151/154. Ubiquiti also specifies a VW-1 flame rating and compliance with TIA/EIA-568-B.2 and ISO/IEC 11801. The minimum bend radius for the current specification is 50.4 mm.
Key Features
- 1 m cable length with black finish
- Category 5e construction supporting GbE
- Shielded RJ45 connectors and S/FTP cable construction
- UV resistance according to ASTM G 151/154
- 24 AWG stranded copper conductors with TPE jacket
Applications
The cable is intended for outdoor Ethernet connections in compatible networking deployments, particularly where a shielded patch cable with environmental protection is required. Its 1 m length is suited to short equipment-to-equipment connections.
DC Supplies Product Note
Ubiquiti's current technical specification identifies the outdoor cable family as S/FTP with a 6.3 mm jacket diameter and a 50.4 mm minimum bend radius. Earlier Ubiquiti documentation for this MPN lists STP, a 6 mm jacket, and a 24 mm minimum bend radius, so the current manufacturer technical specification should be used when recording the product's present specifications.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-Cable-Patch-Outdoor-1M-BK |
|---|
| Product Type | Outdoor Ethernet Patch Cable |
|---|
| Series | UniFi Patch Cable Outdoor |
|---|
| Cable Length | 1 m (3.3 ft) |
|---|
| Color | Black |
|---|
| Cable Type | Category 5e |
|---|
| Supported Data Rate | GbE |
|---|
| Supported PoE Type | Up to PoE+++ |
|---|
| Connectors | 2 × shielded RJ45 |
|---|
| Shielding Type | S/FTP |
|---|
| Conductor Type | Stranded copper |
|---|
| Conductor Wire Gauge | 24 AWG |
|---|
| Jacket Material | Thermoplastic elastomer (TPE) |
|---|
| Jacket Diameter | 6.3 mm (0.25 in) |
|---|
| Minimum Bend Radius | 50.4 mm (1.98 in) |
|---|
| UV Resistance | ASTM G 151/154 |
|---|
| Flame Rating | VW-1 (UL1581) |
|---|
| Standards | TIA/EIA-568-B.2; ISO/IEC 11801 |
|---|
| Operating Environment | Outdoor |
|---|
| Installation Temperature | -20 to 60°C (-4 to 140°F) |
|---|
| Ambient Operating Temperature | -30 to 75°C (-22 to 167°F) |
|---|
| Ambient Storage Temperature | -40 to 80°C (-40 to 176°F) |
|---|
| Pack Option | Single Unit |
|---|
FAQs
What is the length of UACC-Cable-Patch-Outdoor-1M-BK?
This exact MPN is the 1 m black version of the Ubiquiti outdoor patch cable.
Can this cable be used outdoors?
Yes. Ubiquiti specifies an outdoor operating environment and provides UV resistance according to ASTM G 151/154.
What networking speed does the cable support?
Ubiquiti specifies GbE support for the current UniFi Patch Cable Outdoor specification.
What type of connectors does it use?
The cable has two shielded RJ45 connectors.
Is the cable suitable for PoE?
Ubiquiti specifies support for PoE up to PoE+++.
What is the cable's shielding construction?
The current Ubiquiti technical specification identifies the cable as S/FTP, combining shielded construction with foil shielding.
