Ubiquiti UniFi Etherlighting Patch Cable

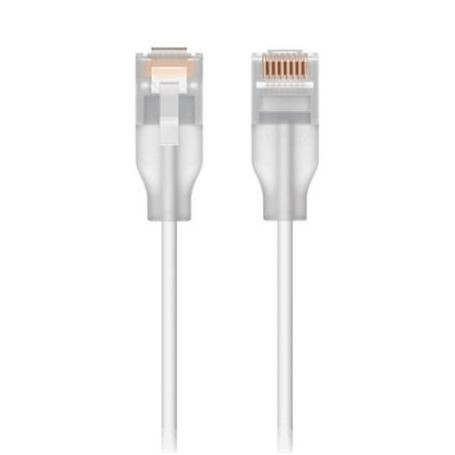

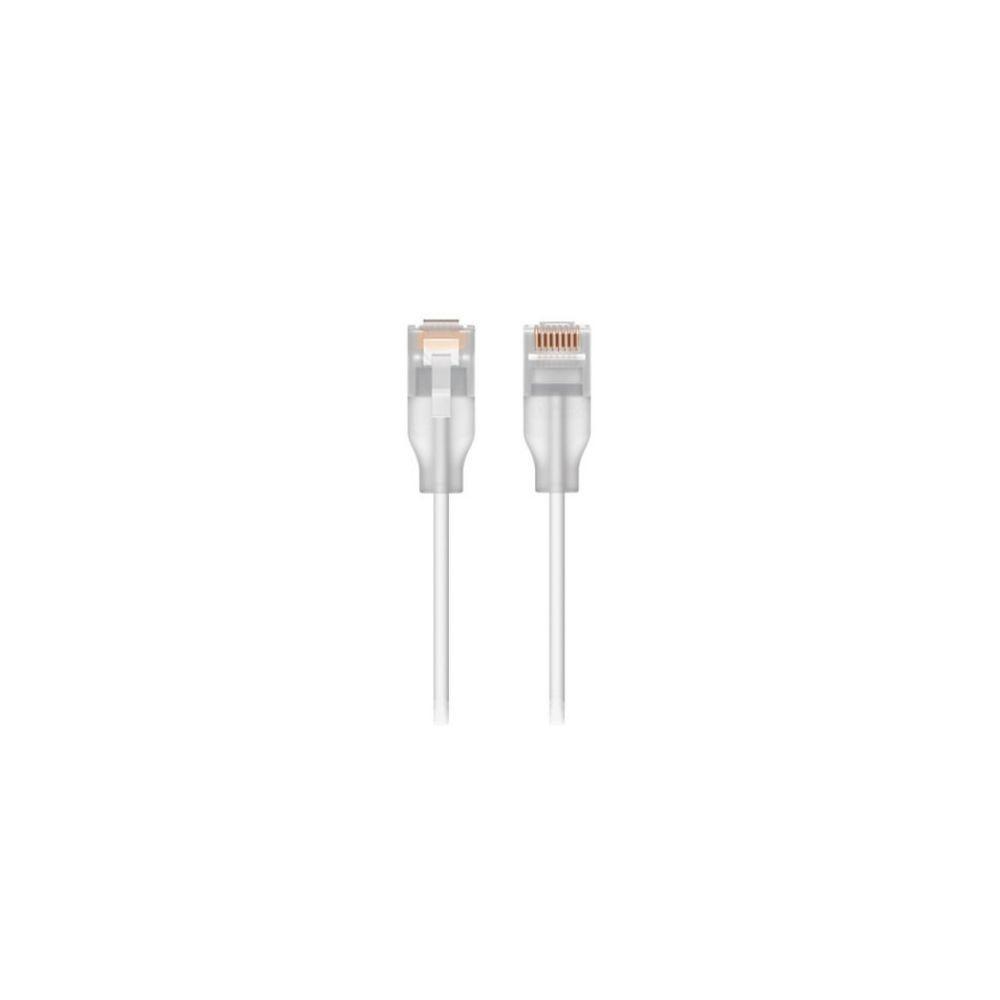

The UACC-Cable-Patch-EL-15M-W is a 15 m white UniFi Etherlighting Patch Cable designed for Ethernet connections supporting data rates up to 10 GbE. It uses a nano-thin 2.9 mm cable profile and translucent booted RJ45 connectors designed to enhance Etherlighting effects when connected to compatible Ubiquiti equipment.
Connectivity
The cable has two translucent booted RJ45 connectors and uses unshielded twisted-pair (UTP) construction with stranded copper conductors. For the 12–15 m variants, Ubiquiti specifies 32 AWG conductors, a 2.9 mm jacket diameter, and a minimum bend radius of 24 mm.
Etherlighting Compatibility
The translucent RJ45 boots are designed for optimal Etherlighting brightness on compatible Ubiquiti equipment. Etherlighting effects depend on the connected Ubiquiti device and its supported functionality; the cable does not provide independent lighting functionality.
Key Features
- 15 m cable length for extended Ethernet connections
- Supports data rates up to 10 GbE
- 2.9 mm outer diameter for the 12–15 m cable lengths
- Translucent booted RJ45 connectors designed for Etherlighting brightness
- 32 AWG stranded copper UTP construction
Applications
The 15 m length is suited to Ethernet connections requiring additional cable reach between network equipment and connected devices. The nano-thin construction helps maintain a relatively compact cable profile while providing the specified Ethernet and PoE support.
DC Supplies Product Note
This exact 15 m variant belongs to the 12–15 m length group, which Ubiquiti specifies with a 2.9 mm jacket diameter, 32 AWG stranded copper conductors, and a 24 mm minimum bend radius. These specifications differ from the shorter 0.15–8 m variants.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-Cable-Patch-EL-15M-W |
|---|
| Product Type | Ethernet Patch Cable |
|---|
| Series | UniFi Etherlighting Patch Cable |
|---|
| Length | 15 m |
|---|
| Color | White |
|---|
| Supported Data Rate | 10 GbE |
|---|
| Supported PoE Type | Up to PoE+++ |
|---|
| Connectors | 2 × translucent booted RJ45 |
|---|
| Shielding Type | UTP |
|---|
| Conductor Type | Stranded copper |
|---|
| Conductor Wire Gauge | 32 AWG |
|---|
| Jacket Diameter | 2.9 mm |
|---|
| Jacket Material | Thermoplastic elastomer (TPE) |
|---|
| Minimum Bend Radius | 24 mm |
|---|
| Flame Rating | VW-1 (UL1581) |
|---|
| Standards | TIA/EIA-568-B.2; ISO/IEC 11801 |
|---|
| Operating Environment | Indoor |
|---|
| Installation Temperature | -20 to 60°C (-4 to 140°F) |
|---|
| Ambient Operating Temperature | -20 to 60°C (-4 to 140°F) |
|---|
| Ambient Storage Temperature | -20 to 75°C (-4 to 167°F) |
|---|
FAQs
What is the length of UACC-Cable-Patch-EL-15M-W?
This exact MPN is the 15 m version of the Ubiquiti UniFi Etherlighting Patch Cable.
Does this cable support 10 GbE?
Yes. Ubiquiti specifies support for data rates up to 10 GbE.
What connectors are used?
The cable uses two translucent booted RJ45 connectors designed to provide optimal Etherlighting brightness with compatible Ubiquiti equipment.
Is the cable shielded?
No. Ubiquiti specifies the cable construction as UTP, or unshielded twisted pair.
Does the 15 m version have the same cable construction as shorter variants?
No. The 12–15 m variants use a 2.9 mm jacket diameter and 32 AWG stranded copper conductors, while the 0.15–8 m variants use a 2.5 mm jacket diameter and 34 AWG conductors.
