Ubiquiti UniFi Etherlighting Patch Cable

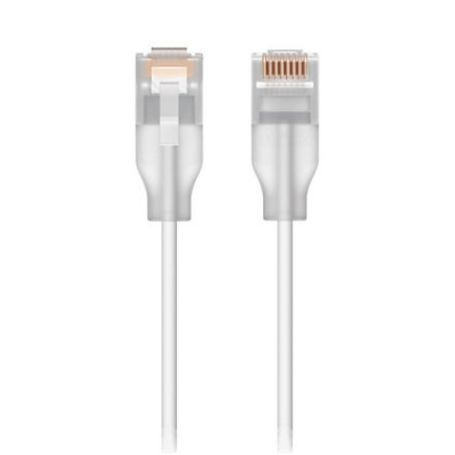

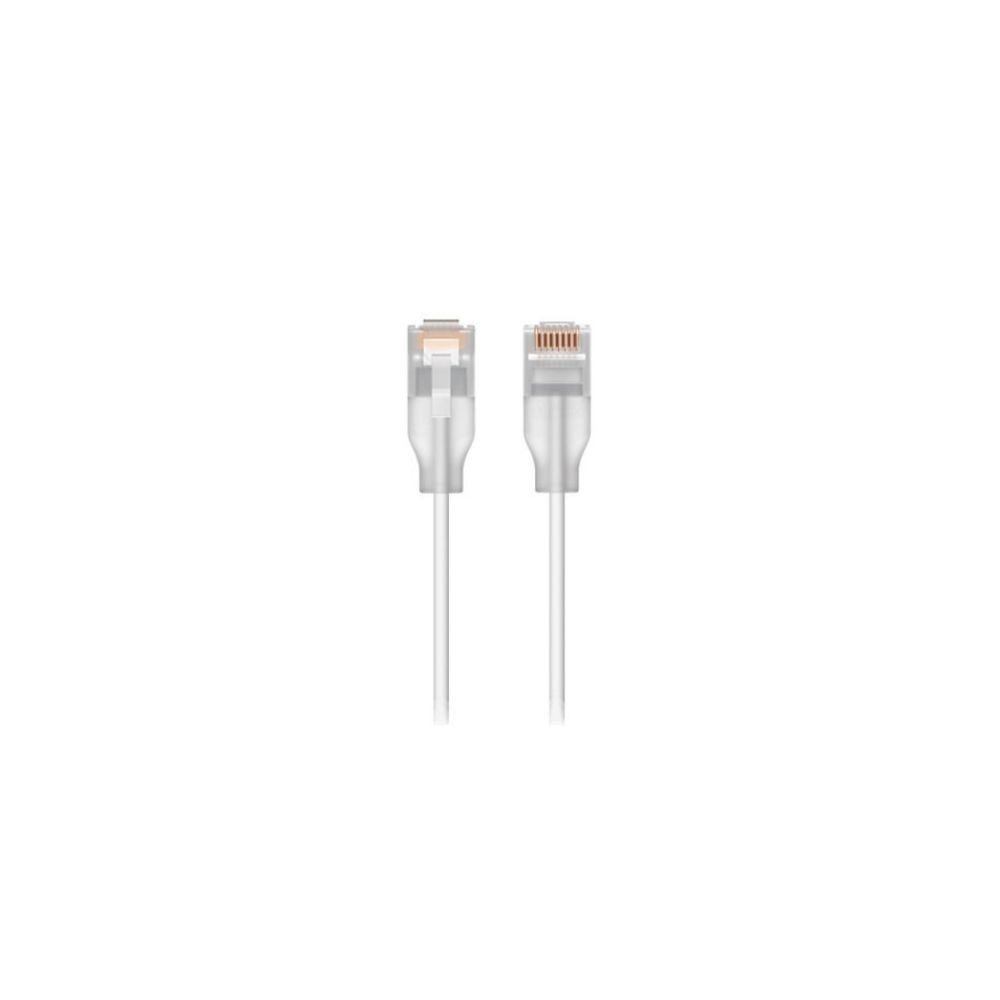

The UACC-Cable-Patch-EL-0.15M-W is a 0.15 m white UniFi Etherlighting patch cable designed for compact Ethernet connections and support for data rates up to 10 GbE. Its nano-thin 2.5 mm cable construction and translucent booted RJ45 connectors are designed to work with Ubiquiti Etherlighting-enabled equipment.
Connectivity
The cable uses RJ45 connectors at both ends and is specified for 10 GbE networking. It uses unshielded twisted-pair (UTP) construction with stranded copper conductors. The 0.15 m length is suited to short interconnections where minimizing cable slack is useful.
Etherlighting Compatibility
The translucent RJ45 boots are designed to provide optimal Etherlighting brightness when used with compatible Ubiquiti equipment. Etherlighting effects depend on the connected Ubiquiti hardware and its supported features; the cable itself does not provide independent lighting functionality.
Key Features
- 0.15 m cable length for short Ethernet interconnections
- Supports data rates up to 10 GbE
- 2.5 mm outer diameter for a nano-thin cable profile
- Translucent booted RJ45 connectors optimized for Etherlighting brightness
- 34 AWG stranded copper UTP construction
Applications
This patch cable is suitable for short connections between Ethernet switches, patching equipment, and other compatible RJ45 network devices where a compact cable length is appropriate. Its thin profile can also help reduce cable bulk in dense network installations.
DC Supplies Product Note
The 0.15 m length is the exact variant identified by the MPN and should not be confused with the longer UACC-Cable-Patch-EL variants. The 2.5 mm jacket diameter specification applies to the 0.15 m variant because Ubiquiti specifies this diameter for the 0.15–8 m lengths.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-Cable-Patch-EL-0.15M-W |
|---|
| Product Type | Ethernet Patch Cable |
|---|
| Series | UniFi Etherlighting Patch Cable |
|---|
| Length | 0.15 m |
|---|
| Color | White |
|---|
| Supported Data Rate | Up to 10 GbE |
|---|
| Connectors | 2 × translucent booted RJ45 |
|---|
| Shielding Type | UTP |
|---|
| Conductor Type | Stranded copper |
|---|
| Conductor Wire Gauge | 34 AWG |
|---|
| Jacket Diameter | 2.5 mm |
|---|
| Jacket Material | Thermoplastic elastomer (TPE) |
|---|
| Supported PoE Type | Up to PoE+++ |
|---|
| Flame Rating | VW-1 (UL1581) |
|---|
| Standards | TIA/EIA-568-B.2; ISO/IEC 11801 |
|---|
| Operating Environment | Indoor |
|---|
| Installation Temperature | -20 to 60°C (-4 to 140°F) |
|---|
| Ambient Operating Temperature | -20 to 60°C (-4 to 140°F) |
|---|
| Ambient Storage Temperature | -20 to 75°C (-4 to 167°F) |
|---|
| Minimum Bend Radius | 21 mm |
|---|
FAQs
What is the length of UACC-Cable-Patch-EL-0.15M-W?
This exact MPN is the 0.15 m version of the UniFi Etherlighting Patch Cable.
Does this cable support 10 GbE?
Yes. Ubiquiti specifies support for data rates up to 10 GbE.
What connectors does the cable use?
It has two translucent booted RJ45 connectors.
Is the cable shielded?
No. Ubiquiti specifies the cable construction as UTP, meaning unshielded twisted pair.
Is this the same as the Ubiquiti Premium Patch Cable?
No. The exact MPN identifies the standard UniFi Etherlighting Patch Cable. The Premium Patch Cable is a separate product with a different MPN and construction.
