Detailed Specifications
Overview

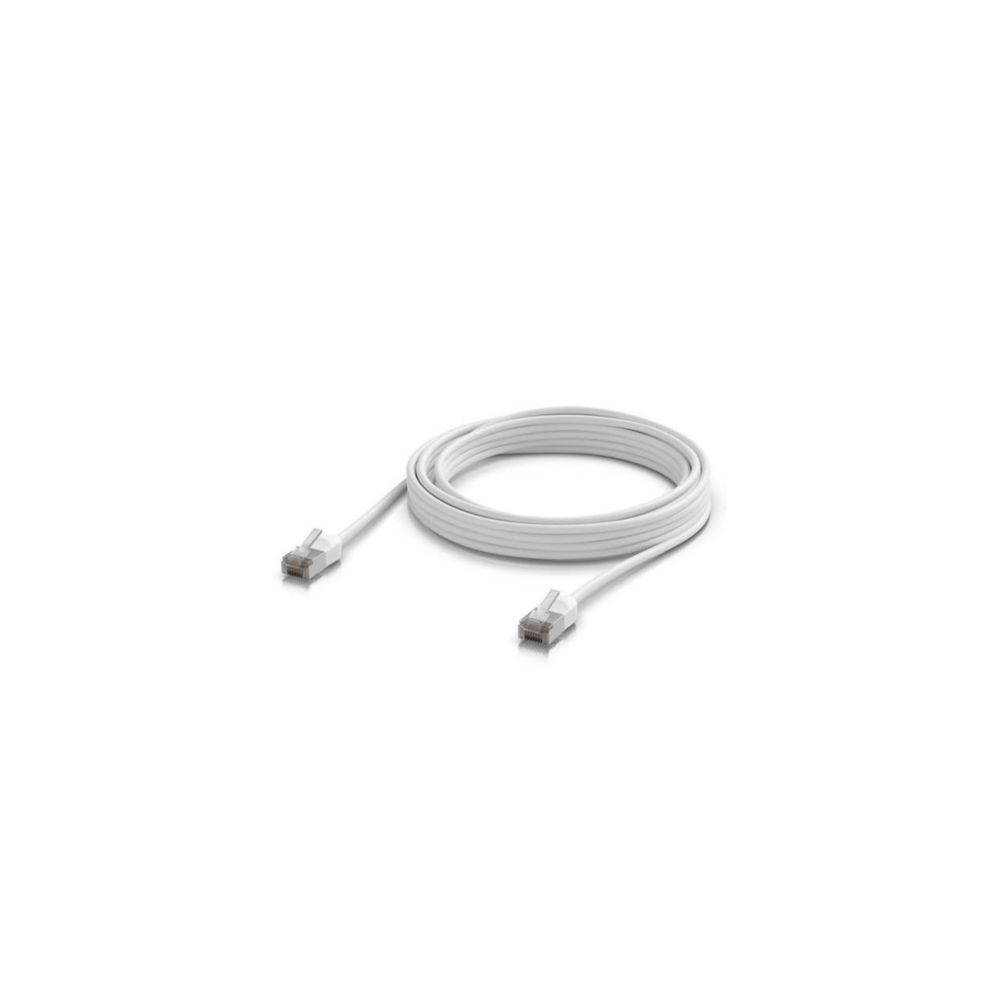

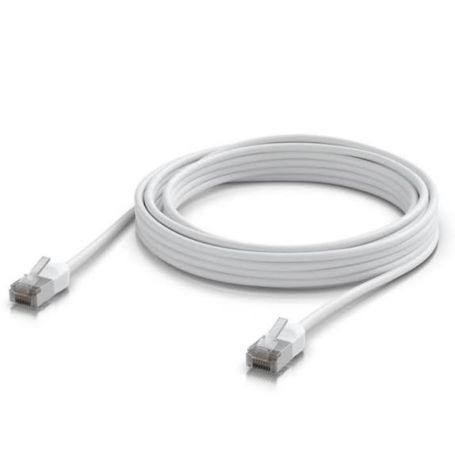

The Ubiquiti UACC-CABLE-PATCH-EL-3M-W is a 3 m white UniFi Etherlighting Patch Cable designed for high-speed Ethernet connections and Etherlighting installations. It supports data rates up to 10 GbE and uses a nano-thin 2.5 mm cable construction for the 0.15–8 m lengths.
Connectivity
The cable uses UTP construction with stranded copper conductors and is terminated with two translucent booted RJ45 connectors. The translucent boots are designed to allow Etherlighting effects to be displayed through compatible UniFi networking equipment.
Construction
The 3 m variant has a 2.5 mm outer diameter and a thermoplastic elastomer (TPE) jacket. Ubiquiti specifies a minimum bend radius of 21 mm for the 0.15–8 m variants and a VW-1 flame rating under UL 1581.
Key Features
- 3 m cable length
- Up to 10 GbE data rate
- Nano-thin 2.5 mm outer diameter
- Translucent booted RJ45 connectors for Etherlighting effects
- UTP construction with stranded copper conductors
Applications
The UACC-CABLE-PATCH-EL-3M-W is intended for Ethernet connections in compatible indoor UniFi installations, particularly deployments where Etherlighting effects and a slim, flexible patch cable are useful.
DC Supplies Product Note
This exact MPN is the 3 m white variant of the UniFi Etherlighting Patch Cable. The 3 m model belongs to Ubiquiti's 0.15–8 m group, which uses a 2.5 mm outer diameter and 34 AWG stranded copper conductors.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-CABLE-PATCH-EL-3M-W |
| Product Type | UniFi Etherlighting Patch Cable |
| Cable Length | 3 m (9.8 ft) |
| Supported Data Rate | Up to 10 GbE |
| Supported PoE Type | Up to PoE+++ |
| Connector | 2 × translucent booted RJ45 |
| Shielding Type | UTP |
| Conductor Type | Stranded copper |
| Conductor Wire Gauge | 34 AWG |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Jacket Diameter | 2.5 mm (0.1 in) |
| Minimum Bend Radius | 21 mm (0.83 in) |
| Flame Rating | VW-1 (UL 1581) |
| Operating Environment | Indoor |
| Installation Temperature | -20 to 60 °C (-4 to 140 °F) |
| Ambient Storage Temperature | -20 to 75 °C (-4 to 167 °F) |
| Ambient Operating Temperature | -20 to 60 °C (-4 to 140 °F) |
| Standards | TIA/EIA-568-B.2; ISO/IEC 11801 |
| Color | White |
| NDAA Compliant | Yes |
FAQs
What length is the UACC-CABLE-PATCH-EL-3M-W?
This exact variant is 3 m (9.8 ft) long.
What network speed does it support?
Ubiquiti specifies support for data rates up to 10 GbE.
What are the translucent RJ45 boots for?
The translucent boots are designed to showcase Etherlighting effects when used with compatible UniFi equipment.
Is the cable shielded?
No. Ubiquiti specifies UTP construction, meaning the cable uses unshielded twisted pairs.
What is the cable diameter?
The 3 m variant has a specified outer diameter of 2.5 mm.
