Overview

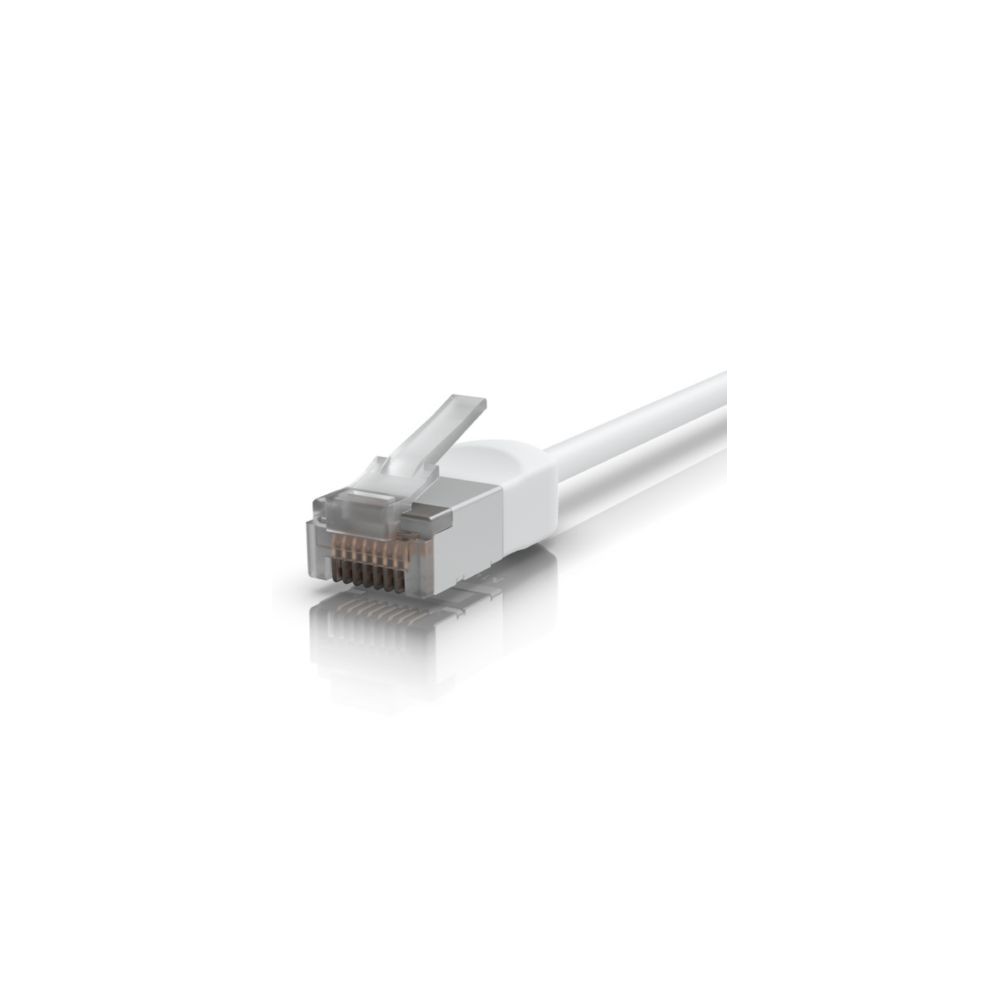

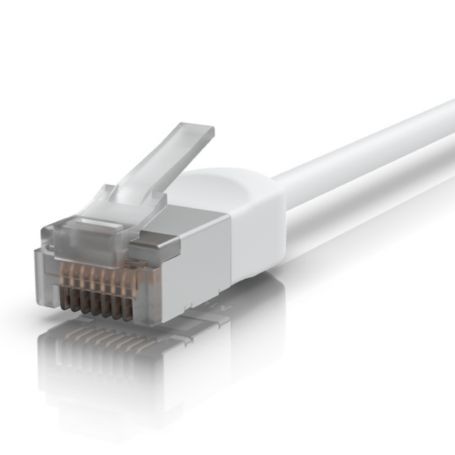

The Ubiquiti UACC-CABLE-PATCH-OUTDOOR-C6A-8M-W is an 8 m white UniFi Premium Patch Cable Outdoor designed for outdoor Ethernet networking. It uses Category 6A construction, shielded RJ45 connectors, and a thermoplastic elastomer jacket for outdoor deployments.
Connectivity
The cable supports data rates up to 10 GbE and uses F/UTP shielding with stranded copper conductors. Both ends are fitted with frosted, booted, shielded RJ45 connectors.
Outdoor Construction
The cable uses a 3.5 mm TPE jacket for the 1–8 m lengths. It provides UV resistance according to ISO 4892-2 and has a VW-1 flame rating under UL 1581. Ubiquiti specifies an ambient operating temperature range of -20 to 60 °C.
Key Features
- 8 m cable length
- Category 6A cable construction
- Up to 10 GbE data rate
- F/UTP shielding with stranded copper conductors
- Shielded RJ45 connectors and UV-resistant TPE jacket
Applications
The UACC-CABLE-PATCH-OUTDOOR-C6A-8M-W is intended for outdoor Ethernet connections where Category 6A performance, shielding, and weather-resistant cable construction are required.
DC Supplies Product Note
This exact MPN is the 8 m white variant. The 1–8 m versions use the specified 3.5 mm jacket diameter, so the 8 m model should not be confused with the longer 12–15 m variants that use a 3.9 mm jacket.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-CABLE-PATCH-OUTDOOR-C6A-8M-W |
| Product Type | UniFi Premium Patch Cable Outdoor |
| Cable Length | 8 m (26.2 ft) |
| Cable Category | Category 6A |
| Shielding Type | F/UTP |
| Conductor Type | Stranded copper |
| Conductor Wire Gauge | 34 AWG |
| Connector | 2 × frosted booted and shielded RJ45 |
| Supported Data Rate | Up to 10 GbE |
| Supported PoE Type | Up to PoE+++ |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Jacket Diameter | 3.5 mm (0.14 in) |
| Bend Radius | Minimum 28 mm (1.1 in) |
| UV Resistance | ISO 4892-2 |
| Flame Rating | VW-1 (UL1581) |
| Operating Environment | Outdoor |
| Installation Temperature | -20 to 60 °C (-4 to 140 °F) |
| Ambient Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
| Ambient Operating Temperature | -20 to 60 °C (-4 to 140 °F) |
| Standards | TIA/EIA-568-B.2; ISO/IEC 11801 |
| Color | White |
FAQs
What length is the UACC-CABLE-PATCH-OUTDOOR-C6A-8M-W?
This exact variant is 8 m (26.2 ft) long.
What network speed does it support?
Ubiquiti specifies support for data rates up to 10 GbE.
Is the cable shielded?
Yes. It uses F/UTP shielding and shielded RJ45 connectors at both ends.
Can it be used outdoors?
Yes. Ubiquiti specifies an outdoor operating environment, UV resistance according to ISO 4892-2, and a TPE jacket.
What color is this variant?
The UACC-CABLE-PATCH-OUTDOOR-C6A-8M-W is the white 8 m variant.
