Detailed Specifications
Overview

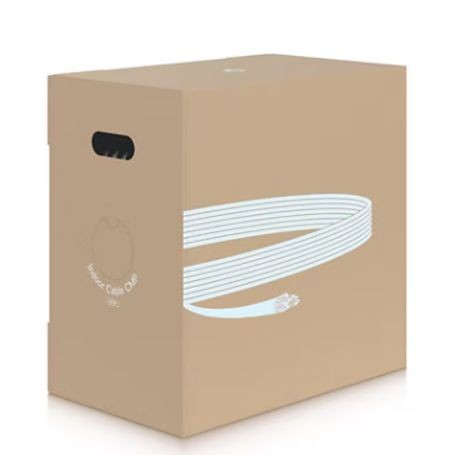

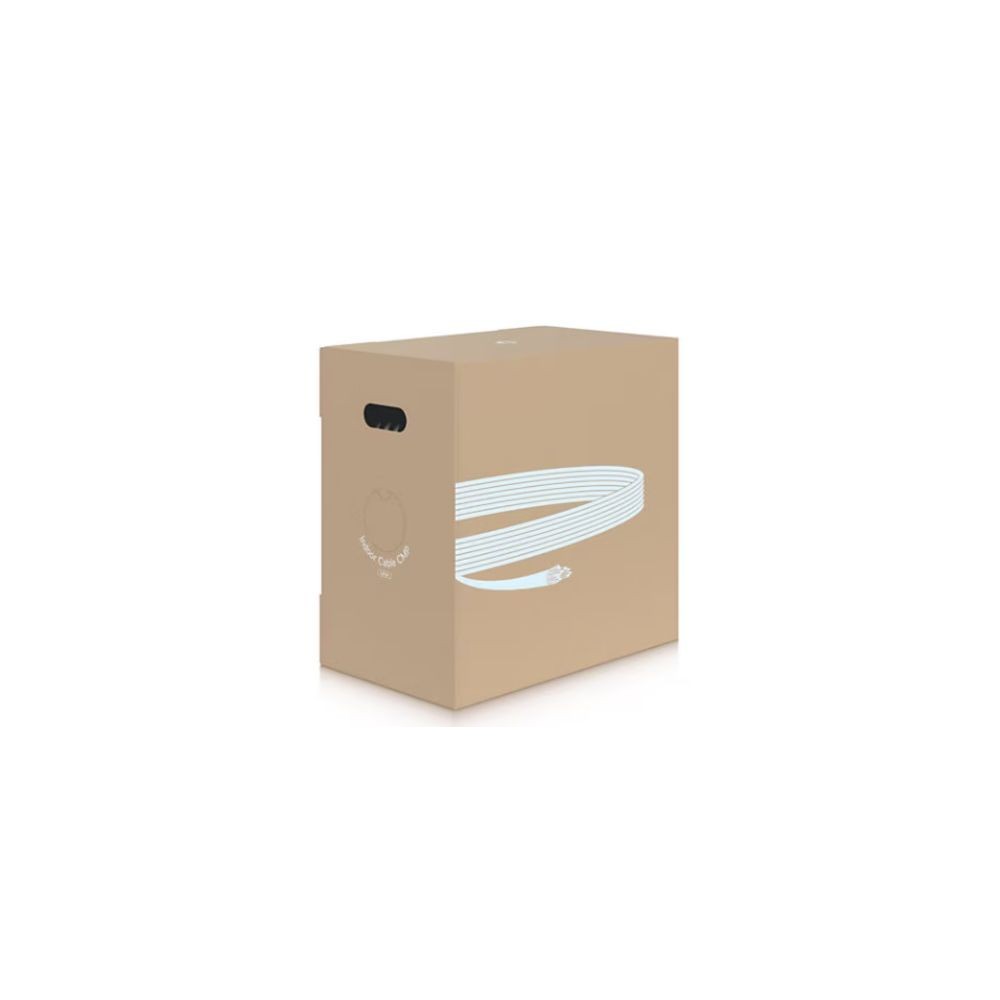

The Ubiquiti UACC-CABLE-C6A-CMP is a 305 m (1,000 ft) Category 6A Ethernet cable designed for indoor deployments requiring plenum-rated cabling. It uses a UTP construction with solid bare copper conductors and a flame-retardant PVC jacket.
Construction
The cable uses 23 AWG solid bare copper conductors arranged as four twisted pairs. An anti-crosstalk divider helps maintain pair separation, while a ripcord is provided for cable preparation during installation. The white jacket has a specified diameter of 6.7 ±0.2 mm.
Key Features
- 305 m (1,000 ft) cable length
- Category 6A UTP construction
- 23 AWG solid bare copper conductors
- CMP-rated flame-retardant PVC jacket
- Anti-crosstalk divider and ripcord
Applications
The UACC-CABLE-C6A-CMP is intended for indoor structured Ethernet cabling where Category 6A performance and CMP-rated cable construction are required.
DC Supplies Product Note
The CMP designation is important when selecting cable for installations subject to plenum-cabling requirements. This model is specified for indoor use and has a 305 m bulk cable length.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-CABLE-C6A-CMP |
| Product Type | UniFi Indoor Cable Cat6A CMP |
| Cable Length | 305 m (1,000 ft) |
| Cable Category | Category 6A |
| Shielding Type | UTP |
| Conductor Type | Solid bare copper |
| Conductor Wire Gauge | 23 AWG |
| Jacket Material | Flame-retardant polyvinyl chloride (FRPVC) |
| Jacket Color | White |
| Jacket Diameter | 6.7 ±0.2 mm |
| Flame Rating | CMP |
| Anti-Crosstalk Divider | Yes |
| Ripcord | Yes |
| Minimum Bend Radius | 26.8 mm (1.05 in) |
| Installation Temperature | 0 to 60 °C (32 to 140 °F) |
| Ambient Storage Temperature | -20 to 75 °C (-4 to 167 °F) |
| Ambient Operating Temperature | -20 to 75 °C (-4 to 167 °F) |
| Electrical Transmission Standard | ANSI/TIA-568.2-D; ISO/IEC 11801-1; IEC 61156-5 |
| Flame Test | NFPA 262 (CMP) |
| Material and Construction Standards | UL 444; CSA 22.2 No. 214; RoHS2; LVD |
FAQs
What type of cable is the UACC-CABLE-C6A-CMP?
It is a Category 6A UTP Ethernet cable with a CMP-rated flame-retardant jacket.
How much cable is supplied?
The cable length is 305 m (1,000 ft).
What conductor does it use?
It uses 23 AWG solid bare copper conductors.
Is this cable shielded?
No. Ubiquiti specifies the cable as UTP, meaning the cable has an unshielded twisted-pair construction.
What does CMP mean for this cable?
CMP is the specified plenum-rated flame classification, tested according to NFPA 262.
