Overview

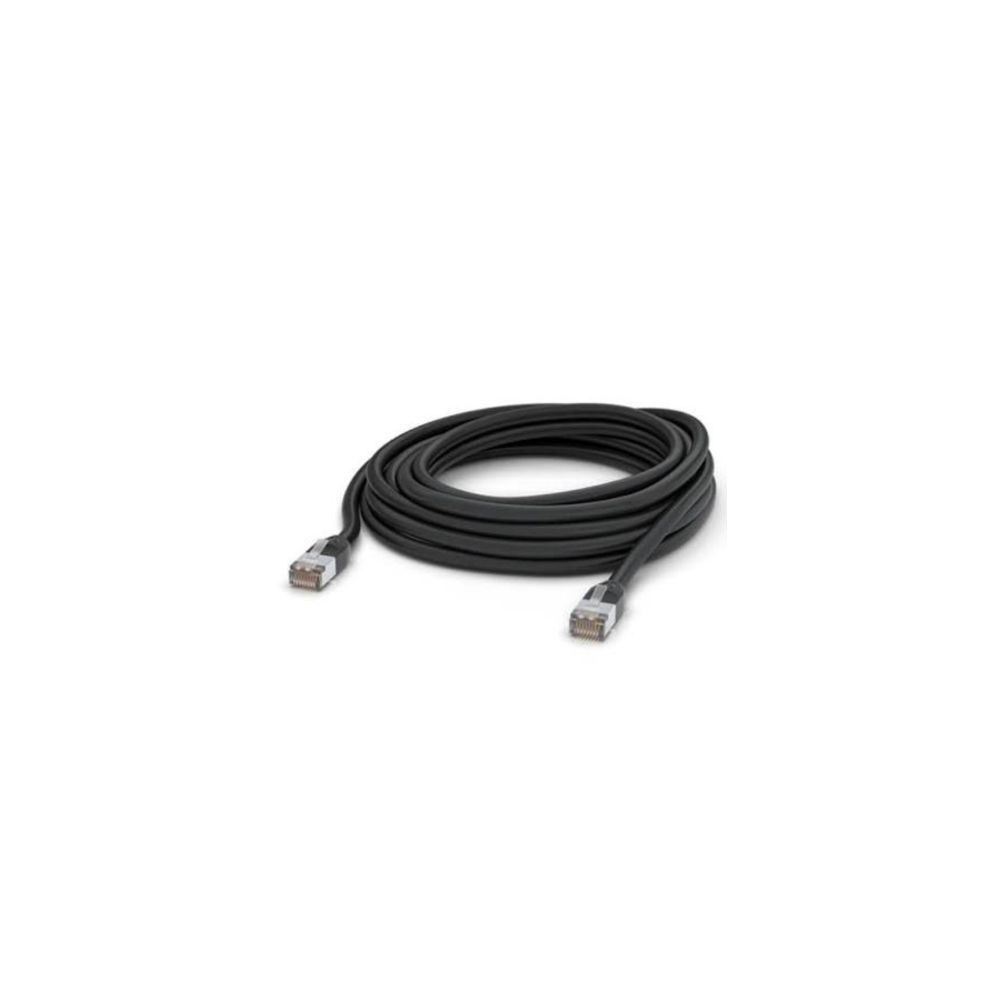

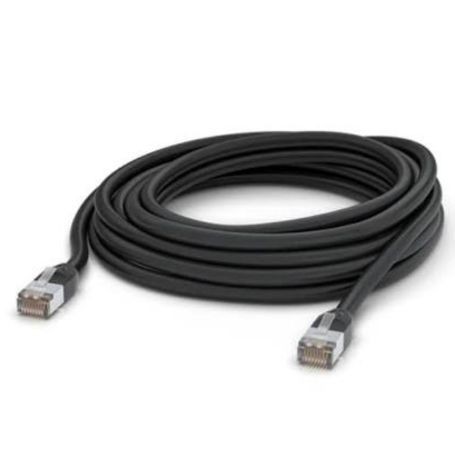

The Ubiquiti UACC-CABLE-PATCH-OUTDOOR-8M-BK is an 8-meter black outdoor patch cable designed for Ethernet connections where the cable is exposed to outdoor environmental conditions. It uses a Category 5e construction with shielded RJ45 connectors and a weather-resistant thermoplastic elastomer (TPE) jacket.
Technical Information
The cable uses stranded copper conductors with 24 AWG wire gauge and supports Gigabit Ethernet networking. Its shielded construction helps provide protection against electromagnetic interference, while the RJ45 connectors provide standard Ethernet connectivity. The cable supports PoE up to PoE+++ according to Ubiquiti's technical specifications.
Outdoor Construction
The 8-meter cable uses a 6.3 mm TPE jacket with S/FTP shielding and UV resistance tested to ASTM G 151/154. The construction is intended for outdoor installations and includes a minimum bend radius of 50.4 mm. The cable also carries a VW-1 flame rating under UL1581.
Key Features
- 8-meter cable length in black
- Category 5e construction supporting GbE
- Shielded RJ45 connectors for Ethernet connectivity
- S/FTP shielding with stranded copper conductors
- UV-resistant TPE jacket for outdoor installations
Applications
This cable can be used for outdoor Ethernet connections between compatible networking equipment, including installations where shielded connectivity and environmental protection are required. Its 8-meter length is suited to longer equipment-to-equipment connections than shorter patch cable variants.
DC Supplies Product Note
For outdoor routing, allow sufficient clearance for the specified 50.4 mm minimum bend radius rather than sharply folding the cable near the connectors or equipment ports.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-CABLE-PATCH-OUTDOOR-8M-BK |
| Product Type | Outdoor Ethernet Patch Cable |
| Product Family | UniFi Patch Cable Outdoor |
| Cable Length | 8 m |
| Color | Black |
| Cable Category | Category 5e |
| Supported Data Rate | GbE |
| Supported PoE | Up to PoE+++ |
| Connector | 2 × Shielded RJ45 |
| Shielding Type | S/FTP |
| Conductor Type | Stranded copper |
| Conductor Wire Gauge | 24 AWG |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Jacket Diameter | 6.3 mm |
| Minimum Bend Radius | 50.4 mm |
| UV Resistance | ASTM G 151/154 |
| Flame Rating | VW-1 (UL1581) |
| Standards | TIA/EIA-568-B.2; ISO/IEC 11801 |
| Installation Temperature | -20 to 60°C |
| Ambient Storage Temperature | -40 to 80°C |
| Ambient Operating Temperature | -30 to 75°C |
FAQs
What type of cable is the UACC-CABLE-PATCH-OUTDOOR-8M-BK?
It is an 8-meter Category 5e outdoor Ethernet patch cable with shielded RJ45 connectors.
Is this cable suitable for outdoor installations?
Yes. Ubiquiti specifies it for outdoor operation and provides UV resistance, a TPE jacket, and an operating temperature range of -30 to 75°C.
What Ethernet speed does it support?
The Ubiquiti technical specifications identify the UniFi Patch Cable Outdoor family as supporting GbE.
What type of connectors does it use?
The cable has two shielded RJ45 connectors for standard Ethernet connections.
What is the minimum bend radius?
The specified minimum bend radius is 50.4 mm. Installation should accommodate this radius to avoid excessive bending.
