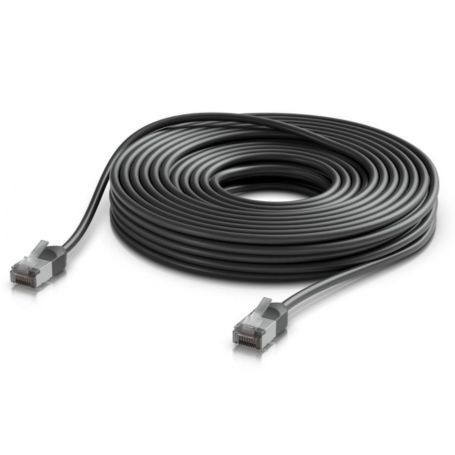

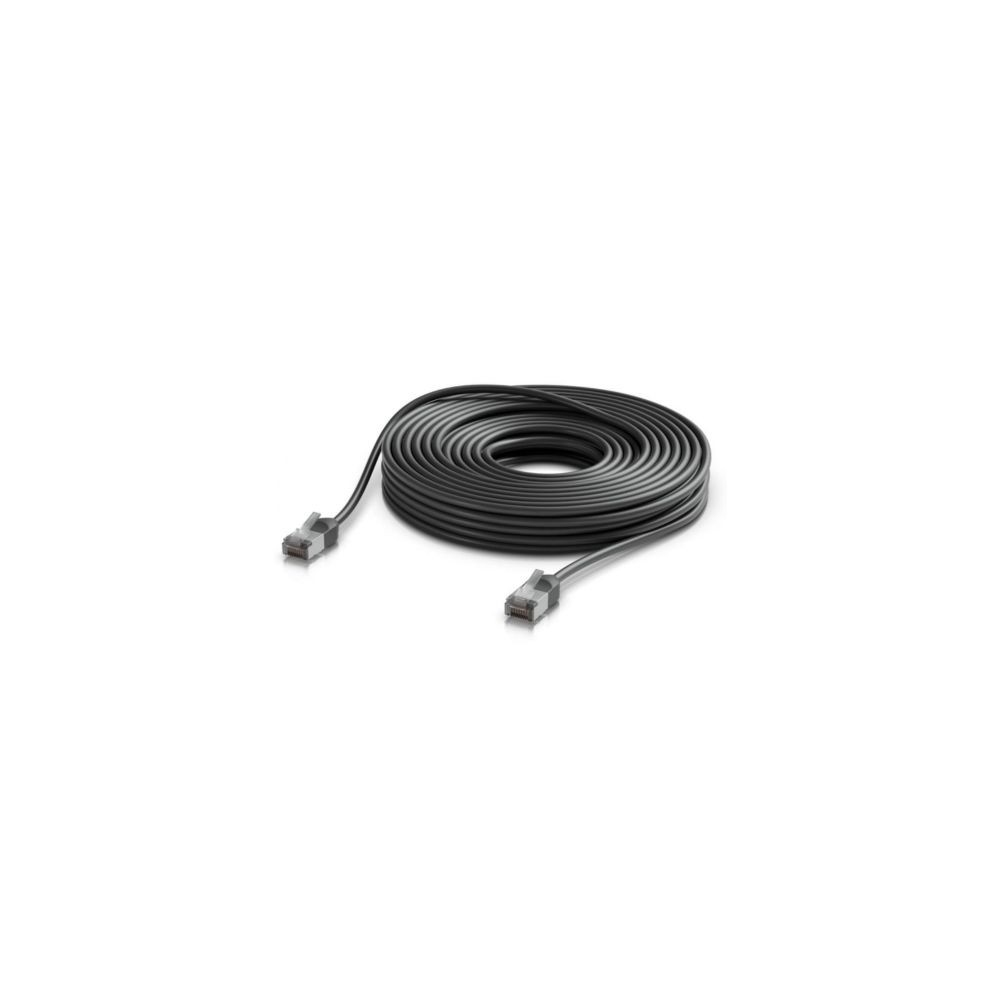

The Ubiquiti UACC-CABLE-PATCH-OUTDOOR-C6A-15M-BK is a 15 m UniFi Premium Patch Cable Outdoor designed for 10 GbE Ethernet networking in outdoor environments. It combines F/UTP shielding, shielded RJ45 connectors, stranded copper conductors, and a weather-resistant thermoplastic elastomer jacket.
Overview
This black Cat6A patch cable belongs to Ubiquiti's UniFi Premium Patch Cable Outdoor family. The 15 m length provides extended reach for outdoor network connections while retaining the family's ultra-thin construction.
Technical Information
The cable supports data rates up to 10 GbE and PoE up to PoE+++. The 15 m variant uses 32 AWG stranded copper conductors, F/UTP shielding, and two frosted booted shielded RJ45 connectors. Its jacket diameter is 3.9 mm with a minimum bend radius of 31 mm.
Outdoor Construction
The TPE jacket is specified for outdoor use and provides UV resistance according to ISO 4892-2. Internal foil shielding and a drain wire are incorporated into the cable construction, while the shielded RJ45 connectors provide the corresponding shielded interface.
Key Features
- 15 m outdoor Cat6A patch cable
- 10 GbE data-rate support
- F/UTP shielding with shielded RJ45 connectors
- 32 AWG stranded copper conductors
- UV-resistant 3.9 mm TPE outdoor jacket
Applications
The UACC-CABLE-PATCH-OUTDOOR-C6A-15M-BK is suited to outdoor Ethernet connections between compatible 10 GbE network equipment where a 15 m patch cable is required. It is intended for installations where shielded outdoor cabling is appropriate.
DC Supplies Product Note
The 15 m variant uses the larger 3.9 mm jacket diameter and 32 AWG conductors specified for the 12–15 m lengths in this family. This distinguishes it from the 1–8 m variants, which use a 3.5 mm jacket and 34 AWG conductors.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-CABLE-PATCH-OUTDOOR-C6A-15M-BK |
| Product Type | Outdoor Cat6A Ethernet Patch Cable |
| Product Family | UniFi Premium Patch Cable Outdoor |
| Cable Length | 15 m (49.2 ft) |
| Color | Black |
| Supported Data Rate | 10 GbE |
| Supported PoE Type | Up to PoE+++ |
| Connector | 2 × frosted booted shielded RJ45 |
| Operating Environment | Outdoor |
| Shielding Type | F/UTP |
| Conductor Type | Stranded copper |
| Conductor Wire Gauge | 32 AWG |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Jacket Diameter | 3.9 mm (0.15 in) |
| Minimum Bend Radius | 31 mm (1.22 in) |
| UV Resistance | ISO 4892-2 |
| Flame Rating | VW-1 (UL1581) |
| Standards | TIA/EIA-568-B.2; ISO/IEC 11801 |
| Installation Temperature | -20 to 60°C (-4 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operating Temperature | -20 to 60°C (-4 to 140°F) |
FAQs
What is the UACC-CABLE-PATCH-OUTDOOR-C6A-15M-BK?
It is a 15 m UniFi Premium Patch Cable Outdoor designed for shielded 10 GbE Ethernet networking in outdoor environments.
What Ethernet speed does this cable support?
Ubiquiti specifies a supported data rate of 10 GbE for this product family.
Does the cable support PoE?
Yes. The specified supported PoE type is up to PoE+++.
What shielding does the cable use?
The cable uses F/UTP shielding and has frosted booted shielded RJ45 connectors.
How does the 15 m version differ from shorter variants?
The 15 m version uses a 3.9 mm jacket, 32 AWG conductors, and a 31 mm minimum bend radius. The 1–8 m variants use a 3.5 mm jacket, 34 AWG conductors, and a 28 mm minimum bend radius.
