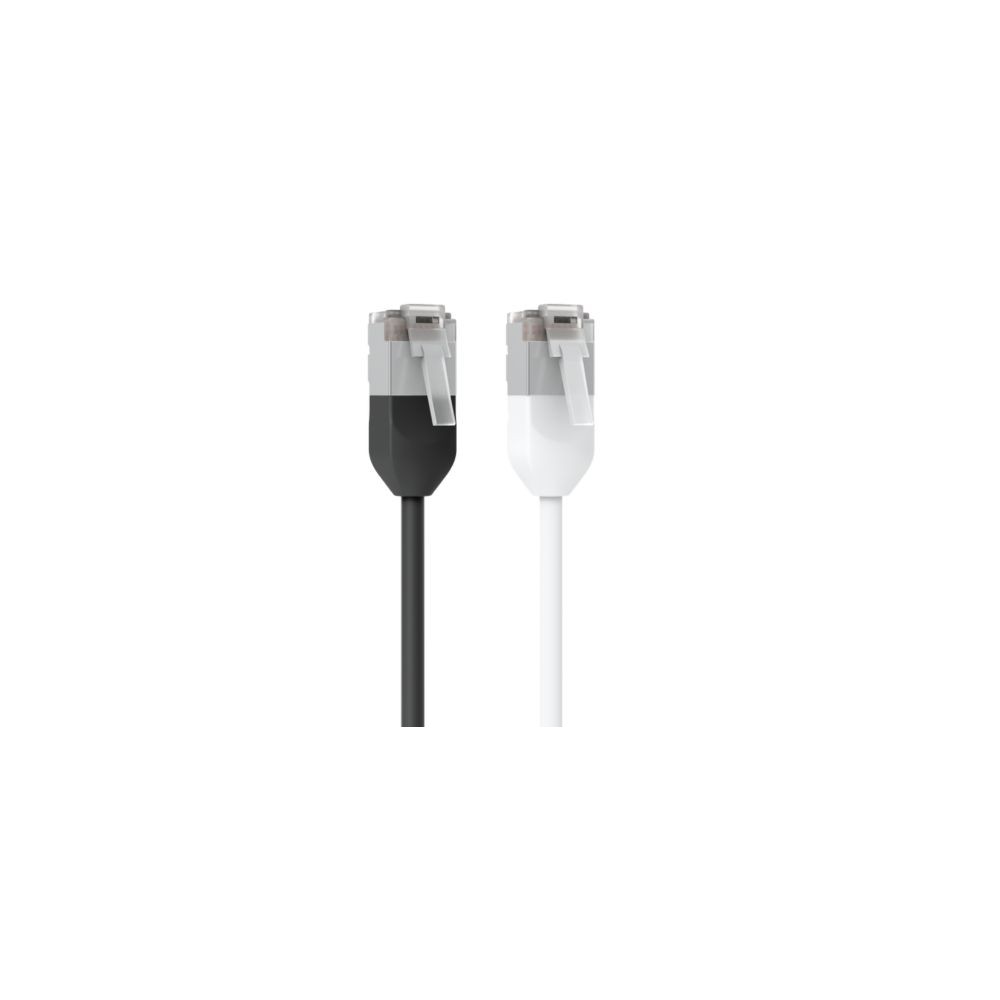

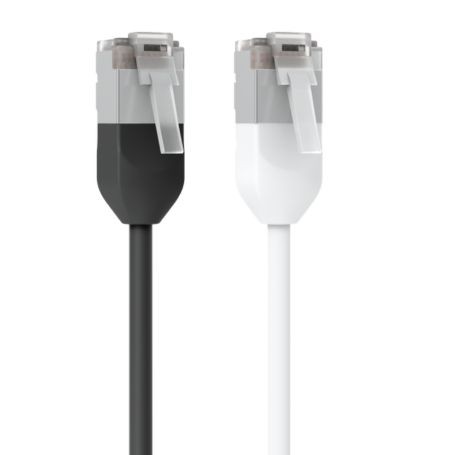

The Ubiquiti UACC-CABLE-PATCH-OUTDOOR-C6A-1M-BK is a 1 m UniFi Premium Patch Cable Outdoor designed for rugged outdoor 10 GbE networking. It combines a thermoplastic elastomer jacket with F/UTP shielding and shielded RJ45 connectors for outdoor Ethernet connections.
Outdoor Ethernet Connectivity
This Cat6A patch cable provides pre-terminated RJ45 connectivity for compatible Ethernet equipment. The 1 m end-to-end length is suited to short outdoor connections while supporting data rates up to 10 GbE and PoE up to PoE+++.
Weather-Resistant Construction
The cable uses a thermoplastic elastomer jacket with internal foil shielding and a drain wire for increased protection against ESD damage. Ubiquiti specifies UV resistance according to ISO4892-2, making the cable suitable for outdoor network installations.
Connector and Cable Design
The cable is fitted with two frosted booted shielded RJ45 connectors. Its 3.5 mm jacket diameter and 34 AWG stranded copper conductors provide a compact cable construction for the 1–8 m length range.
Key Features
- 1 m end-to-end Cat6A outdoor patch cable
- Supports data rates up to 10 GbE
- F/UTP shielding with internal foil and drain wire
- UV-resistant thermoplastic elastomer jacket
- Supports PoE up to PoE+++
Applications
The UACC-CABLE-PATCH-OUTDOOR-C6A-1M-BK is intended for outdoor Ethernet connections between compatible RJ45 network equipment. Its rugged construction is suited to exposed network links where UV resistance, shielding, and an outdoor-rated cable design are required.
DC Supplies Product Note
The 1 m version belongs to Ubiquiti's 1–8 m length range and uses a 3.5 mm jacket diameter, 34 AWG stranded copper conductors, and a minimum 28 mm bend radius. These dimensions should be considered when planning routing and cable management.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-CABLE-PATCH-OUTDOOR-C6A-1M-BK |
| Product Type | Cat6A Outdoor Ethernet Patch Cable |
| Product Family | UniFi Premium Patch Cable Outdoor |
| Cable Length | 1 m |
| Color | Black |
| Supported Data Rate | 10 GbE |
| Supported PoE Type | Up to PoE+++ |
| Connectors | 2 × frosted booted shielded RJ45 |
| Operating Environment | Outdoor |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Jacket Diameter | 3.5 mm |
| Shielding Type | F/UTP |
| Conductor Type | Stranded copper |
| Conductor Wire Gauge | 34 AWG |
| Minimum Bend Radius | 28 mm |
| UV Resistance | ISO4892-2 |
| Flame Rating | VW-1 (UL1581) |
| Standards | TIA/EIA-568-B.2; ISO/IEC 11801 |
| Installation Temperature | -20 to 60°C |
| Ambient Storage Temperature | -40 to 85°C |
| Ambient Operating Temperature | -20 to 60°C |
| Pack Quantity | Single Unit |
FAQs
What is the cable length?
The UACC-CABLE-PATCH-OUTDOOR-C6A-1M-BK has an end-to-end length of 1 metre.
Does it support 10 GbE?
Yes. Ubiquiti specifies support for data rates up to 10 GbE.
Is this cable designed for outdoor use?
Yes. Ubiquiti specifies the operating environment as outdoor and provides UV resistance according to ISO4892-2.
What type of shielding does the cable use?
The cable uses F/UTP construction with internal foil shielding and a drain wire.
Does it support PoE?
Yes. Ubiquiti specifies support for PoE up to PoE+++.
