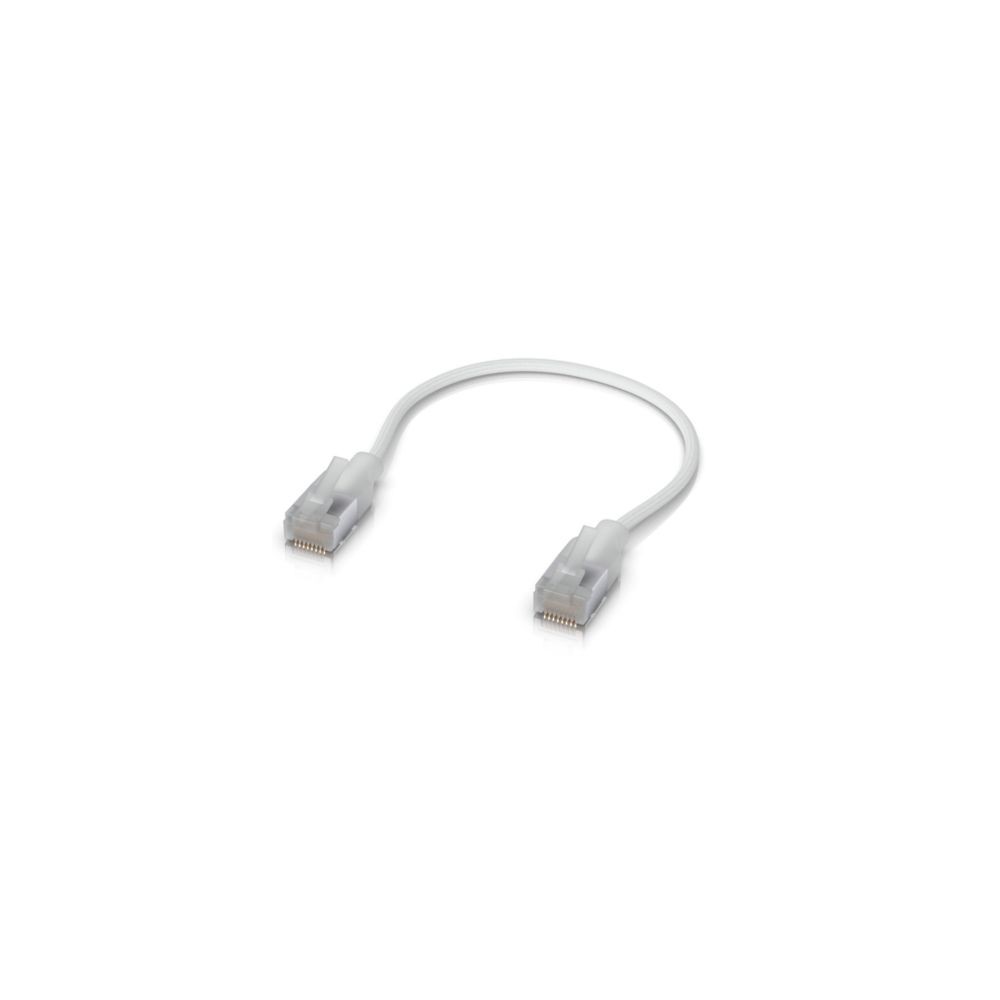

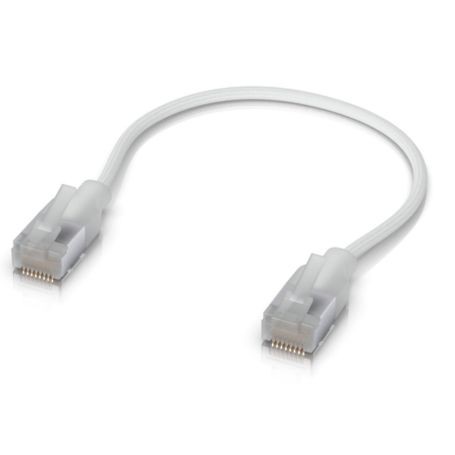

The Ubiquiti UACC-CABLE-PATCH-EL-C6A-0.15M-W-24 is a 24-pack of 0.15 m UniFi Premium Patch Cables designed and optimized for 10 GbE networking. Each ultra-thin cable features a braided thermoplastic elastomer jacket and translucent booted shielded RJ45 connectors designed for optimal Etherlighting brightness on compatible Ubiquiti equipment.
Ethernet Connectivity
Each 0.15 m cable provides pre-terminated RJ45 connectivity for compatible Ethernet equipment. The short end-to-end length is suited to compact indoor connections between closely positioned network devices, while supporting data rates up to 10 GbE and PoE up to PoE+++.
Construction and Routing
The cables use a braided thermoplastic elastomer jacket with a 3 mm outer diameter. The 0.15 m version uses 34 AWG stranded copper conductors, UTP construction, and a minimum bend radius of 24 mm for compact cable routing.
Etherlighting Connector Design
Each cable has two translucent booted shielded RJ45 connectors. The translucent boot design is intended to provide optimal Etherlighting brightness when connected to compatible Ubiquiti equipment.
Key Features
- 24 individual 0.15 m Cat6A patch cables
- Supports data rates up to 10 GbE
- Translucent booted shielded RJ45 connectors for Etherlighting
- 3 mm braided TPE jacket with 34 AWG stranded copper conductors
- Supports PoE up to PoE+++
Applications
The UACC-CABLE-PATCH-EL-C6A-0.15M-W-24 is intended for indoor Ethernet connections where very short cable runs are required, such as connections within network racks, between adjacent network devices, and in compact patching environments.
DC Supplies Product Note
This specific MPN is the 24-pack variant of the 0.15 m cable. The 24-pack configuration is distinct from Ubiquiti's single-unit and other multi-pack variants, while retaining the same 0.15 m cable construction and performance specifications.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-CABLE-PATCH-EL-C6A-0.15M-W-24 |
| Product Type | Cat6A Ethernet Patch Cable 24-Pack |
| Product Family | UniFi Premium Patch Cable |
| Cable Length | 0.15 m per cable |
| Pack Quantity | 24 cables |
| Color | White |
| Supported Data Rate | 10 GbE |
| Supported PoE Type | Up to PoE+++ |
| Connectors | 2 × translucent booted shielded RJ45 per cable |
| Operating Environment | Indoor |
| Jacket Material | Thermoplastic elastomer (TPE) & braided |
| Jacket Diameter | 3 mm |
| Shielding Type | UTP |
| Conductor Type | Stranded copper |
| Conductor Wire Gauge | 34 AWG |
| Minimum Bend Radius | 24 mm |
| Flame Rating | VW-1 (UL1581) |
| Standards | TIA/EIA-568-B.2; ISO/IEC 11801 |
| Installation Temperature | -20 to 60°C |
| Ambient Storage Temperature | -20 to 75°C |
| Ambient Operating Temperature | -20 to 60°C |
FAQs
How many cables are included?
This MPN specifies a 24-pack containing 24 individual 0.15 m patch cables.
What is the length of each cable?
Each cable has an end-to-end length of 0.15 m.
Does the cable support 10 GbE?
Yes. Ubiquiti specifies support for data rates up to 10 GbE.
Does it support PoE?
Yes. Ubiquiti specifies support for PoE up to PoE+++.
Is this cable intended for outdoor installation?
No. Ubiquiti specifies the operating environment as indoor.
What connectors are used?
Each cable has two translucent booted shielded RJ45 connectors designed for optimal Etherlighting brightness on compatible equipment.
