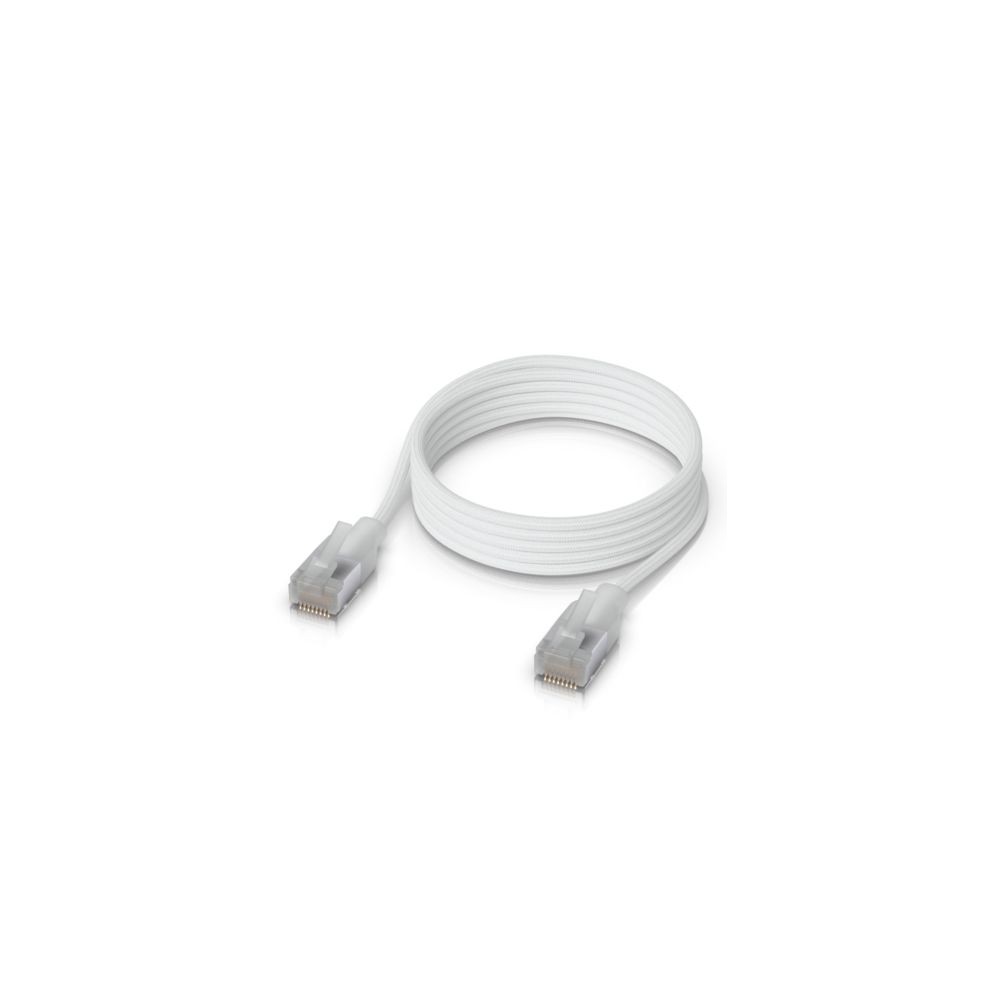

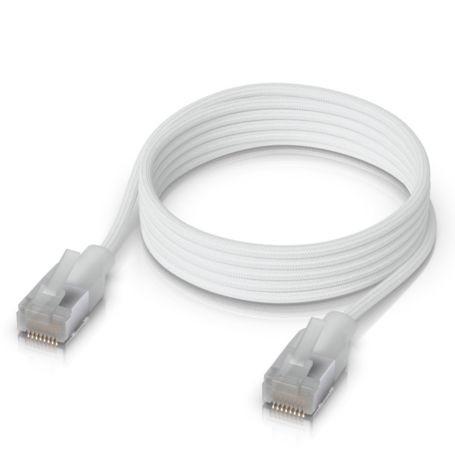

The Ubiquiti UACC-CABLE-PATCH-EL-C6A-5M-W is a 5 m UniFi Premium Patch Cable designed and optimized for 10 GbE networking. It combines a braided thermoplastic elastomer jacket with translucent booted shielded RJ45 connectors designed for optimal Etherlighting brightness on compatible Ubiquiti equipment.
Ethernet Connectivity
This Cat6A patch cable provides pre-terminated RJ45 connectivity for compatible Ethernet equipment. Its 5 m end-to-end length provides additional reach for indoor connections while supporting data rates up to 10 GbE and PoE up to PoE+++.
Construction and Routing
The cable uses a braided thermoplastic elastomer jacket and stranded copper conductors. The 5 m version has a 3 mm jacket diameter, a minimum bend radius of 24 mm, and UTP cable construction for indoor networking applications.
Etherlighting Connector Design
The two translucent booted shielded RJ45 connectors are designed to provide optimal brightness for Etherlighting effects when connected to compatible Ubiquiti equipment.
Key Features
- 5 m end-to-end Cat6A patch cable
- Supports data rates up to 10 GbE
- Translucent booted shielded RJ45 connectors for Etherlighting
- Braided TPE jacket with a 3 mm outer diameter
- Supports PoE up to PoE+++
Applications
The UACC-CABLE-PATCH-EL-C6A-5M-W is intended for indoor Ethernet connections between compatible RJ45 network equipment, including switches, gateways, access points, patch panels, and other network devices.
DC Supplies Product Note
The 5 m version falls within Ubiquiti's 0.15–8 m length range, using a 3 mm jacket diameter, 34 AWG stranded copper conductors, and a minimum 24 mm bend radius. These dimensions are useful when planning cable routing and cable management.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-CABLE-PATCH-EL-C6A-5M-W |
| Product Type | Cat6A Ethernet Patch Cable |
| Product Family | UniFi Premium Patch Cable |
| Cable Length | 5 m |
| Color | White |
| Supported Data Rate | 10 GbE |
| Supported PoE Type | Up to PoE+++ |
| Connectors | 2 × translucent booted shielded RJ45 |
| Operating Environment | Indoor |
| Jacket Material | Thermoplastic elastomer (TPE) & braided |
| Jacket Diameter | 3 mm |
| Shielding Type | UTP |
| Conductor Type | Stranded copper |
| Conductor Wire Gauge | 34 AWG |
| Minimum Bend Radius | 24 mm |
| Flame Rating | VW-1 (UL1581) |
| Standards | TIA/EIA-568-B.2; ISO/IEC 11801 |
| Installation Temperature | -20 to 60°C |
| Ambient Storage Temperature | -20 to 75°C |
| Ambient Operating Temperature | -20 to 60°C |
| Pack Quantity | Single Unit |
FAQs
What is the cable length?
The UACC-CABLE-PATCH-EL-C6A-5M-W has an end-to-end cable length of 5 metres.
Does this cable support 10 GbE?
Yes. Ubiquiti specifies support for data rates up to 10 GbE.
Does it support PoE?
Yes. Ubiquiti specifies support for PoE up to PoE+++.
Is the cable suitable for outdoor installation?
No. The specified operating environment is indoor.
What type of connectors does it use?
It uses two translucent booted shielded RJ45 connectors designed for optimal Etherlighting brightness on compatible equipment.
