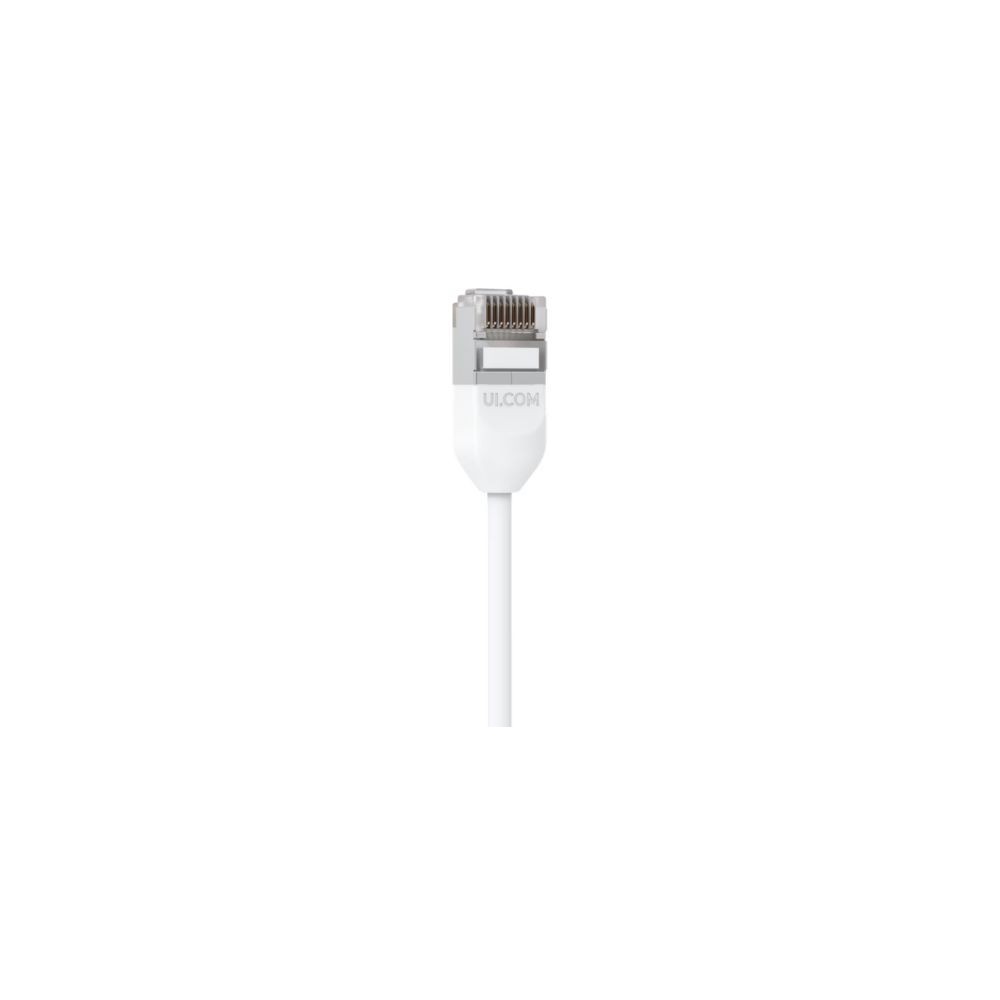

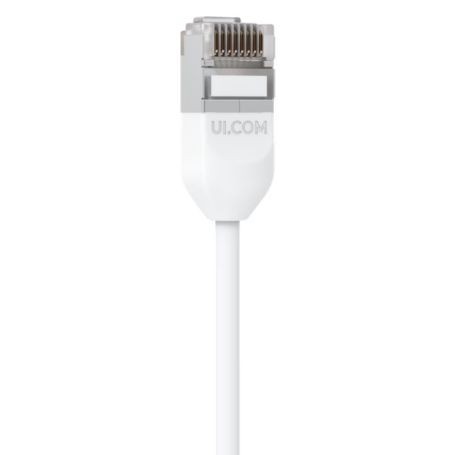

The Ubiquiti UACC-CABLE-PATCH-OUTDOOR-C6A-12M-W is a 12 m UniFi Premium Patch Cable Outdoor designed for Ethernet connections in outdoor environments. It features a thermoplastic elastomer jacket, stranded copper conductors, shielded RJ45 connectors, internal foil shielding, and a drain wire. Ubiquiti specifies support for data rates up to 10 GbE and PoE up to PoE+++.
Outdoor Ethernet Connectivity
This Cat6A patch cable provides pre-terminated RJ45 connectivity for compatible Ethernet equipment. With a 12 m end-to-end length, it can be used where a longer outdoor patch connection is required between compatible network devices.
Outdoor Construction
The cable uses a weather-resistant thermoplastic elastomer jacket and is specified for outdoor operation. Its internal foil shielding and drain wire provide additional protection against electrostatic discharge effects, while the cable's UV resistance is specified according to ISO 4892-2.
Key Features
- 12 m end-to-end Cat6A outdoor patch cable
- Supports data rates up to 10 GbE
- Shielded RJ45 connectors with frosted booted construction
- 3.9 mm TPE jacket designed for outdoor use and UV resistance
- Supports PoE up to PoE+++ with F/UTP shielding construction
Applications
The UACC-CABLE-PATCH-OUTDOOR-C6A-12M-W is intended for outdoor Ethernet connections where a 12 m pre-terminated cable is suitable. It can be used to connect compatible RJ45 network equipment while maintaining a shielded Cat6A connection.
DC Supplies Product Note
The 12 m version uses a 3.9 mm jacket diameter and has a specified minimum bend radius of 31 mm. These dimensions should be considered when planning cable routing, particularly around outdoor equipment and mounting points.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-CABLE-PATCH-OUTDOOR-C6A-12M-W |
| Product Type | Cat6A Outdoor Ethernet Patch Cable |
| Product Family | UniFi Premium Patch Cable Outdoor |
| Cable Length | 12 m (39.4 ft), end-to-end |
| Color | White |
| Supported Data Rate | Up to 10 GbE |
| Supported PoE Type | Up to PoE+++ |
| Connectors | 2 × frosted booted shielded RJ45 |
| Environment | Outdoor |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Jacket Diameter | 3.9 mm (0.15 in) |
| Shielding Type | F/UTP |
| Conductor Type | Stranded copper |
| Conductor Wire Gauge | 32 AWG |
| Anti-Crosstalk Divider | Aluminum foil |
| Minimum Bend Radius | 31 mm (1.2 in) |
| UV Resistance | ISO 4892-2 |
| Flame Rating | VW-1 (UL1581) |
| Standards | TIA/EIA-568-B.2; ISO/IEC 11801 |
| Installation Temperature | -20 to 60°C (-4 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Operating Temperature | -20 to 60°C (-4 to 140°F) |
| NDAA Compliant | Yes |
| UPC | 810084698563 |
Frequently Asked Questions
What is the length of the UACC-CABLE-PATCH-OUTDOOR-C6A-12M-W?
The cable is 12 m (39.4 ft) long from end to end.
What Ethernet speed does this cable support?
Ubiquiti specifies support for data rates up to 10 GbE.
Can this cable be used outdoors?
Yes. The exact model is specified for outdoor use and has UV resistance according to ISO 4892-2.
What connectors are fitted to the cable?
Both ends use frosted booted, shielded RJ45 connectors.
Does the cable support PoE?
Yes. Ubiquiti specifies support for PoE up to PoE+++.
What is the minimum bend radius?
The specified minimum bend radius for the 12–15 m cable lengths is 31 mm.
