Detailed Specifications

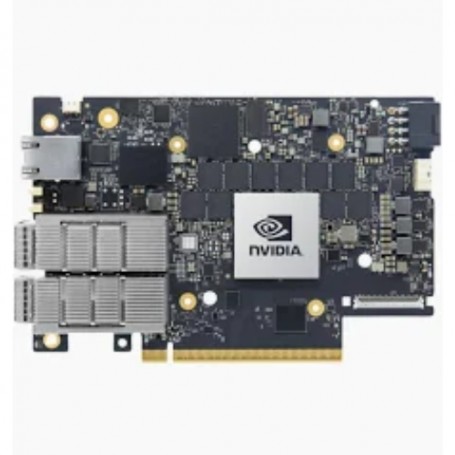

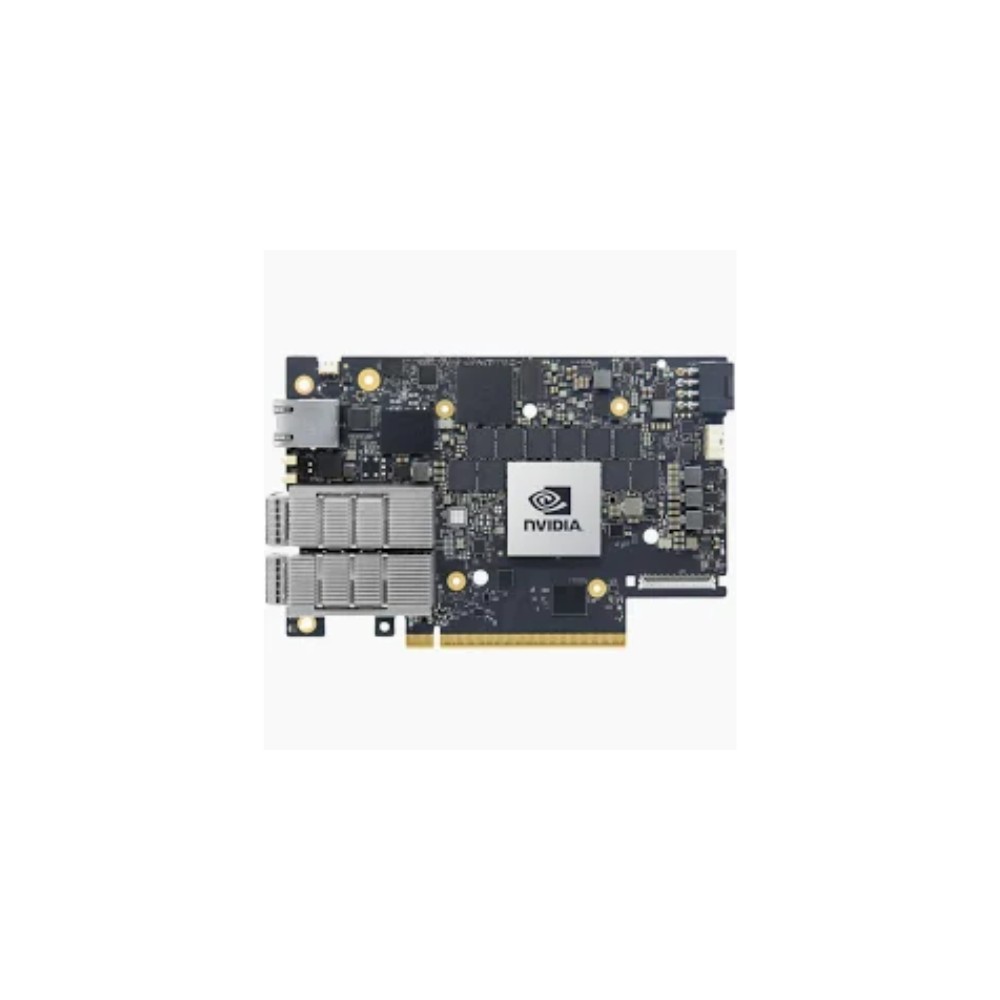

Nvidia 900-9D3C6-00CV-DA0 BlueField 3 E Series PCIe Storage Controller
Overview :
The Nvidia 900-9D3C6-00CV-DA0 is a BlueField-3 E-Series FHHL storage controller card used by infrastructure and storage engineers to offload and accelerate data-centric workloads. It provides dual high-speed ports supporting 200 GbE Ethernet in default mode or NDR200 InfiniBand, with onboard compute to handle storage, security, and networking tasks. The card fits a PCIe Gen5.0 x16 slot and offers integrated baseboard management for remote monitoring and control. It suits enterprise and hyperscale data centers where secure, programmable data processing is required.
Key Features :
Dual QSFP112 ports for 200GbE/NDR200
PCIe Gen5.0 x16 host interface
48 GB on-board DDR5 ECC memory
Integrated BMC with crypto/Secure Boot
Technical Specifications :
| Specification | Detail |
|---|
| Brand | Nvidia |
| Part Number | 900-9D3C6-00CV-DA0 |
| Product Type | BlueField-3 E-Series FHHL Storage Controller |
| Default Network Speed | 200 GbE (Ethernet) |
| InfiniBand Support | NDR200 |
| Port Type | Dual QSFP112 |
| PCIe Interface | Gen5.0 x16 |
| On-Board Memory | 48 GB DDR5 ECC |
| ARM Cores | 16 cores |
| Integrated Management | BMC with crypto/Secure Boot support |
| Form Factor | FHHL (Full Height Half Length) |
| Heatsink Dimensions | 139.6 × 92.7 × 10.2 mm |
| Card Dimensions | 111.15 × 167.65 mm |
