Detailed Specifications

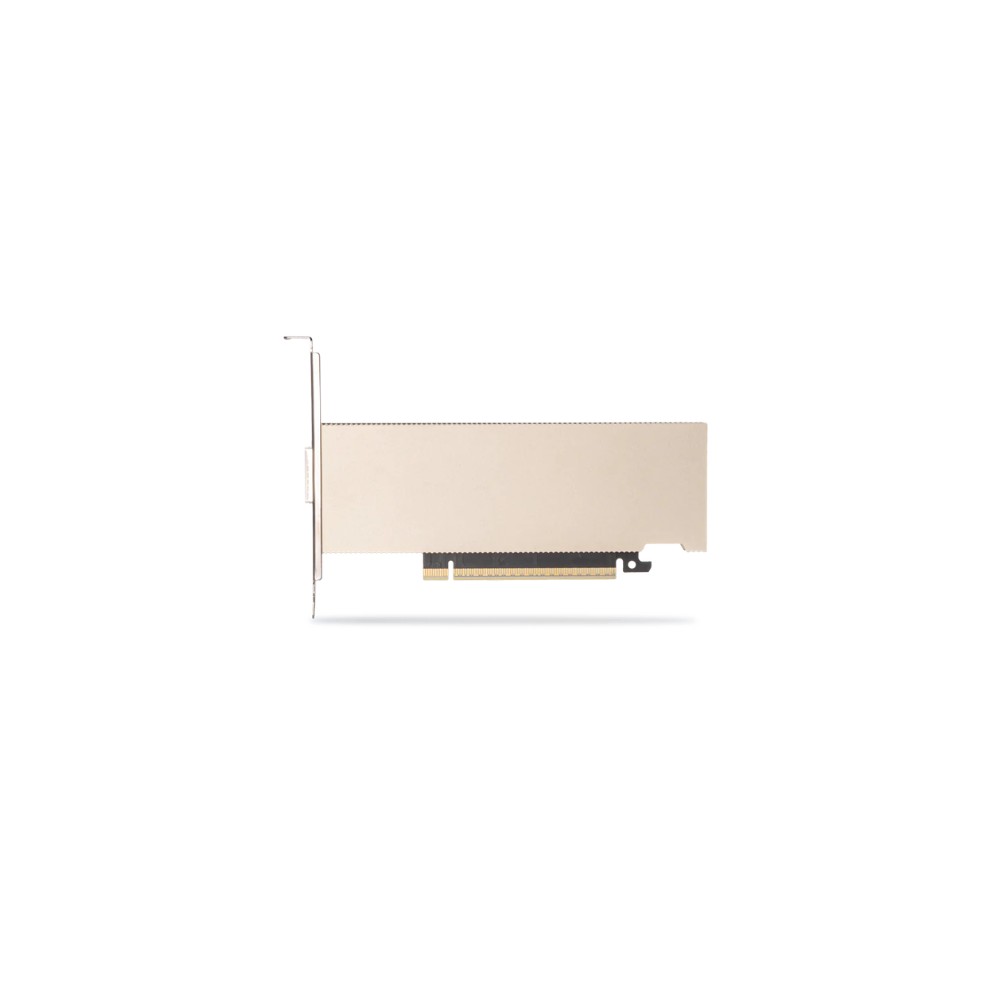

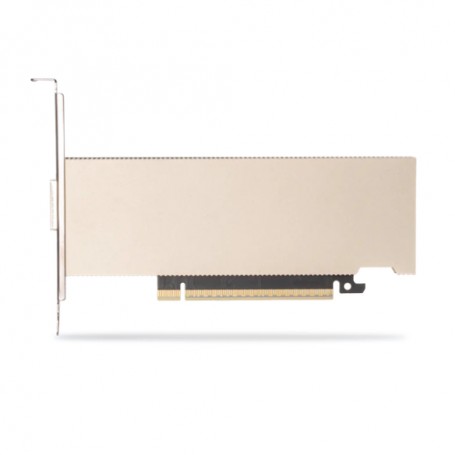

NVIDIA 900-9X81E-00EX-DT0 ConnectX 8 SuperNIC Adapter
Overview :
The NVIDIA 900-9X81E-00EX-DT0 is a ConnectX-8 SuperNIC host bus adapter for high-throughput network environments. It provides up to 800 Gb/s bi-protocol connectivity over a single OSFP port, supporting both InfiniBand and Ethernet traffic. The card fits into a PCIe Gen6 x16 slot and can offload RDMA, security, and congestion-management functions from the host CPU. It's intended for data centers, HPC, cloud platforms, and AI cluster deployments. This model includes downstream PCIe switch extension capability for flexible expansion.
Key Features :
800 Gb/s single OSFP network port
Dual-protocol: InfiniBand & Ethernet
PCI Express Gen6 x16 host interface
Downstream PCIe switch option
Technical Specifications :
| Specification | Value |
|---|
| Brand | NVIDIA |
| Part Number | 900-9X81E-00EX-DT0 |
| Product Type | ConnectX-8 SuperNIC Adapter |
| Network Bandwidth | 800 Gb/s |
| Supported Protocols | InfiniBand, Ethernet |
| Host Interface | PCI Express Gen6 x16 |
| Port Type | 1× OSFP |
| Expansion Option | Downstream PCIe switch (DSP) |
| Form Factor | Half-Height, Half-Length (HHHL) |
| RDMA Support | Yes |
| Security Offload | IPsec/MACsec/Secure Boot |
| Operating Systems | Linux, Windows |
| Environmental Compliance | RoHS compliant |
