Detailed Specifications
NVIDIA 930-9XAX6-0025-000 SocketDirect PCIe Auxiliary Kit
Overview :

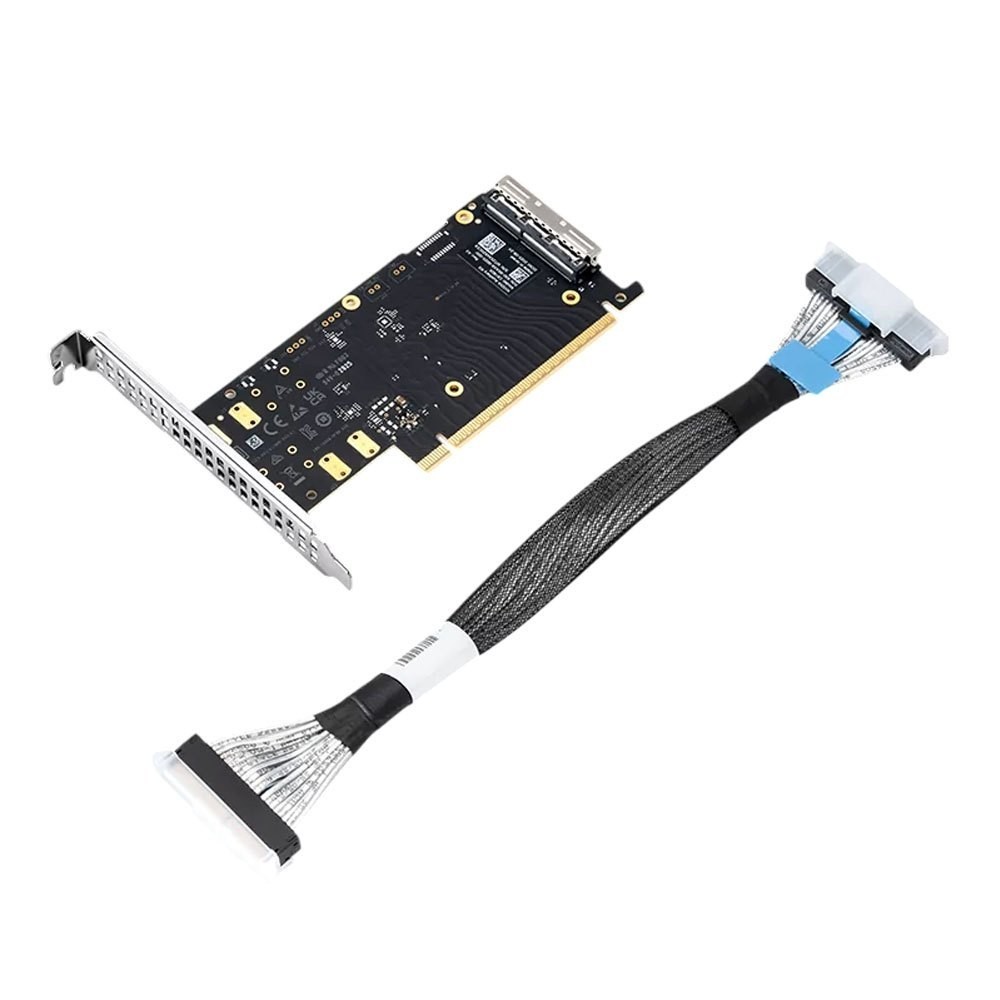

The NVIDIA 930-9XAX6-0025-000 is a SocketDirect auxiliary kit designed for use with NVIDIA SuperNIC deployments in dual-socket servers. It enables an additional PCIe Gen6 x16 connection, allowing each CPU to access the network interface directly for balanced throughput and reduced latency. The kit includes an auxiliary PCIe connection card and MCIO harness to split a 32-lane PCIe bus into two x16 links. It is typically deployed in high-performance computing, AI, and data center environments requiring direct CPU-to-NIC connectivity.
Key Features :
Enables secondary PCIe Gen6 x16 connectivity
Supports SocketDirect dual-CPU architectures
Includes 250 mm MCIO interconnect harness
Splits x32 bus into dual x16 interfaces
Technical Specifications :
| Specification | Details |
|---|
| Brand | NVIDIA |
| Part Number | 930-9XAX6-0025-000 |
| Product Type | SocketDirect PCIe auxiliary kit |
| Compatibility | NVIDIA ConnectX SuperNIC platforms |
| PCIe Interface | PCIe Gen6 x16 auxiliary connection |
| Bus Configuration | Splits x32 into dual x16 links |
| Cable Type | MCIO harness |
| Cable Length | 250 mm |
| Deployment Model | Dual-socket server architectures |
| Form Factor | Auxiliary PCIe connection card |
| Installation | Requires two PCIe x16 slots |
| Connectivity Purpose | Direct CPU-to-NIC access |
| Use Case | HPC, AI, data center networking |
