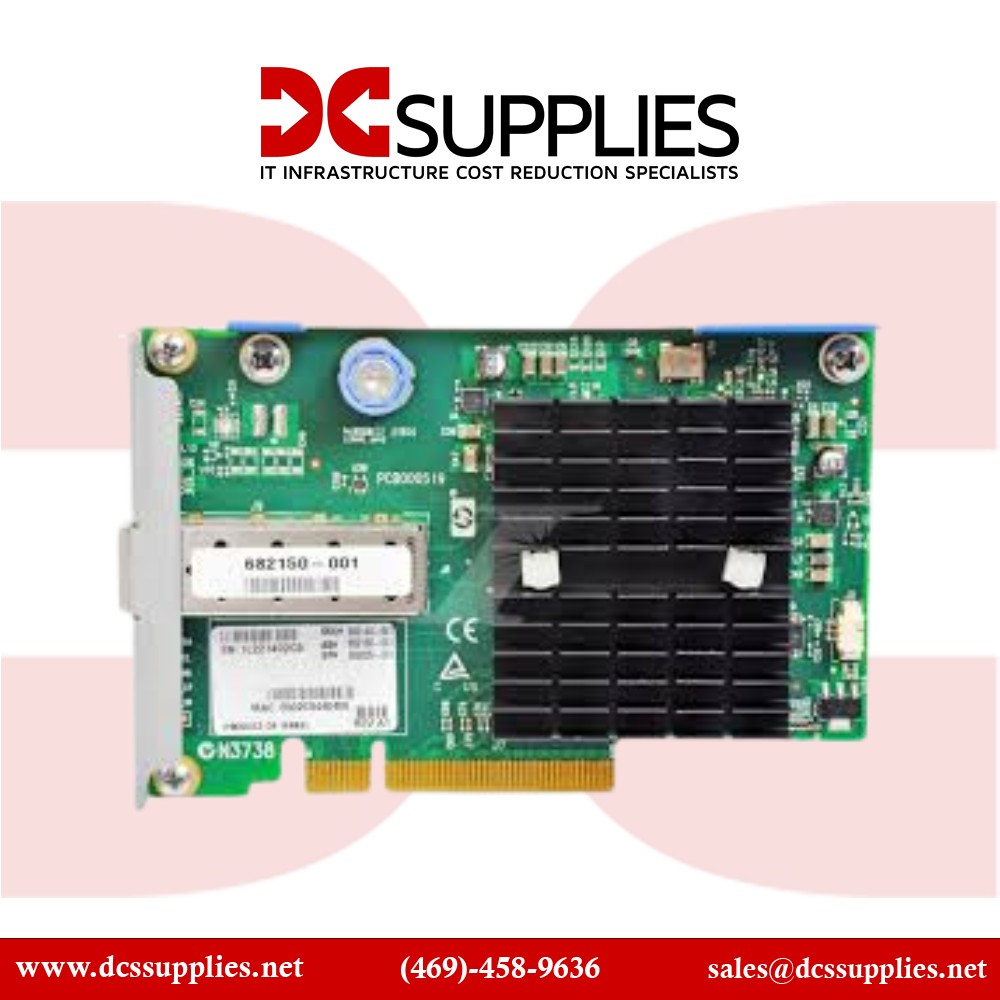

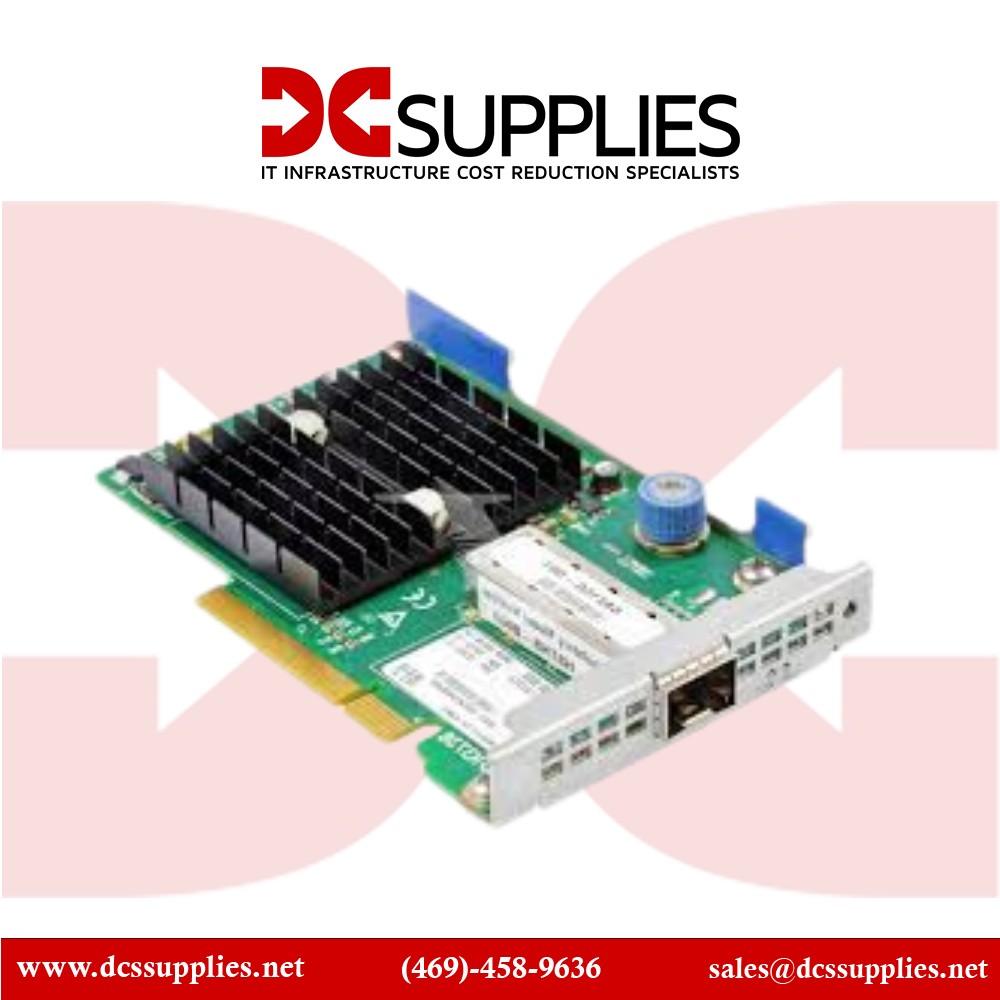

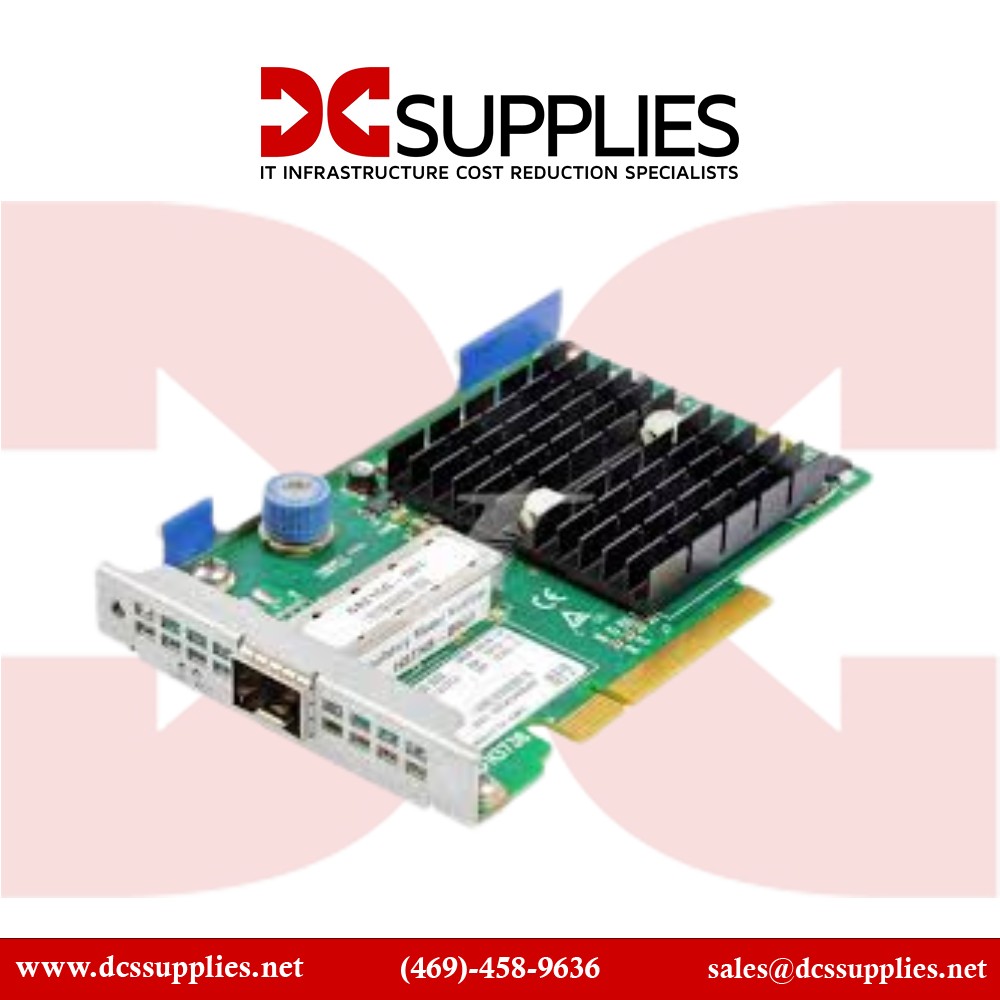

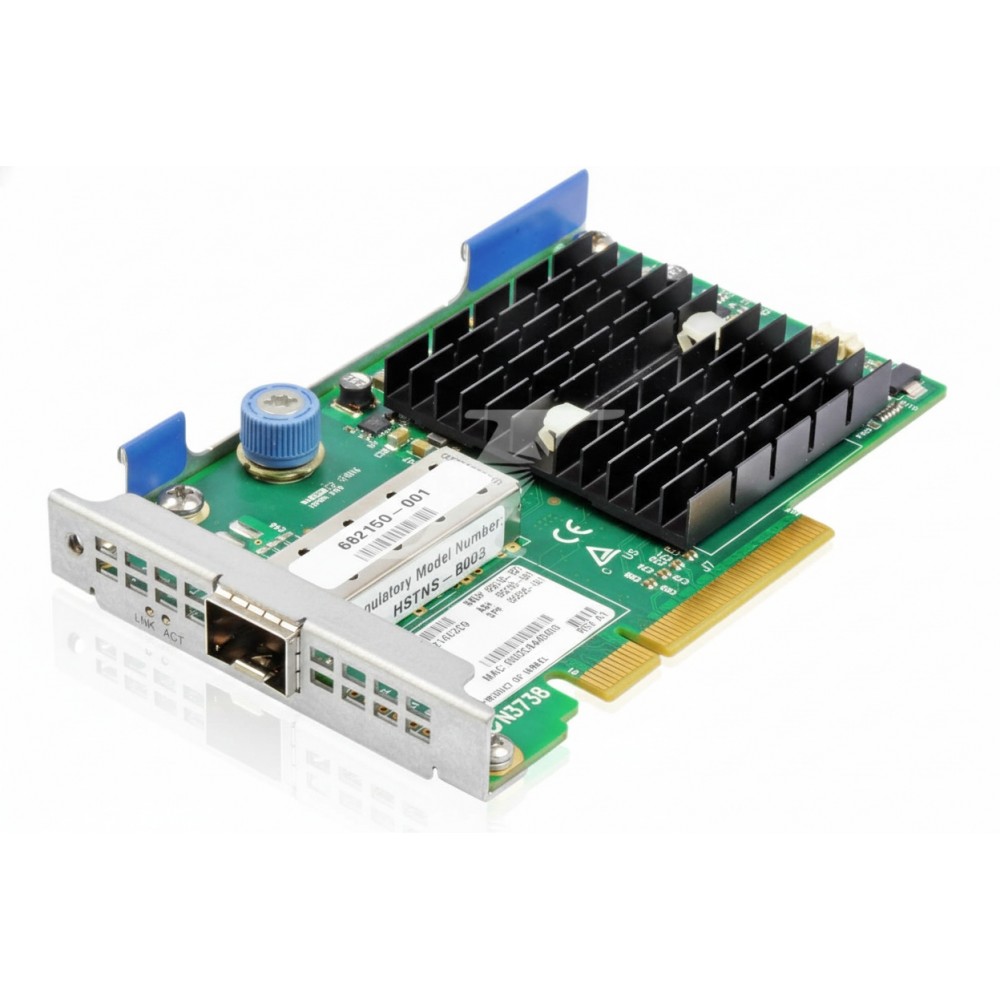

HPE 682148-B21 Mellanox 10gb 1p Sfp+ Cx3 Alom Network Card View larger

HPE 682148-B21 Mellanox ConnectX‑3 CX3 ALOM 10 Gb 1‑Port SFP+ Network Adapter

New

Single‑port 10 Gb/s SFP+ FlexibleLOM adapter
×




  • New
  • Refurbished

Detailed Specifications

HPE 682148‑B21 10 Gb SFP+ FlexibleLOM Network Adapter

Overview

The HPE 682148‑B21 is a single‑port 10 Gigabit Ethernet adapter in FlexibleLOM form‑factor designed for supported HPE ProLiant blade or rack servers. It delivers full 10 Gb throughput via an SFP+ interface and connects through a PCI Express 3.0 x8 link, making it suitable for high‑bandwidth server uplinks, virtualised environments and storage‑traffic offload. Because it occupies a dedicated FlexibleLOM slot rather than a standard PCIe expansion slot, it frees up those slots for other I/O and simplifies the upgrade path in dense or rack‑mounted servers. It is designed to integrate with HPE server management infrastructure and supports features such as SR‑IOV, link‑aggregation and jumbo‑frame support. Installation is straightforward in systems certified for the module, and its passive cooling profile suits chassis environments with standard airflow.

Key Features

  • Single 10 Gb/s SFP+ port for uplink or server connectivity

  • FlexibleLOM form‑factor (ALOM) to conserve standard expansion slots

  • PCI Express 3.0 x8 bus interface for full line rate

  • Supports SR‑IOV, VLAN tagging, traffic offload and jumbo‑frames

Technical Specifications

SpecificationValue
Brand HPE
Part Number 682148‑B21
Product Type 10 Gb Ethernet FlexibleLOM Adapter
Port Count 1 × SFP+
Link Speed 10 Gb/s
Bus Interface PCI Express 3.0 ×8
Form Factor FlexibleLOM (ALOM)
Virtualization Support SR‑IOV capable
Supported Features Link aggregation (LACP), VLAN tagging, jumbo frames
Typical Power Consumption ~<15 W (passive cooling profile)
Compatibility Select HPE ProLiant servers with FlexibleLOM slot
Management Integration HPE server management frameworks supported
Cooling Profile Passive cooling—requires chassis air‑flow
Operating Temperature Standard server conditions (e.g., 0 °C to 35 °C)
Weight ~0.5 lb (~230 g)
