Overview

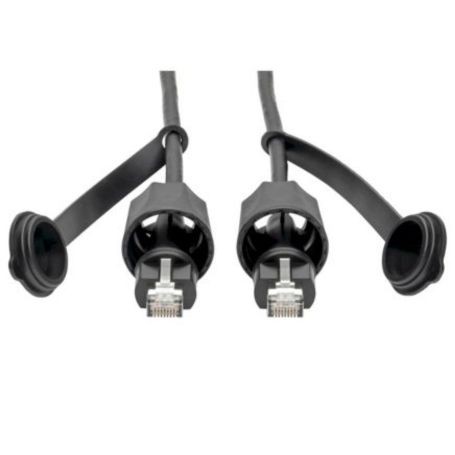

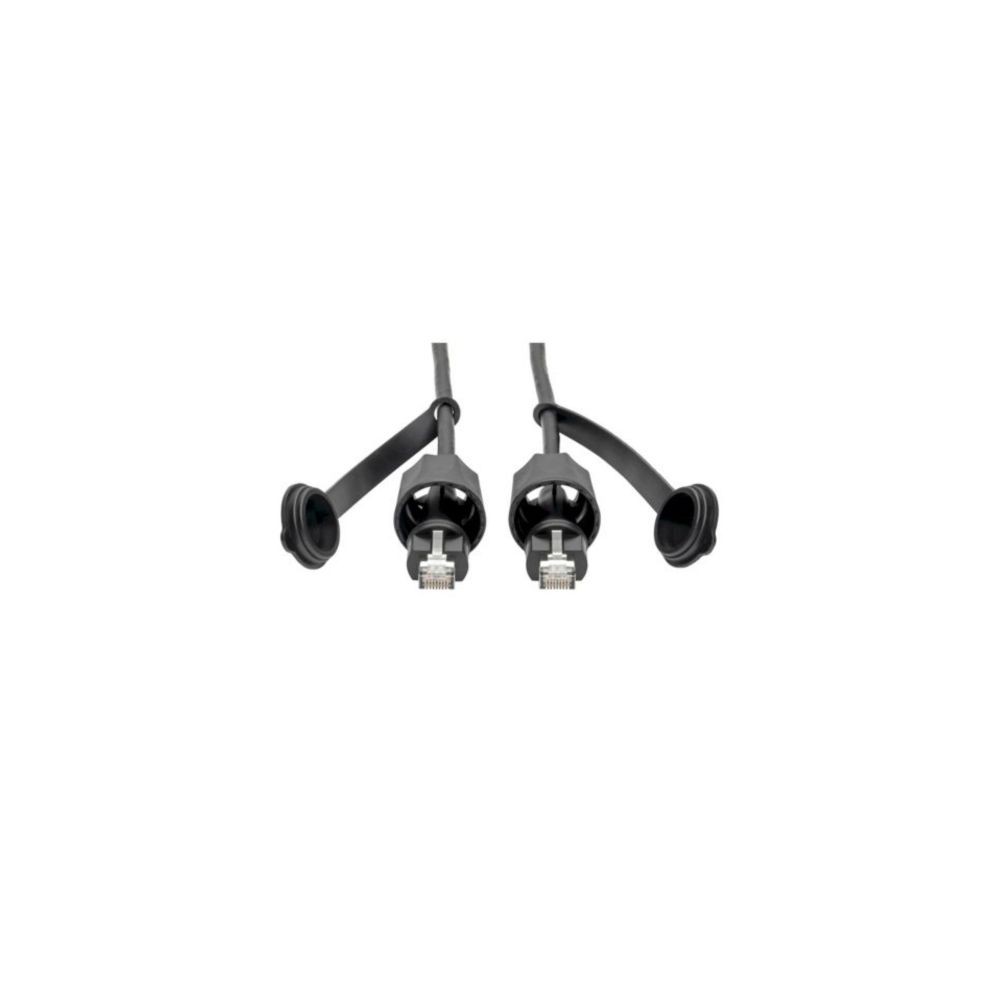

The Tripp Lite N206-PC50-IND is a 50-foot (15.24 m) industrial Cat5e/Cat6 shielded twistefd-pair Ethernet patch cable with male RJ45 connectors on both ends. Its CMX-rated outdoor construction and environmental protection make it suitable for network connections exposed to dust, moisture, vibration, and other harsh operating conditions.
Networking and PoE
The cable supports Gigabit Ethernet connectivity up to 1 Gbps and is compatible with Cat5, Cat5e and Cat6 applications. It also supports IEEE 802.3af Type 1 PoE up to 15.4W and IEEE 802.3at Type 2 PoE+ up to 30W, allowing compatible network devices to receive data and power through the same cable.
Environmental Protection
The N206-PC50-IND uses shielded construction to help reduce interference from EMI/RFI generated by motors, power cables, welding equipment and other industrial machinery. The cable is IP68-rated for dust protection and is specified by the manufacturer for immersion in up to 1.5 meters of water for up to 60 minutes. The CMX outdoor jacket is intended for demanding indoor and outdoor installations.
Connectors and Construction
Both ends use male RJ45 connectors with gold-plated contacts. The cable uses 26 AWG stranded copper conductors, four twisted pairs and a 6.2 mm outer diameter. Included dust caps help protect the connectors when they are not connected.
Key Features
- 50 ft (15.24 m) industrial Cat5e/Cat6 Ethernet patch cable
- Shielded twisted-pair construction for EMI/RFI protection
- IP68-rated protection against dust and water
- Supports Gigabit Ethernet and IEEE 802.3af/802.3at PoE
- CMX-rated outdoor cable with male RJ45 connectors
Applications
The N206-PC50-IND can connect Gigabit Ethernet equipment, digital signage, security cameras, VoIP devices and other compatible network hardware in factories, warehouses, machine shops, outdoor venues and other environments where conventional patch cables may be exposed to dust or moisture.
DC Supplies Product Note
For installations requiring a complete IP68-rated connection system, Tripp Lite specifies this cable for use with compatible industrial connection components such as the N206-SB01-IND surface-mount box and N206-BC01-IND bulkhead coupler or N206-KJ01-IND keystone jack.
Specifications
| Brand | Tripp Lite |
|---|
| Part Number / MPN | N206-PC50-IND |
|---|
| Product Type | Industrial Ethernet Patch Cable |
|---|
| Cable Category | Cat5e / Cat6 |
|---|
| Cable Length | 50 ft (15.24 m) |
|---|
| Connector Type | RJ45 Male to RJ45 Male |
|---|
| Connector Contacts | 8P8C |
|---|
| Shielding | STP |
|---|
| Conductor Gauge | 26 AWG |
|---|
| Conductor Material | Stranded Copper |
|---|
| Number of Pairs | 4 Pair |
|---|
| Network Speed | 1 Gbps |
|---|
| Wiring Method | EIA/TIA 568B |
|---|
| Jacket Rating | CMX |
|---|
| Cable Color | Black |
|---|
| Outer Cable Diameter | 6.2 mm |
|---|
| PoE Support | IEEE 802.3af Type 1; IEEE 802.3at Type 2 |
|---|
| PoE Power | 15.4W / 30W |
|---|
| Environmental Rating | IP68 |
|---|
| Operating Temperature | -4°F to 176°F (-20°C to 80°C) |
|---|
| Operating Humidity | 20% to 80%, non-condensing |
|---|
| Compliance | TAA, RoHS, REACH |
|---|
FAQs
What type of Ethernet cable is the N206-PC50-IND?
It is an industrial Cat5e/Cat6 shielded twisted-pair Ethernet patch cable with a 50-foot length and RJ45 male connectors at both ends.
Does this cable support Gigabit Ethernet?
Yes. The N206-PC50-IND is specified for network speeds up to 1 Gbps.
Does the N206-PC50-IND support PoE?
Yes. It supports IEEE 802.3af Type 1 PoE up to 15.4W and IEEE 802.3at Type 2 PoE+ up to 30W for compatible equipment.
Is this cable suitable for outdoor installations?
Yes. Its CMX-rated outdoor jacket and IP68 environmental rating are designed for applications where protection against dust and moisture is required.
Are the connectors protected when not in use?
Yes. Dust caps are included to protect the RJ45 connectors when they are disconnected.
