Detailed Specifications
Overview

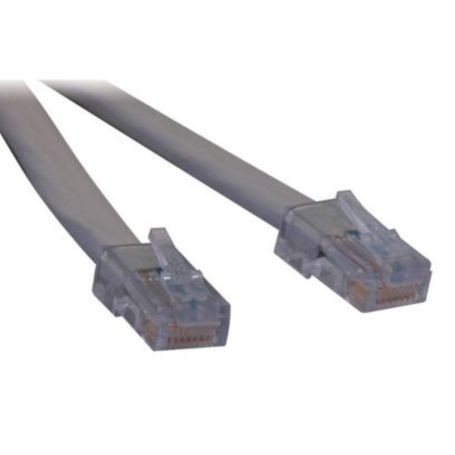

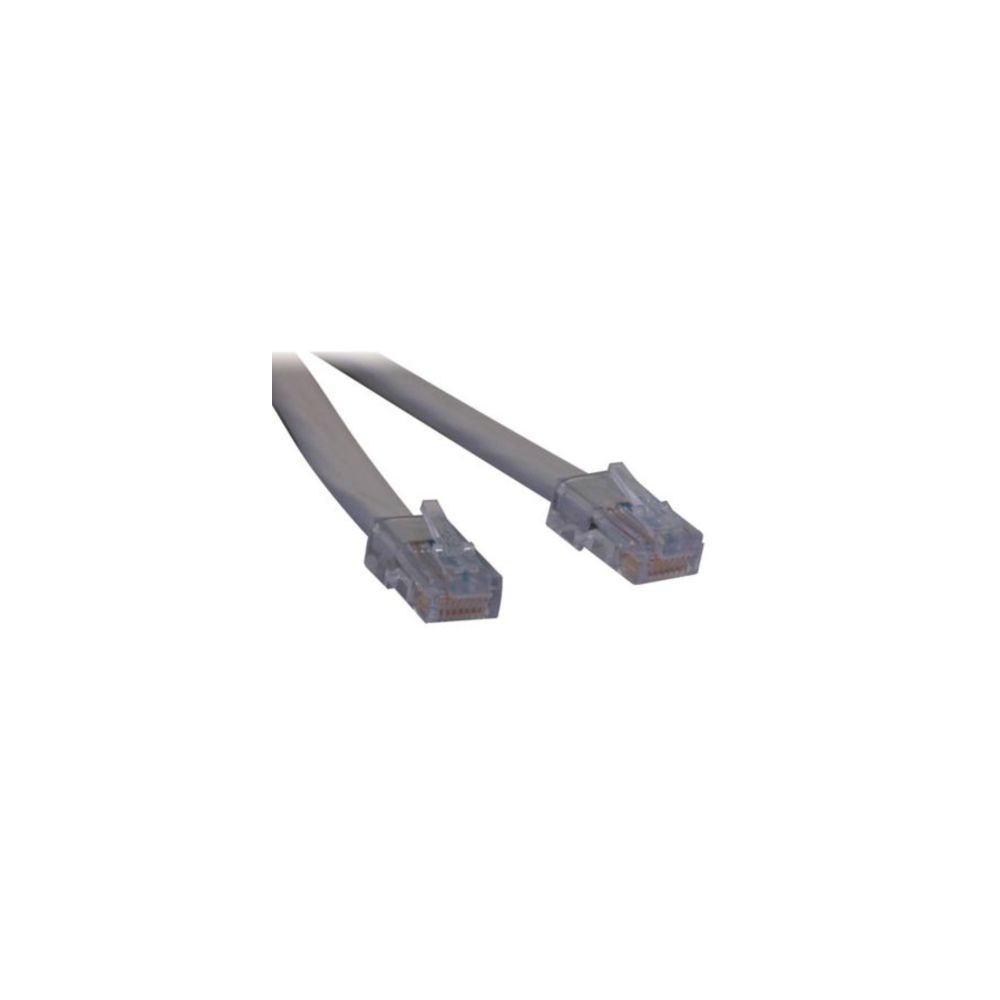

The Eaton Tripp Lite N266-010 is a 10-foot T1 shielded RJ48C crossover cable designed for T1 network connections. It uses RJ45 male connectors at both ends and a crossover wiring configuration for compatible T1 CSU/DSU equipment.
Technical Information
The cable uses 22 AWG, 100-ohm T1-rated construction with two individually shielded pairs. It is constructed with premium Quabbin 9720 T1-certified cable and follows the specified ANSI T1.403 cabling requirements for DS1 metallic interfaces.
Compatibility
- T1 network connections
- T1 CSU/DSU equipment requiring an RJ48C connection
- RJ45 female ports using the specified T1 crossover wiring
- Installations requiring shielded 100-ohm T1 cabling
Key Features
- 10-foot T1-rated cable length
- RJ45 male-to-male RJ48C configuration
- Crossover T1 wiring configuration
- 22 AWG 100-ohm construction with individually shielded pairs
- ANSI T1.403 compliant and TAA compliant
Applications
The N266-010 is intended for T1 networking applications, particularly connections between T1 CSU/DSU equipment and compatible network interfaces. Its shielded construction is suited to installations where the specified T1 cable characteristics are required.
DC Supplies Product Note
This is a dedicated T1 crossover cable rather than a general-purpose Cat5e or Cat6 Ethernet patch cable. The crossover wiring configuration should therefore be matched to the connection requirements of the T1 equipment before installation.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | N266-010 |
| Product Type | T1 Shielded RJ48C Crossover Cable |
| Series | N266 |
| Connector A | RJ45 male |
| Connector B | RJ45 male |
| Connector Configuration | RJ48C |
| Cable Length | 10 ft. (3.05 m) |
| Wiring Configuration | T1 crossover |
| Conductor Gauge | 22 AWG |
| Impedance | 100 ohms |
| Conductor Material | Copper |
| Shielding | Two individually shielded pairs |
| Cable Type | T1-rated patch cable |
| Color | Beige |
| Standard | ANSI T1.403 |
| Application | T1 / DS1 networking |
| TAA Compliant | Yes |
| UL Rated | Yes |
| RoHS Compliant | Yes |
| Warranty | Lifetime limited warranty |
FAQs
What type of cable is the N266-010?
It is a shielded T1 RJ48C crossover cable designed for T1 networking applications.
What connectors does it use?
Both ends use RJ45 male connectors in the specified RJ48C configuration.
Is this a straight-through Ethernet cable?
No. The N266-010 uses a crossover wiring configuration specifically intended for compatible T1 connections.
What is the cable length?
The cable is 10 feet (3.05 m) long.
What are the cable's electrical characteristics?
The cable is rated at 100 ohms and uses 22 AWG construction with two individually shielded pairs.
