Overview

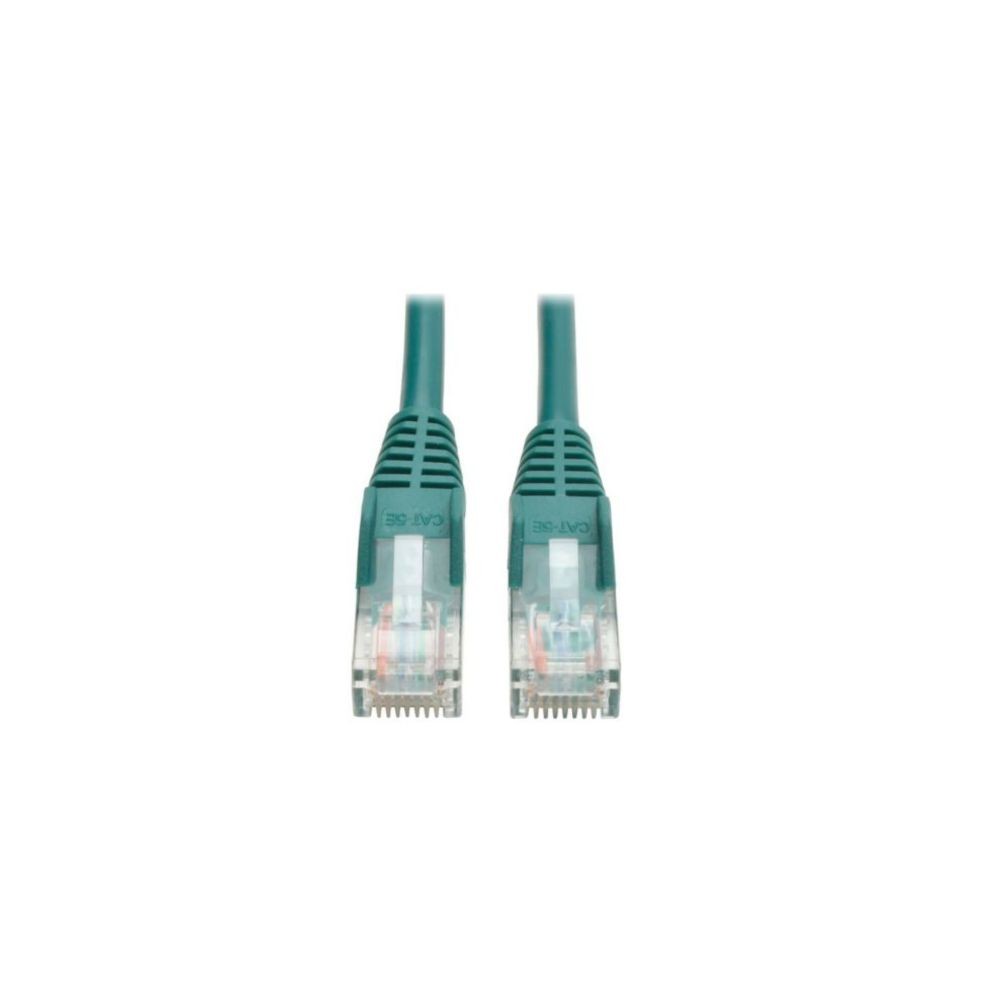

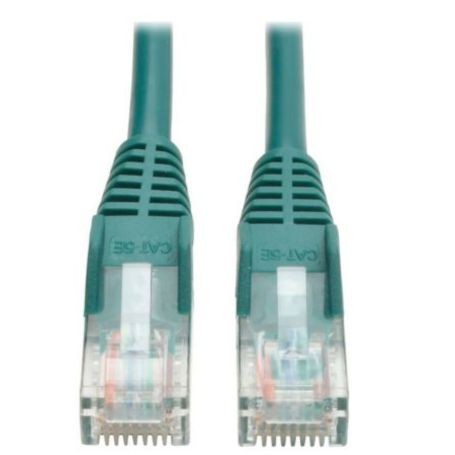

The Eaton Tripp Lite N001-015-GN is a 15-foot Cat5e Ethernet patch cable with RJ45 male connectors, unshielded twisted-pair construction, and molded snagless boots. It is designed for Gigabit Ethernet and other Cat5/5e networking applications requiring a standard RJ45 patch connection.
Technical Information
The cable uses 26 AWG, 4-pair solid copper conductors and supports network speeds up to 1 Gbps. It is rated for 100 MHz bandwidth under TIA standards and tested to 350 MHz. The cable uses UTP construction, a PVC jacket, gold-plated contacts, and EIA/TIA 568B wiring.
Compatibility
- Cat5 and Cat5e Ethernet networks
- 10/100/1000Base-T Ethernet connections
- RJ45 network ports
- 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, and Token Ring Type 3 applications
- IEEE 802.3ab and IEEE 802.3at applications
Key Features
- Cat5e performance rated to 350 MHz
- Supports Gigabit Ethernet up to 1 Gbps
- 26 AWG 4-pair solid copper conductors
- Molded snagless RJ45 connectors with integrated strain relief
- Supports Type 2 PoE+ up to 30W under IEEE 802.3at
Applications
The N001-015-GN can be used to connect switches, routers, computers, network appliances, patch panels, and other compatible RJ45 equipment. Its 15-foot length is suited to longer equipment-to-network connections where a short patch cable is insufficient.
DC Supplies Product Note
The cable uses unshielded twisted-pair construction and solid copper conductors. For installations where shielding is required because of significant electromagnetic interference, a shielded cable should be selected instead.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | N001-015-GN |
| Product Type | Cat5e Ethernet Patch Cable |
| Cable Category | Cat5e |
| Connector Type | RJ45 male to RJ45 male |
| Connector Style | Molded snagless |
| Connector Contacts | Gold-plated |
| Cable Length | 15 ft. (4.57 m) |
| Shielding | UTP / Unshielded |
| Conductor Material | Solid copper |
| Conductor Gauge | 26 AWG |
| Number of Conductors | 4 pair |
| Network Speed | 1 Gbps |
| Bandwidth per TIA Standard | 100 MHz |
| Maximum Tested Bandwidth | 350 MHz |
| PoE Support | Yes |
| PoE+ Type | Type 2, up to 30W, IEEE 802.3at |
| Wiring Method | EIA/TIA 568B |
| Jacket Material | PVC |
| Jacket Rating | CM |
| Cable Color | Green |
| Outer Cable Diameter | 5.0 mm |
| Operating Temperature | -10°C to 40°C |
| Operating Humidity | 0% to 90% RH, non-condensing |
| Storage Temperature | -15°C to 50°C |
| Storage Humidity | 0% to 90% RH, non-condensing |
| Standards Supported | IEEE 802.3ab, IEEE 802.3at |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS, REACH |
| Warranty | Lifetime limited warranty |
| UPC | 037332172617 |
FAQs
What category is the N001-015-GN?
It is a Cat5e Ethernet patch cable rated for 350 MHz tested bandwidth and Gigabit Ethernet operation.
What connectors are provided?
Both ends use RJ45 male connectors with molded snagless boots and gold-plated contacts.
Is the cable shielded?
No. It uses unshielded twisted-pair (UTP) construction.
Does it support Gigabit Ethernet?
Yes. Eaton specifies network speeds up to 1 Gbps and support for IEEE 802.3ab Gigabit Ethernet.
Does it support PoE+?
Yes. The cable supports Type 2 PoE+ up to 30W under IEEE 802.3at.
