Overview

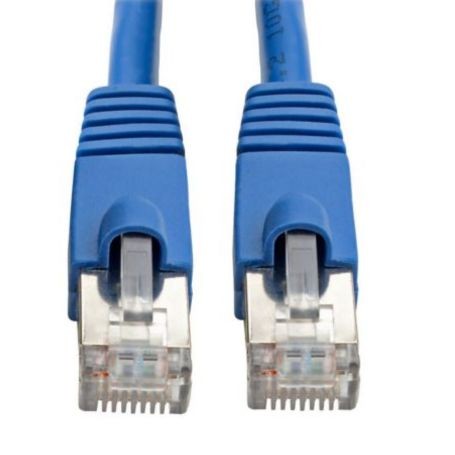

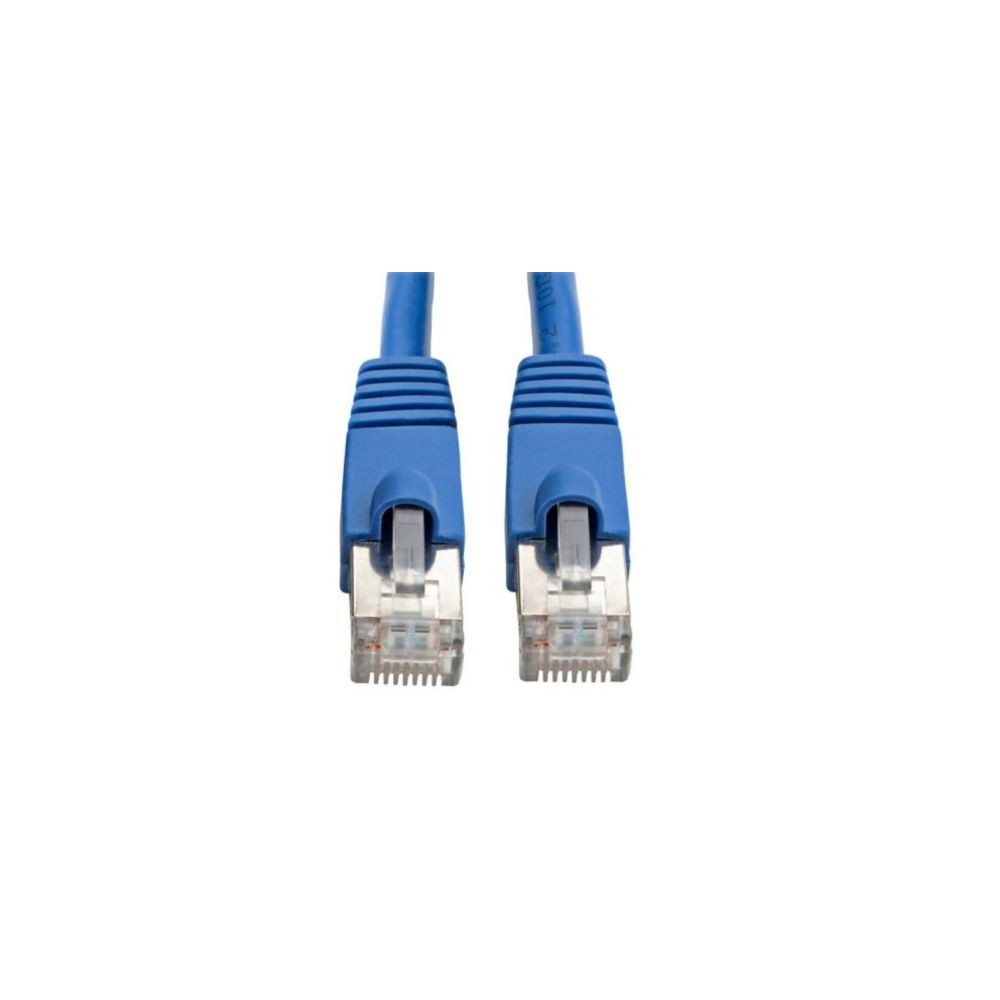

The Eaton Tripp Lite N262-003-BL is a 3-foot Cat6a Ethernet patch cable with shielded twisted-pair construction, snagless RJ45 connectors, and stranded copper conductors. It is designed for 10 Gbps network connections while providing shielding against EMI/RFI line noise.
Technical Information
The cable uses 26 AWG, 4-pair stranded copper conductors and supports network speeds up to 10 Gbps. It has 500 MHz bandwidth per TIA standard and was tested to a maximum bandwidth of 600 MHz. The cable uses STP shielding, a PVC jacket, EIA/TIA 568B wiring, and gold-plated RJ45 contacts.
Compatibility
- Cat6a Ethernet networking equipment
- RJ45 female network ports
- 10 Gbps Ethernet connections
- PoE and Type 2 PoE+ applications
- Equipment using standard EIA/TIA 568B wiring
Key Features
- Cat6a performance for 10 Gbps Ethernet networking
- Shielded twisted-pair construction for EMI/RFI protection
- Snagless RJ45 male connectors help protect connector tabs
- 26 AWG 4-pair stranded copper conductors
- Supports Type 2 PoE+ up to 30W under IEEE 802.3at
Applications
The N262-003-BL is suited to network closets, server rooms, data centers, and other high-density Ethernet installations. Its 3-foot length is useful for short equipment-to-switch, patch-panel, router, server, and other RJ45 network connections.
DC Supplies Product Note
The shielded construction and snagless connectors make this cable suitable for dense networking environments where EMI/RFI protection and protection against accidental RJ45 tab breakage are useful considerations.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | N262-003-BL |
| Product Type | Cat6a Shielded Ethernet Patch Cable |
| Series | Preterminated Copper Patch Cables |
| Cable Category | Cat6a |
| Connector Type | RJ45 male to RJ45 male |
| Connector Plating | Gold contacts |
| Connector Style | Snagless |
| Cable Length | 3 ft. (0.91 m) |
| Cable Shielding | STP |
| Conductor Material | Stranded copper |
| Conductor Gauge | 26 AWG |
| Number of Conductors | 4 pair |
| Network Speed | 10 Gbps |
| TIA Bandwidth | 500 MHz |
| Maximum Tested Bandwidth | 600 MHz |
| PoE Support | IEEE 802.3af / 802.3at |
| PoE+ Type | Type 2, up to 30W |
| Wiring Method | EIA/TIA 568B |
| Jacket Material | PVC |
| Jacket Rating | CM |
| Cable Color | Blue |
| Outer Cable Diameter | 6.2 mm |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | 0% to 90%, non-condensing |
| Compliance | IEEE Certified, UL Listed, cUL Listed, RoHS, REACH |
| Warranty | Lifetime limited warranty |
| UPC | 037332188274 |
FAQs
What category is the N262-003-BL cable?
It is a Cat6a shielded Ethernet patch cable designed for 10 Gbps networking.
What connectors does it use?
The cable has an RJ45 male connector on each end.
Does it support Power over Ethernet?
Yes. Eaton specifies support for IEEE 802.3af and Type 2 PoE+ under IEEE 802.3at, with Type 2 PoE+ support up to 30W.
Is the cable shielded?
Yes. The N262-003-BL uses shielded twisted-pair (STP) construction.
How long is the cable?
The cable is 3 feet (0.91 m) long.
