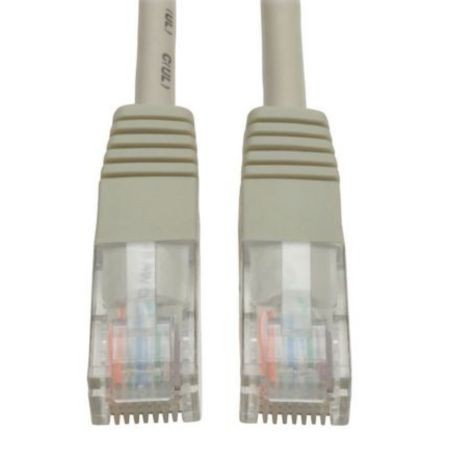

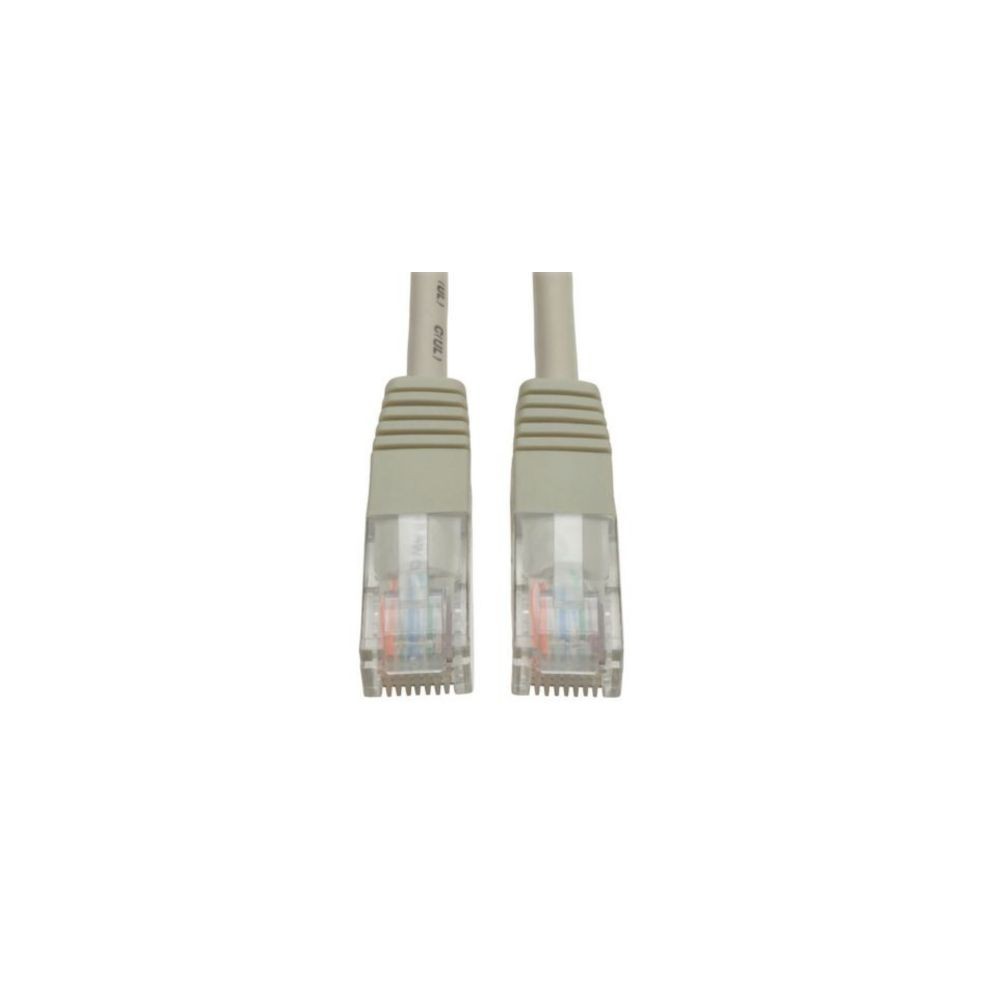

Eaton N002-001-GY Tripp Lite 1 ft Cat5e Ethernet Cable Gray RJ45 M M
The Eaton Tripp Lite N002-001-GY is a 1 ft (0.31 m) Cat5e Ethernet patch cable with gray PVC construction and unshielded twisted-pair wiring. It uses two molded RJ45 male connectors with integral strain relief for short network equipment connections.
Cat5e Gigabit Ethernet Connectivity
The N002-001-GY is rated for 350 MHz and 1 Gbps communications. It supports 1000Base-T Gigabit Ethernet, 10/100Base-T Ethernet, and other compatible Cat5 and Cat5e networking applications.
Molded RJ45 Connectors
Both ends feature standard RJ45 male connectors with molded construction and integral strain relief. The connectors provide a standard plug-to-plug interface for compatible Ethernet ports.
UTP Copper Construction
The cable uses four-pair stranded copper conductors with unshielded twisted-pair (UTP) construction and a PVC jacket. Its compact 1 ft length is suited to short patch connections between nearby network ports.
PoE Support
The N002-001-GY is listed for PoE applications and is part of Eaton Tripp Lite's Cat5e copper cable range supporting compatible network installations.
Key Features
- 1 ft (0.31 m) Cat5e Ethernet patch cable
- RJ45 male-to-male molded connectors with integral strain relief
- 350 MHz maximum tested bandwidth
- Up to 1 Gbps network communication
- 26 AWG, four-pair stranded copper UTP construction
Applications
The N002-001-GY is suitable for short Ethernet connections between switches, routers, patch panels, computers, servers, network appliances, and other RJ45-equipped equipment. The short cable length can be useful when connected ports are positioned close together in network racks or workstations.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | N002-001-GY |
| Product Type | Cat5e Ethernet Patch Cable |
| Cable Length | 1 ft (0.31 m) |
| Cable Category | Cat5e |
| Connector Type | RJ45 Male to RJ45 Male |
| Connector Style | Molded |
| Cable Construction | 4-pair stranded UTP |
| Conductor Material | Stranded Copper |
| Conductor Gauge | 26 AWG |
| Cable Shielding | UTP / Unshielded |
| Cable Jacket Material | PVC |
| Cable Color | Gray |
| Network Speed | 1 Gbps |
| Maximum Tested Bandwidth | 350 MHz |
| Network Standards | IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 |
| PoE Support | Supported |
| Outer Cable Diameter | 5.0 mm |
| Operating Temperature | 14° to 104°F (-10° to 40°C) |
| Operating Humidity | 0% to 90% RH, non-condensing |
| Compliance | RoHS |
| Certification | ETL |
| Warranty | Lifetime limited warranty |
| UPC | 803983010314 |
Package Contents
- 1 × N002-001-GY 1 ft Gray Cat5e Molded Patch Cable
Frequently Asked Questions
What category is the N002-001-GY?
The N002-001-GY is a Cat5e Ethernet patch cable rated for 350 MHz and 1 Gbps communication.
What connectors does the cable use?
It has RJ45 male connectors on both ends.
Is the N002-001-GY shielded?
No. The cable uses unshielded twisted-pair (UTP) construction.
How long is the N002-001-GY?
The cable is 1 ft (0.31 m) long.
What color is the cable?
The N002-001-GY has a gray PVC jacket.
What network speed does it support?
The cable is rated for 1 Gbps communication and is designed for compatible Cat5/Cat5e Ethernet applications.
