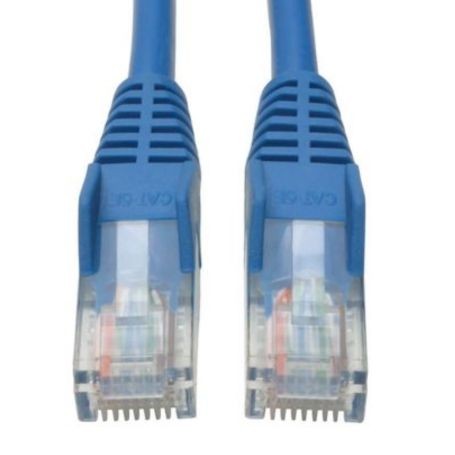

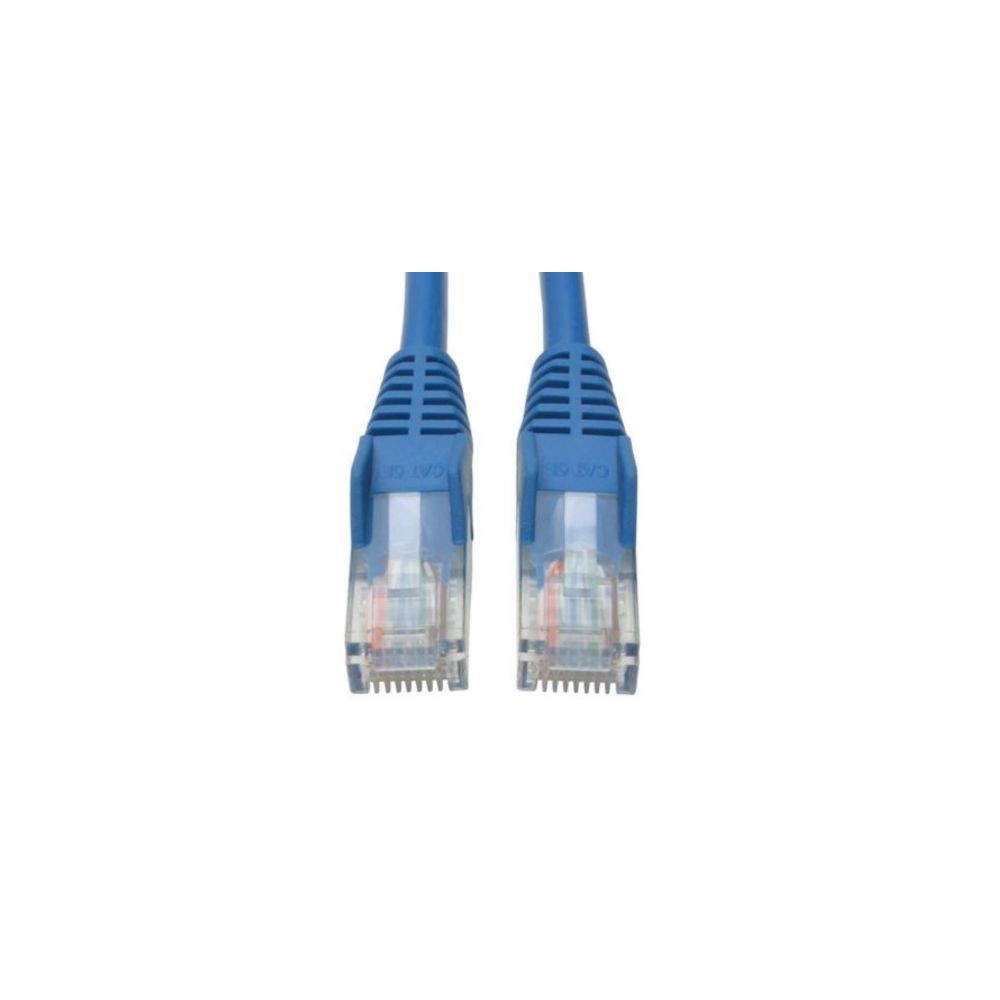

Eaton N001-007-BL Tripp Lite 7 ft Cat5e Ethernet Cable Blue RJ45 M M
The Eaton Tripp Lite N001-007-BL is a 7 ft (2.13 m) Cat5e Ethernet patch cable with blue PVC jacket, unshielded twisted-pair construction, and snagless molded RJ45 male connectors. It is rated for 350 MHz communications and Gigabit Ethernet up to 1 Gbps.
Cat5e Gigabit Ethernet Connectivity
The N001-007-BL is designed for Cat5 and Cat5e networking applications, including 1000Base-T Gigabit Ethernet and 10/100Base-T Ethernet. Eaton specifies 1 Gbps network speed and a maximum tested bandwidth of 350 MHz.
Snagless Molded RJ45 Connectors
Both ends feature RJ45 male connectors with molded boots and integral strain relief. The snagless design helps protect the connector locking tabs from damage during installation and removal.
UTP Copper Construction
The cable uses four-pair 26 AWG stranded copper conductors with unshielded twisted-pair construction and a PVC jacket. The EIA/TIA 568B wiring method supports standard Ethernet patching between compatible RJ45 network equipment.
PoE+ Support
The N001-007-BL supports Type 2 PoE+ under IEEE 802.3at for compatible network installations. This allows the cable to be used in supported Ethernet connections carrying both network data and power.
Key Features
- 7 ft (2.13 m) Cat5e Ethernet patch cable
- RJ45 male-to-male connectors with snagless molded boots
- 350 MHz maximum tested bandwidth and up to 1 Gbps network speed
- 26 AWG, four-pair stranded copper UTP construction
- Type 2 PoE+ support under IEEE 802.3at
Applications
The N001-007-BL can be used for Ethernet patching between switches, routers, patch panels, computers, servers, network appliances, and other RJ45-equipped devices. Its 7 ft length provides additional reach for workstation and equipment connections while remaining practical for network closets and server-room installations.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | N001-007-BL |
| Product Type | Cat5e Ethernet Patch Cable |
| Cable Length | 7 ft (2.13 m) |
| Cable Category | Cat5e |
| Connector Type | RJ45 Male to RJ45 Male |
| Connector Plating | Gold |
| Cable Construction | 4-pair stranded UTP |
| Conductor Material | Stranded Copper |
| Conductor Gauge | 26 AWG |
| Cable Shielding | UTP / Unshielded |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | CM |
| Cable Color | Blue |
| Network Speed | 1 Gbps (Gigabit) |
| Bandwidth per TIA Standard | 100 MHz |
| Maximum Tested Bandwidth | 350 MHz |
| Wiring Method | EIA/TIA 568B |
| PoE Support | Type 2 PoE+ (30W, IEEE 802.3at) |
| Outer Cable Diameter | 5.0 mm |
| Number of Conductors | 4 Pair |
| Cable Style | Snagless, molded |
| Operating Temperature | 14° to 104°F (-10° to 40°C) |
| Operating Humidity | 0% to 90% RH, non-condensing |
| Storage Temperature | 5° to 122°F (-15° to 50°C) |
| Storage Humidity | 0% to 90% RH, non-condensing |
| Compliance | RoHS, REACH |
| Certifications | UL Listed, cUL Listed |
| Warranty | Lifetime limited warranty |
| UPC | 037332042484 |
Package Contents
- 1 × N001-007-BL 7 ft Blue Snagless Cat5e Patch Cable
Frequently Asked Questions
What category is the N001-007-BL?
The N001-007-BL is a Cat5e Ethernet patch cable rated for 1 Gbps communication and 350 MHz maximum tested bandwidth.
What connectors does the cable use?
It uses RJ45 male connectors on both ends.
Is the N001-007-BL shielded?
No. The cable uses unshielded twisted-pair (UTP) construction.
Does this Cat5e cable support PoE+?
Yes. Eaton specifies Type 2 PoE+ support under IEEE 802.3at.
How long is the N001-007-BL?
The cable is 7 ft (2.13 m) long.
What wiring method does it use?
The N001-007-BL uses EIA/TIA 568B wiring.
