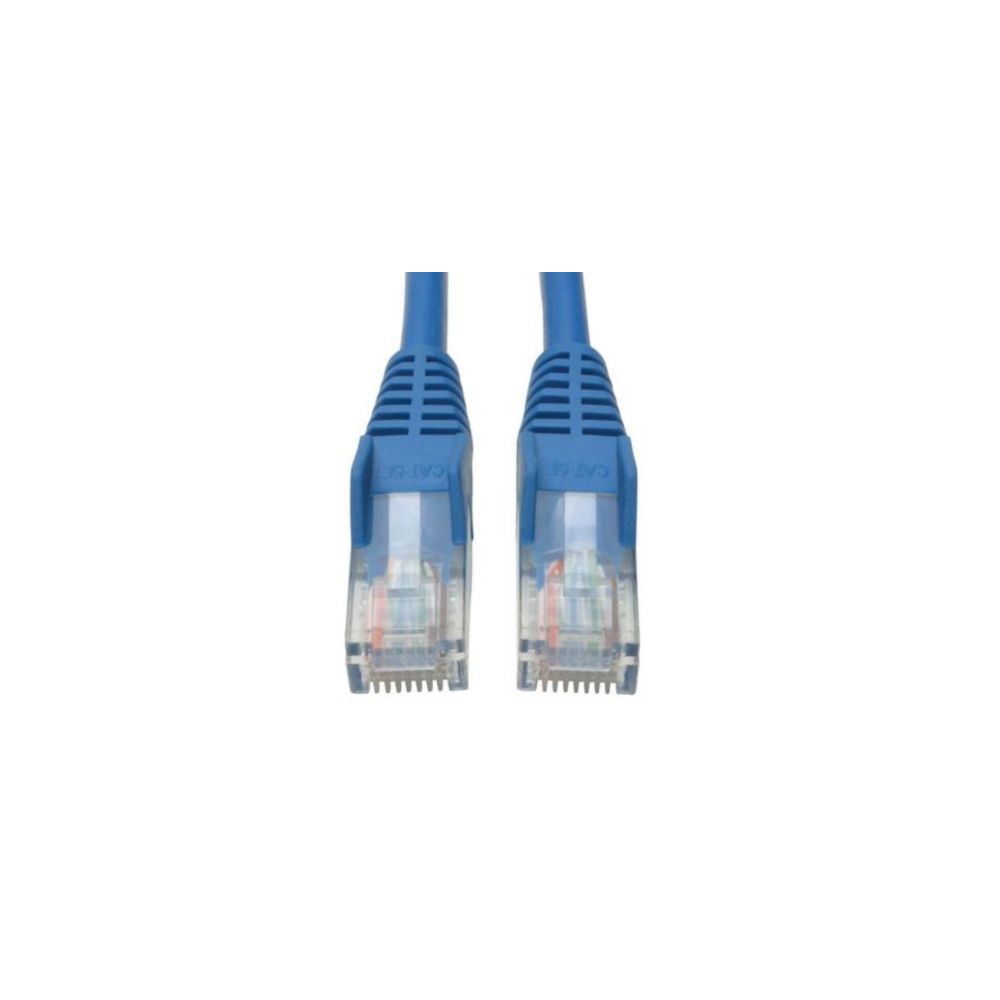

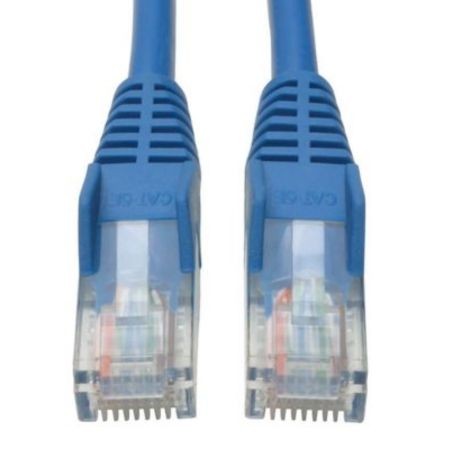

Eaton N001-005-BL Tripp Lite 5 ft Cat5e Ethernet Cable Blue RJ45 M M
The Eaton Tripp Lite N001-005-BL is a 5 ft (1.52 m) blue Cat5e Ethernet patch cable with snagless molded RJ45 male connectors. It uses 26 AWG stranded copper, 4-pair UTP construction and is rated for 350 MHz communications and Gigabit Ethernet.
Cat5e Gigabit Ethernet Connectivity
The N001-005-BL is designed for Cat5 and Cat5e networking applications, including 1000Base-T Gigabit Ethernet and 10/100Base-T Ethernet. The cable supports up to 1 Gbps network communication and has a 350 MHz maximum tested bandwidth.
Snagless RJ45 Connectors
Both ends use molded RJ45 male connectors with integral strain relief. The snagless boot design helps protect the connector locking tabs from being damaged or caught during installation and removal.
UTP Construction and PoE+
The cable uses unshielded twisted-pair construction with four pairs of 26 AWG stranded copper conductors and a PVC jacket. It supports Type 2 PoE+ applications under IEEE 802.3at, making it suitable for compatible network connections that carry both data and power.
Key Features
- 5 ft (1.52 m) Cat5e Ethernet patch cable
- RJ45 male-to-male connectors with snagless molded boots
- 350 MHz maximum tested bandwidth and up to 1 Gbps network speed
- 26 AWG, 4-pair stranded copper UTP construction
- Supports Type 2 PoE+ under IEEE 802.3at
Applications
Use the N001-005-BL for Ethernet patching between computers, switches, routers, patch panels, network appliances, and other RJ45-equipped network devices. Its 5 ft length is suitable for short equipment-to-equipment connections in network closets, server rooms, workstations, and data-center environments.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | N001-005-BL |
| Product Type | Cat5e Ethernet Patch Cable |
| Cable Length | 5 ft (1.52 m) |
| Cable Category | Cat5e |
| Connector Type | RJ45 Male to RJ45 Male |
| Connector Plating | Gold |
| Cable Construction | 4-pair stranded UTP |
| Conductor Material | Stranded Copper |
| Conductor Gauge | 26 AWG |
| Cable Shielding | UTP / Unshielded |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | CM |
| Cable Color | Blue |
| Network Speed | 1 Gbps |
| Bandwidth per TIA Standard | 100 MHz |
| Maximum Tested Bandwidth | 350 MHz |
| Wiring Method | EIA/TIA 568B |
| PoE Support | Type 2 PoE+ (IEEE 802.3at) |
| Outer Cable Diameter | 5.0 mm |
| Operating Temperature | 14° to 104°F (-10° to 40°C) |
| Operating Humidity | 0–90% RH, non-condensing |
| Storage Temperature | 5° to 122°F (-15° to 50°C) |
| Storage Humidity | 0–90% RH, non-condensing |
| Compliance | RoHS, REACH |
| Certifications | UL Listed, cUL Listed |
| Warranty | Lifetime limited warranty |
| UPC | 037332099921 |
Package Contents
- 1 × N001-005-BL 5 ft Blue Snagless Cat5e Patch Cable
Frequently Asked Questions
What category is the N001-005-BL?
The N001-005-BL is a Cat5e Ethernet patch cable rated for 350 MHz maximum tested bandwidth and up to 1 Gbps network communication.
What connectors does this cable use?
It has RJ45 male connectors on both ends.
Is the N001-005-BL shielded?
No. It uses unshielded twisted-pair (UTP) construction with four pairs of stranded copper conductors.
Does this cable support PoE?
Yes. Eaton specifies support for Type 2 PoE+ under IEEE 802.3at.
How long is the cable?
The cable is 5 ft (1.52 m) long.
What wiring standard does it use?
The N001-005-BL uses EIA/TIA 568B wiring.
