Detailed Specifications

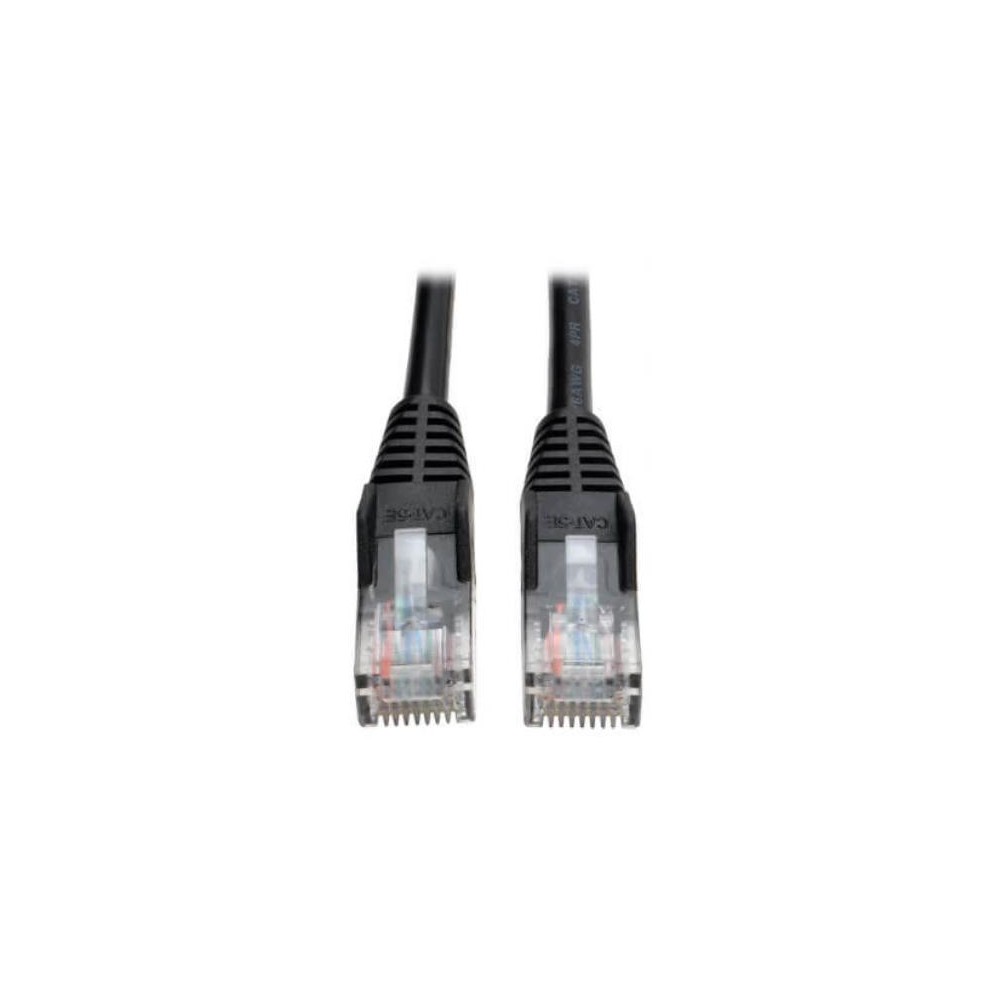

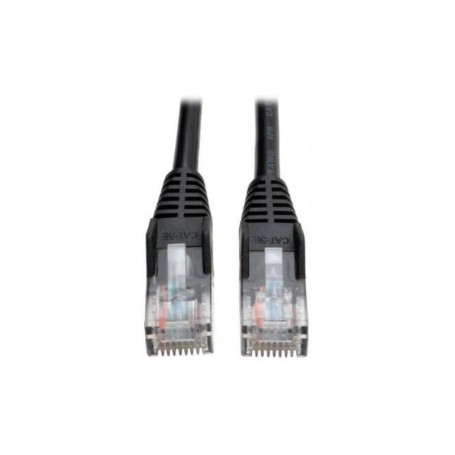

Eaton N001-015-BK 15 ft Cat5e 350 MHz Ethernet Patch Cable Compatible Tripp Lite
Overview :
The Eaton N001-015-BK is a 15-ft (4.57 m) black Cat5e Ethernet patch cable designed for Gigabit network connectivity. It features solid copper, 4-pair UTP construction, molded snagless RJ45 male connectors with integral strain relief, and supports up to 350 MHz tested bandwidth and 1 Gbps Ethernet. It also supports Type 2 PoE+ applications up to 30W.
Key Features :
- Cat5e Ethernet patch cable
- 15 ft (4.57 m) length
- Black PVC jacket
- 350 MHz maximum tested bandwidth
- Supports Gigabit Ethernet up to 1 Gbps
- 4-pair UTP construction
- Solid copper conductors
- 26 AWG
- RJ45 male-to-male connectors
- Gold-plated contacts
- Snagless molded connector design
- Integral strain relief
- Supports Type 2 PoE+ up to 30W
- EIA/TIA 568B wiring
- UL and cUL Listed
- RoHS and REACH compliant
- Lifetime limited worldwide warranty
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Model / Part Number | N001-015-BK |
| Product Type | Ethernet Patch Cable |
| Cable Category | Cat5e |
| Cable Length | 15 ft (4.57 m) |
| Cable Color | Black |
| Cable Shielding | UTP / Unshielded |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | CM |
| Conductor Material | Solid Copper |
| Conductor Gauge | 26 AWG |
| Number of Conductors | 4 Pair |
| Connector A | RJ45 Male |
| Connector B | RJ45 Male |
| Contact Plating | Gold |
| Cable Diameter | 5.0 mm |
| Bandwidth per TIA Standard | 100 MHz |
| Maximum Tested Bandwidth | 350 MHz |
| Network Speed | Up to 1 Gbps |
| PoE Support | Yes |
| PoE Standard | Type 2 PoE+ / IEEE 802.3at |
| Maximum PoE Power | 30W |
| Wiring Method | EIA/TIA 568B |
| Cable Style | Snagless Molded |
| Operating Temperature | 14°F to 104°F (-10°C to 40°C) |
| Compliance | RoHS, REACH |
| Certifications | UL Listed, cUL Listed |
| UPC | 037332155085 |
