Detailed Specifications

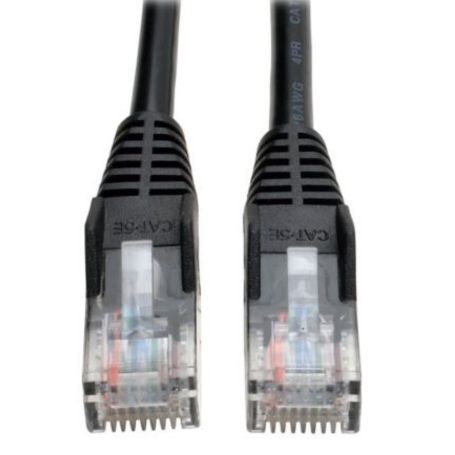

Eaton N001-003-BK Tripp Lite Cat5e 350 MHz Snagless Molded UTP Ethernet Cable RJ45 M M Black
Overview
The Eaton Tripp Lite N001-003-BK is a 3 ft Cat5e Ethernet patch cable with RJ45 male connectors on both ends. It uses four-pair stranded unshielded twisted-pair construction and supports Gigabit Ethernet connectivity up to 1 Gbps.
The cable is rated for 350 MHz maximum tested bandwidth, with a 100 MHz TIA-standard bandwidth rating. Molded snagless connectors incorporate integral strain relief for routine patching and equipment connections.
It supports 1000Base-T and 10/100Base-T networking and Type 2 PoE+ up to 30W under IEEE 802.3at. The 26 AWG stranded copper construction and 5.0 mm outer diameter suit short equipment-to-switch and patch-panel connections.
Key Features
- Cat5e UTP construction supports Gigabit Ethernet up to 1 Gbps
- 350 MHz tested bandwidth supports high-frequency network links
- RJ45 male connectors provide standard plug-to-plug connectivity
- Snagless molded boots protect connectors during routine patching
- Supports IEEE 802.3at Type 2 PoE+ applications up to 30W
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | N001-003-BK |
| Product Type | Cat5e Ethernet Patch Cable |
| Cable Length | 3 ft (0.91 m) |
| Connector A | RJ45 male |
| Connector B | RJ45 male |
| Category | Cat5e |
| Network Speed | Up to 1 Gbps |
| Bandwidth per TIA Standard | 100 MHz |
| Maximum Bandwidth as Tested | 350 MHz |
| Cable Shielding | UTP |
| Conductor Material | Stranded copper |
| Conductor Gauge | 26 AWG |
| Number of Conductors | 4 pair |
| Outer Cable Diameter | 5.0 mm |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | CM |
| Cable Jacket Color | Black |
| Connector Plating | Gold |
| Cable Style | Molded, snagless |
| Wiring Method | EIA/TIA 568B |
| PoE Support | Type 2 PoE+ up to 30W, IEEE 802.3at |
| Supported Ethernet | 1000Base-T, 10/100Base-T |
| Operating Temperature | -10°C to 40°C |
| Storage Temperature | -15°C to 50°C |
| Operating Humidity | 0–90% RH, non-condensing |
| Compliance | RoHS, REACH |
| Certifications | UL Listed, cUL Listed |
| Warranty | Lifetime limited warranty |
