Detailed Specifications
Eaton NM12-6A2-01M-BL M12 X-Code Cat6a Ethernet Cable Tripp Lite
Overview :

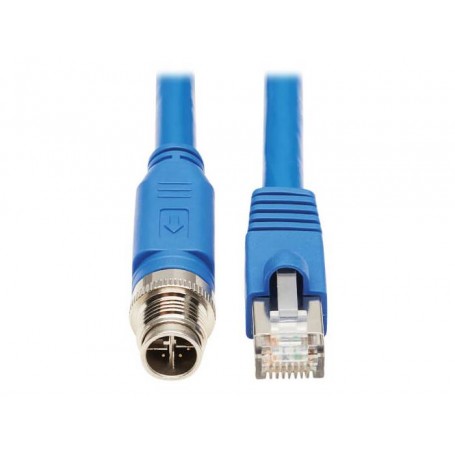

The Eaton NM12-6A2-01M-BL is a 1 m (3.3 ft) industrial Cat6a F/UTP Ethernet cable with an M12 X-Code male connector on one end and an RJ45 male connector on the other. It supports network speeds up to 10 Gbps and is designed for industrial Ethernet installations exposed to vibration, moisture, dust, and temperature variations.
The M12 connector is IP68-rated and supports immersion in up to 1.5 m of water for 60 minutes. The cable supports 60W IEEE 802.3bt PoE and uses a 23 AWG solid copper conductor with a blue PVC CMR-LP jacket.
Key Features :
- M12 X-Code male to RJ45 male
- Cat6a F/UTP shielded construction
- Supports up to 10 Gbps
- 1 m / 3.3 ft cable length
- IP68-rated M12 connector
- Supports 60W IEEE 802.3bt PoE
- 23 AWG solid copper conductors
- 500 MHz bandwidth; tested up to 600 MHz
- Blue PVC CMR-LP jacket
- -10°C to 60°C operating temperature
- TAA compliant
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | NM12-6A2-01M-BL |
| Product Type | Industrial Ethernet Cable |
| Cable Category | Cat6a |
| Connector 1 | M12 X-Code Male |
| Connector 2 | RJ45 Male |
| Cable Length | 1 m / 3.3 ft |
| Shielding | F/UTP |
| Network Speed | Up to 10 Gbps |
| Conductor | 23 AWG Solid Copper |
| Bandwidth | 500 MHz |
| Maximum Tested Bandwidth | 600 MHz |
| PoE | 60W, IEEE 802.3bt |
| IP Rating | IP68 |
| Jacket | Blue PVC, CMR-LP |
| Cable Diameter | 7.3 mm |
| Wiring | EIA/TIA 568B |
| Operating Temperature | -10°C to 60°C |
| Compliance | TAA, UL, cUL, RoHS, REACH, CE |
