Detailed Specifications

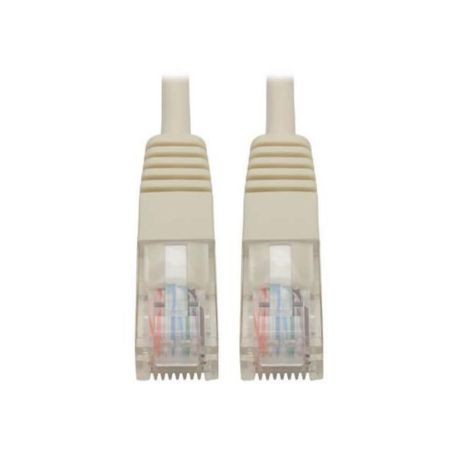

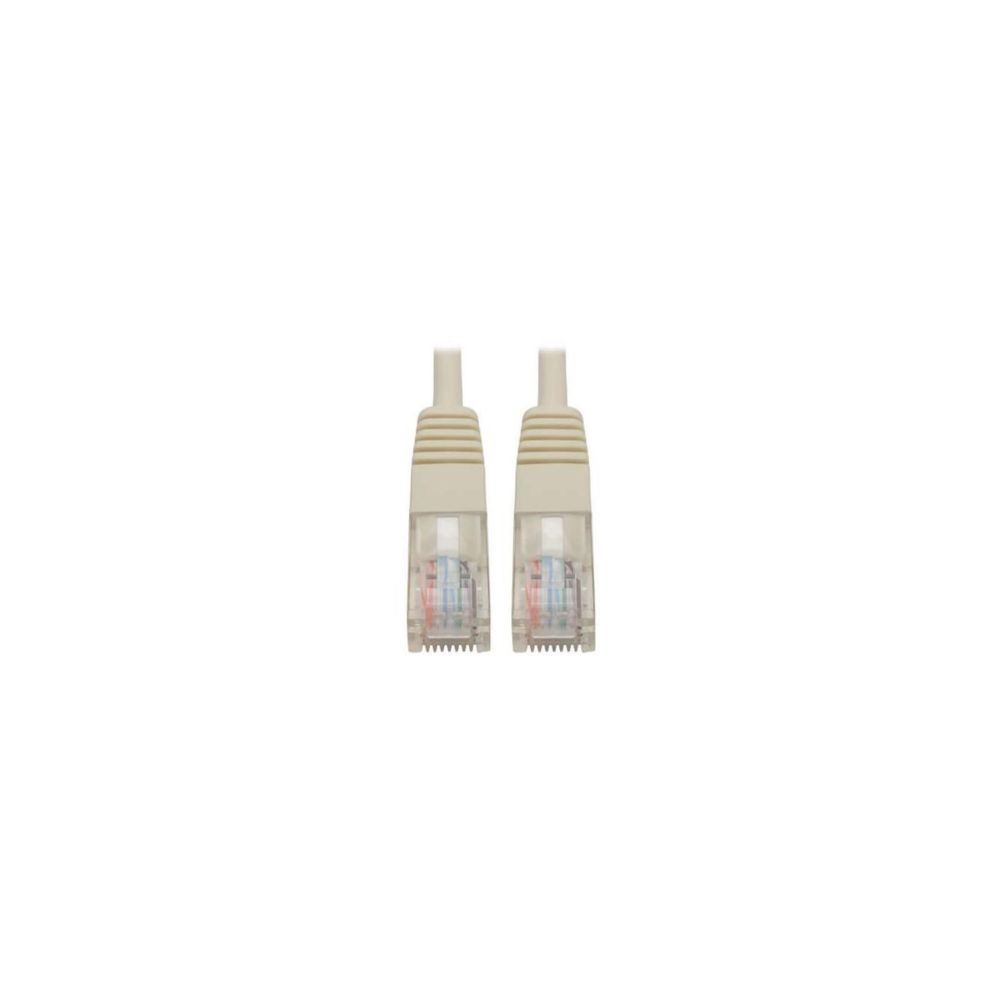

Eaton N002-007-WH Tripp Lite Series Cat5e 350MHz Molded Patch Cable
Overview
The Eaton N002-007-WH, from the Tripp Lite by Eaton connectivity portfolio, is a 7-ft (2.13 m) Cat5e Ethernet patch cable designed for network, computer, and data-device connectivity.
The cable uses RJ45 male-to-male connectors and 4-pair stranded copper UTP construction. It is rated for 350MHz / 1Gbps communication, supporting Gigabit Ethernet and compatible lower-speed Ethernet applications.
The N002-007-WH features a white PVC jacket, molded connectors with integral strain relief, and EIA/TIA 568B wiring. It is suitable for 1000Base-T, 10/100Base-T, and other compatible network applications.
Key Features
- 7-ft (2.13 m) Cat5e patch cable provides flexible network connectivity between compatible devices.
- RJ45 male-to-male connectors provide direct Ethernet connections between network equipment.
- 350MHz / 1Gbps communication rating supports Gigabit Ethernet and compatible lower-speed networks.
- 4-pair stranded copper UTP construction provides reliable data transmission for structured network connections.
- Molded connectors with integral strain relief improve connector durability and cable handling.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite by Eaton |
| Model | N002-007-WH |
| Product Type | Cat5e Ethernet Patch Cable |
| Cable Type | Cat5 / Cat5e |
| Cable Length | 7 ft (2.13 m) |
| Connector A | RJ45 Male |
| Connector B | RJ45 Male |
| Wiring Configuration | EIA/TIA 568B |
| Network Compatibility | 1 Gbps |
| Maximum Bandwidth as Tested | 350 MHz |
| Conductor Material | Stranded Copper |
| Conductor Gauge | 26 AWG |
| Cable Construction | 4-Pair Stranded UTP |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | CM |
| Cable Color | White |
| Connector Construction | Molded |
| Contact Plating | Gold |
| Cable Outer Diameter | 5.0 mm |
| Applications | 1000Base-T, 10/100Base-T, TPDDI, ATM, ISDN, Voice, Token Ring |
| Standards | IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 |
| Compliance | ETL, RoHS |
| Warranty | Lifetime Limited Warranty |
| Country of Origin | China |
| UPC | 037332119988 |
