Detailed Specifications

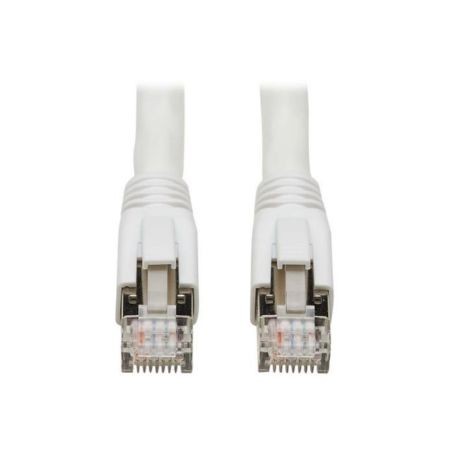

Eaton N272-003-WH Tripp Lite Cat8 40Gbps Shielded Ethernet Cable
Overview
The Eaton N272-003-WH, from the Tripp Lite series, is a Cat8 25G/40G-certified shielded S/FTP Ethernet patch cable with RJ45 male connectors on both ends. It is designed for high-speed 40GBase-T networking and supports data rates up to 40 Gbps with bandwidth up to 2000 MHz.
The 3 ft (0.91 m) cable uses 22 AWG solid copper conductors and S/FTP shielding to reduce EMI/RFI interference. Its snagless RJ45 connectors protect locking tabs during installation, while the white PVC CM-rated jacket provides cable identification in dense racks, patch panels and workstations. It also supports PoE/PoE++ applications.
Key Features
- Cat8 certified for network speeds up to 40 Gbps.
- S/FTP shielding provides protection against EMI/RFI and crosstalk.
- RJ45 male-to-male snagless connectors protect locking tabs during installation.
- 22 AWG solid copper conductors with 2000 MHz bandwidth.
- Supports PoE/PoE++ for compatible powered network devices.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number | N272-003-WH |
| Product Type | Cat8 Ethernet / Network Cable |
| Cable Category | Cat8 |
| Cable Length | 3 ft (0.91 m) |
| Connector 1 | RJ45 Male |
| Connector 2 | RJ45 Male |
| Connector Configuration | M/M |
| Network Speed | Up to 40 Gbps |
| Bandwidth | Up to 2000 MHz |
| Shielding | S/FTP |
| Conductor Type | Solid Copper |
| Conductor Gauge | 22 AWG |
| Cable Jacket | PVC |
| Jacket Rating | CM |
| Cable Color | White |
| Cable Shape | Round |
| Connector Finish | Gold |
| Connector Design | Snagless |
| PoE Support | Yes |
| Crossover | No |
| Outer Diameter | 8 mm (0.31 in) |
| Operating Temperature | 14° to 122°F (-10° to 50°C) |
| Operating Humidity | 0-90% RH, non-condensing |
| Storage Temperature | -5° to 140°F (-15° to 60°C) |
| Compliance | RoHS, REACH, UL, CE, TAA |
| Warranty | Lifetime Limited |
| Country of Origin | Taiwan |
