Detailed Specifications

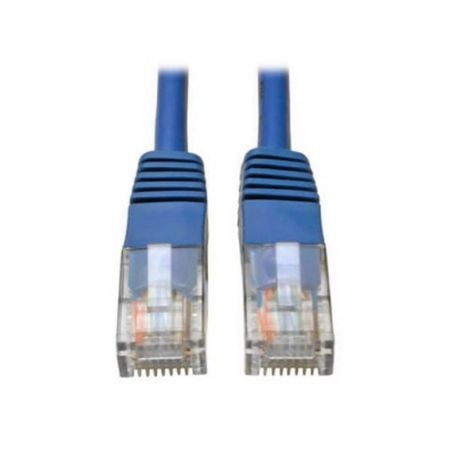

Eaton N002-100-BL Tripp Lite Cat5e Ethernet Patch Cable
Overview
The Eaton N002-100-BL, from the Tripp Lite series, is a 100-ft (30.5 m) Cat5e molded UTP Ethernet patch cable designed for network-device, server-room, and structured-cabling connections. It uses standard RJ45 male connectors on both ends with molded boots and integral strain relief.
The cable uses 4-pair solid copper UTP construction with a PVC jacket and supports communications up to 350 MHz / 1 Gbps. It is suitable for 1000Base-T and 10/100Base-T Ethernet applications as well as compatible ATM, TPDDI, ISDN, voice, and Token Ring applications.
Key Features
- 100-ft (30.5 m) length for extended Ethernet patching.
- Cat5e UTP cable rated for 350 MHz / 1 Gbps communication.
- RJ45 male-to-male connectors with molded integral strain relief.
- 4-pair solid copper construction with a PVC jacket.
- Supports 1000Base-T, 10/100Base-T and other compatible networking applications.
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Series / Brand | Tripp Lite |
| Part Number | N002-100-BL |
| Product Type | Cat5e Ethernet Patch Cable |
| Cable Category | Cat5e |
| Cable Length | 100 ft (30.5 m) |
| Cable Construction | 4-pair UTP |
| Conductor | Solid Copper |
| Conductor Gauge | 26 AWG |
| Connector A | RJ45 Male |
| Connector B | RJ45 Male |
| Connector Configuration | Male-to-Male |
| Connector Type | Molded |
| Contact Plating | Gold |
| Shielding | Unshielded / UTP |
| Jacket Material | PVC |
| Jacket Rating | CM |
| Cable Color | Blue |
| Tested Bandwidth | 350 MHz |
| TIA Bandwidth | 100 MHz |
| Maximum Data Rate | 1 Gbps |
| Network Compatibility | 1000Base-T, 10/100Base-T |
| Wiring Configuration | EIA/TIA 568B |
| Crossover | No |
| Cable Outer Diameter | 5.0 mm |
| Supported Applications | Network devices, ATM, 1000Base-T, 10/100Base-T |
| Standards | IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 |
| Compliance | RoHS, REACH |
| Country of Origin | China |
| UPC | 037332138767 |
| Warranty | Lifetime Limited Warranty |
