Detailed Specifications

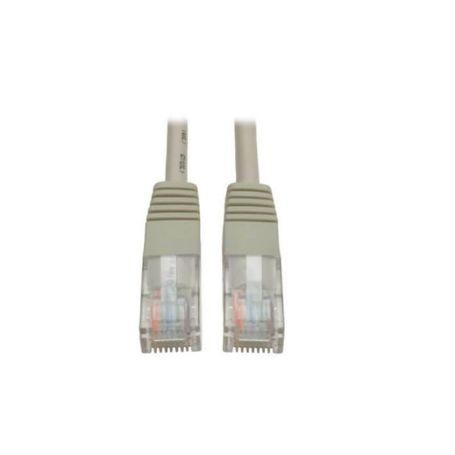

Eaton N002-002-GY Tripp Lite Cat5e Ethernet Patch Cable
Overview
The Eaton N002-002-GY, from the Tripp Lite series, is a 2-ft (0.61 m) Cat5e molded UTP Ethernet patch cable designed for standard copper networking connections. It uses RJ45 male connectors on both ends and a gray PVC 4-pair stranded copper cable construction.
The cable is rated for 350 MHz tested bandwidth and 1 Gbps Gigabit Ethernet applications. It supports 1000Base-T, 10/100Base-T and other compatible networking applications, with molded connectors and integral strain relief for repeated installation and patching.
Key Features
- 2-ft (0.61 m) cable length for short network-patch connections.
- Cat5e UTP construction using 4-pair stranded copper conductors.
- RJ45 male-to-male molded connectors with integral strain relief.
- Tested for 350 MHz bandwidth and 1 Gbps Gigabit Ethernet.
- Supports IEEE 802.3ab and Type 2 PoE+ applications.
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Series / Brand | Tripp Lite |
| Part Number | N002-002-GY |
| Product Type | Cat5e Ethernet Patch Cable |
| Cable Category | Cat5e |
| Cable Length | 2 ft (0.61 m) |
| Cable Construction | 4-pair stranded UTP |
| Conductor Material | Stranded copper |
| Conductor Gauge | 26 AWG |
| Connector A | RJ45 male |
| Connector B | RJ45 male |
| Connector Configuration | Male-to-male |
| Connector Type | Molded |
| Contact Plating | Gold |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Gray |
| Shielding | UTP / Unshielded |
| Tested Bandwidth | 350 MHz |
| TIA Standard Bandwidth | 100 MHz |
| Network Speed | 1 Gbps |
| Network Compatibility | 1000Base-T, 10/100Base-T |
| PoE Support | Type 2 PoE+ (IEEE 802.3at) |
| IEEE Standard | IEEE 802.3ab |
| Wiring Configuration | EIA/TIA 568B |
| Crossover | No |
| Outer Cable Diameter | 5.0 mm |
| Operating Temperature | 14° to 104°F (-10° to 40°C) |
| Operating Humidity | 0% to 90%, non-condensing |
| Compliance | RoHS, REACH |
| Certifications | UL Listed, cUL Listed |
| Warranty | Lifetime Limited Warranty |
| UPC | 037332141156 |
