Detailed Specifications

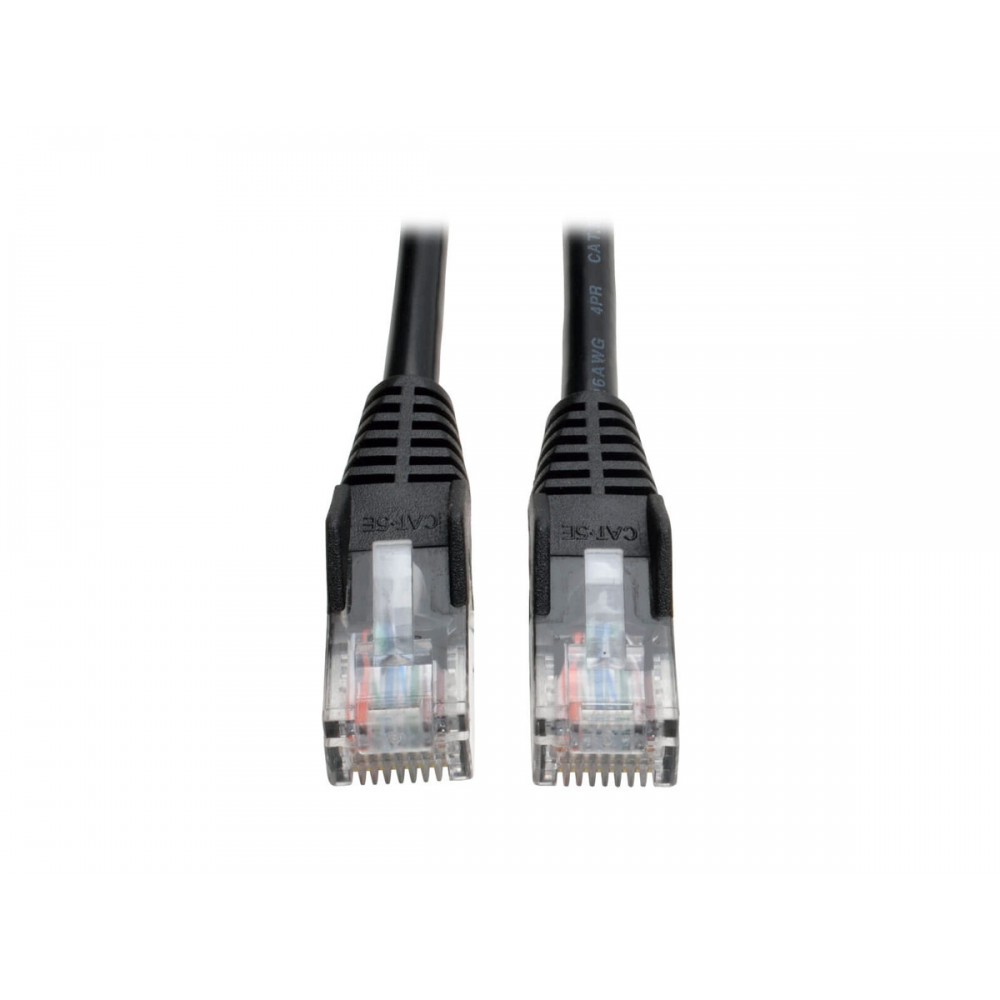

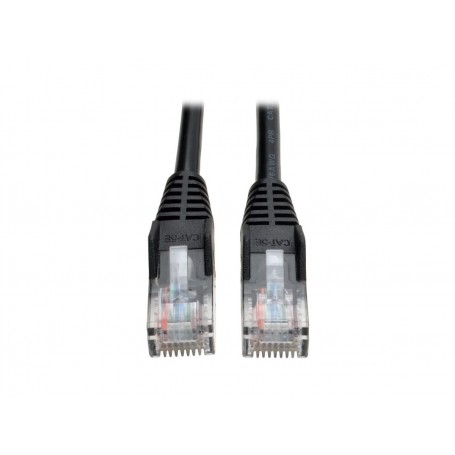

Eaton N001-014-BK Cat5e 350MHz Snagless Ethernet Cable Compatible Tripp Lite
Overview :
The Eaton N001-014-BK is a 14-foot Cat5e snagless molded Ethernet patch cable with RJ45 male connectors on both ends. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. Eaton/Tripp Lite documentation identifies the cable for Category 5 and Category 5e networking applications.
The cable is rated for 350 MHz / 1 Gbps communications and supports 1000Base-T Gigabit Ethernet, as well as 10/100Base-T Ethernet and other specified networking and communications applications. It uses PVC four-pair UTP construction with molded RJ45 connectors and integral strain relief.
The snagless connector design protects the RJ45 locking tabs during installation and removal. The cable is intended for network connections between switches, patch panels, servers, computers and other Ethernet equipment in network closets, server rooms and data-center environments.
Key Features :
- 14 ft. (4.27 m) Cat5e Ethernet patch cable
- Rated for 350 MHz / 1 Gbps communications
- RJ45 male connectors on both ends
- Snagless molded connector design
- Integral strain-relief boots
- PVC four-pair UTP construction
- Copper conductors
- Black jacket
- Supports 1000Base-T Gigabit Ethernet
- Supports 10/100Base-T Ethernet
- Supports Type 2 PoE+
- EIA/TIA 568 and ISO/IEC 11801 compatible
- RoHS compliant
- Lifetime limited warranty
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N001-014-BK |
| Product Type | Cat5e Ethernet patch cable |
| Cable Category | Cat5e |
| Cable Length | 14 ft. (4.27 m) |
| Maximum Bandwidth | 350 MHz |
| Network Speed | Up to 1 Gbps |
| Cable Construction | 4-pair UTP |
| Conductor Material | Copper |
| Conductor Type | Stranded |
| Conductor Gauge | 26 AWG |
| Connector Type | RJ45 male / RJ45 male |
| Connector Design | Snagless molded |
| Strain Relief | Integral |
| Contact Plating | Gold |
| Jacket Material | PVC |
| Jacket Color | Black |
| Shielding | UTP / Unshielded |
| Outer Cable Diameter | 5.0 mm |
| Wiring Method | EIA/TIA 568B |
| PoE Support | Type 2 PoE+ / 30W |
| Operating Temperature | 14° to 104°F (-10° to 40°C) |
| Humidity | 0-90% RH, non-condensing |
| Compliance | RoHS |
| UPC | 037332042583 |
