Detailed Specifications

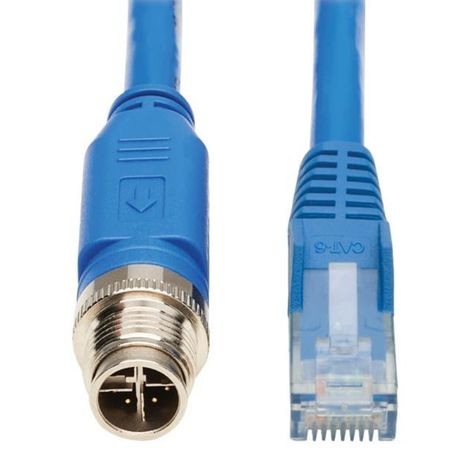

Eaton NM12-602-05M-BL Tripp Lite 5m Cat6 Industrial Ethernet Patch Cable
Overview
The Eaton Tripp Lite NM12-602-05M-BL is a 5 m Cat6 UTP industrial Ethernet cable with an M12 X-Code male connector on one end and an RJ45 male connector on the other. It provides 1 Gbps connectivity for industrial network equipment.
The cable uses solid copper conductors, a CMR-LP-rated PVC jacket, and supports Type 3 PoE++/UPoE with up to 60 W at the source and 51 W at the connected device. The M12 connector is IP68 rated for protection against dust and water immersion.
It is intended for industrial environments such as factories, warehouses, machine shops, transportation facilities, and other areas exposed to vibration, moisture, or temperature variation. It should not be selected where a standard RJ45-to-RJ45 connection is required at both ends.
Key Features
- 5 m Cat6 cable supports 1 Gbps industrial Ethernet
- M12 X-Code to RJ45 connectors suit industrial equipment
- IP68 M12 connector resists dust and water immersion
- PoE++ supports up to 60 W source power delivery
- CMR-LP jacket supports approved industrial installations
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | NM12-602-05M-BL |
| Product Type | Industrial Cat6 Ethernet Patch Cable |
| Cable Category | Cat6 |
| Cable Length | 5 m (16.4 ft) |
| Network Speed | 1 Gbps |
| Cable Shielding | UTP, Unshielded |
| Connector 1 | M12 X-Code Male |
| Connector 2 | RJ45 Male |
| Conductor Gauge | 23 AWG |
| Conductor Material | Solid Copper |
| Number of Pairs | 4 Pair |
| Cable Diameter | 6.5 mm |
| Jacket Rating | CMR-LP |
| Jacket Material | PVC |
| Jacket Color | Blue |
| IP Rating | IP68 |
| PoE Support | Type 3 PoE++ / UPoE |
| PoE Power | 60 W Source / 51 W Device |
| Bandwidth | 250 MHz TIA / 500 MHz Tested |
| Wiring Method | EIA/TIA 568B |
| Operating Temperature | 14° to 140°F (-10° to 60°C) |
| Operating Humidity | 0-90% RH, Non-Condensing |
| Storage Temperature | -4° to 158°F (-20° to 70°C) |
