Detailed Specifications
Eaton N272-F01-BL Cat8 40G Snagless SSTP Ethernet Cable Compatible Tripp Lite
Overview :

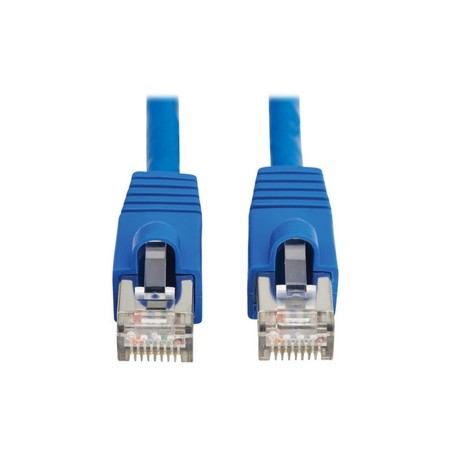

The Eaton N272-F01-BL is a Cat8 40G Snagless SSTP Ethernet Cable with male RJ45 connectors on both ends. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. Eaton documentation identifies the product within the Tripp Lite Series.
The cable supports network connectivity at up to 40 Gbps and is tested for bandwidth up to 1200 MHz. It uses SSTP shielding to help reduce EMI/RFI interference and is designed for high-speed network equipment, including switches and other 40G Ethernet devices.
The 1-foot cable uses 26 AWG stranded copper conductors, a 6.0 mm outer diameter, blue PVC jacket and snagless RJ45 connectors. It also supports Type 2 PoE+ up to 30W under IEEE 802.3at, making it suitable for compatible powered network devices.
Key Features :
- Cat8 Ethernet cable rated for up to 40 Gbps
- 1 ft. (0.30 m) cable length
- SSTP shielding for EMI/RFI protection
- Male RJ45 connectors on both ends
- Snagless connector design
- Supports up to 1200 MHz tested bandwidth
- Supports Type 2 PoE+ up to 30W
- 26 AWG stranded copper conductors
- Blue PVC CM-rated jacket
- EIA/TIA 568B wiring configuration
- Gold-plated contacts and nickel-plated connectors
- Suitable for data center and high-density network deployments
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N272-F01-BL |
| Product Type | Cat8 SSTP Ethernet patch cable |
| Cable Category | Cat8 |
| Network Speed | Up to 40 Gbps |
| Bandwidth per TIA Standard | 1000 MHz |
| Maximum Bandwidth as Tested | 1200 MHz |
| Cable Length | 1 ft. (0.30 m / 12 in.) |
| Connector Type | RJ45 male / RJ45 male |
| Connector Design | Snagless |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Cable Shielding | SSTP |
| Conductor Material | Stranded Copper |
| Conductor Gauge | 26 AWG |
| Number of Conductors | 4 Pair |
| Cable Outer Diameter | 6.0 mm |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | CM |
| Jacket Color | Blue |
| Wiring Configuration | EIA/TIA 568B |
| PoE Capability | 30W |
