Detailed Specifications

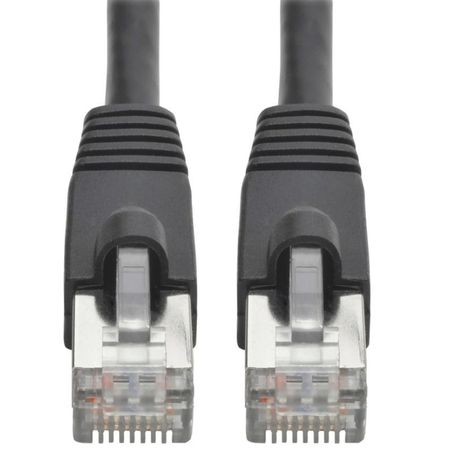

Eaton N262-006-BK Tripp Lite 6ft Ethernet patch cable Cat6a Black
Overview :
The Eaton Tripp Lite N262-006-BK is a 6-foot Cat6a 10G-certified shielded STP Ethernet patch cable with male-to-male RJ45 connectors and a black jacket. It is designed for connecting switches, servers, routers, patch panels, and other 10Gbps network equipment.
The cable uses 26 AWG stranded copper, four-pair construction, and shielded twisted-pair technology. Eaton's catalog identifies the exact N262-006-BK as STP, 1.83 m, 10 Gbps, and stranded copper.
It is suitable for data centers, network racks, server rooms, and high-density Ethernet deployments. The shielded construction is intended for installations where EMI/RFI protection is required; it should not be selected when the installation specifically requires unshielded UTP cabling.
Key Features :
- Cat6a STP supports 10 Gbps Ethernet connectivity
- 6-ft length suits standard rack equipment connections
- Shielding helps reduce EMI/RFI interference
- 26 AWG stranded copper supports flexible patching
- Snagless RJ45 plugs protect locking tabs during installation
Specifications :
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | N262-006-BK |
| Product Type | Cat6a shielded STP Ethernet patch cable |
| Cable Category | Cat6a |
| Cable Length | 6 ft (1.83 m) |
| Network Speed | 10 Gbps |
| Cable Shielding | STP / Shielded |
| Conductor Material | Stranded Copper |
| Conductor Gauge | 26 AWG |
| Number of Conductors | 4 Pair |
| Connector A | RJ45 male |
| Connector B | RJ45 male |
| Connector Configuration | Plug to plug |
| Connector Features | Snagless molded |
| Cable Jacket Material | PVC |
| Cable Color | Black |
| Cable Type | Round |
| Outer Cable Diameter | 6.2 mm |
| Bandwidth per TIA Standard | 500 MHz |
| Maximum Bandwidth as Tested | 600 MHz |
| PoE Support | Yes |
| PoE Type | Type 2 PoE+ |
| Maximum PoE Power | 30 W, IEEE 802.3at |
| Wiring Method | EIA/TIA 568B |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | 0% to 90%, non-condensing |
| Storage Temperature | -15°C to 60°C |
| Storage Humidity | 0% to 90%, non-condensing |
| Compliance | RoHS, REACH, CE, UKCA |
| Certifications | UL Listed, cUL Listed |
| Warranty | Lifetime limited |
