Detailed Specifications
Eaton N262-001-AQ Cat6a 10G Snagless Shielded STP Ethernet Cable Compatible Tripp Lite
Overview :

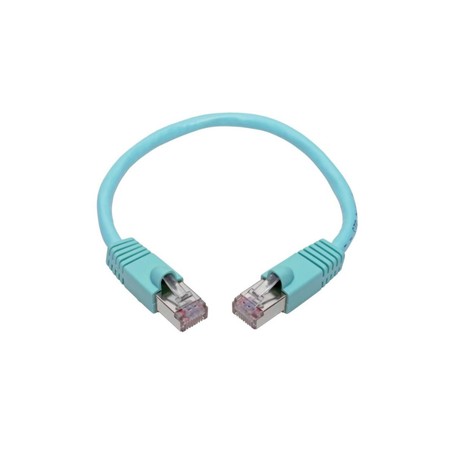

The Eaton N262-001-AQ is a 1 ft Cat6a 10G-certified shielded STP Ethernet patch cable with RJ45 male connectors on both ends. It is designed for high-speed network connections requiring reliable EMI/RFI protection and supports network speeds up to 10 Gbps.
The cable uses 26 AWG stranded copper conductors, snagless RJ45 connectors and an aqua-colored jacket. It supports PoE+ applications under IEEE 802.3at, making it suitable for switches, servers, access points and other network equipment in data-center and enterprise environments.
Key Features :
- Cat6a 10G-certified Ethernet cable
- 1 ft (0.31 m) cable length
- Shielded STP construction
- RJ45 male connectors on both ends
- Snagless connector design
- 26 AWG stranded copper conductors
- Supports up to 10 Gbps
- Supports PoE+ up to 30W
- 500 MHz TIA bandwidth
- 600 MHz maximum tested bandwidth
- Aqua cable color
- Gold-plated contacts
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N262-001-AQ |
| Product Type | Cat6a Shielded Ethernet Patch Cable |
| Cable Length | 1 ft (0.31 m) |
| Technology | Cat6a |
| Network Speed | 10 Gbps |
| Connector 1 | RJ45 Male |
| Connector 2 | RJ45 Male |
| Cable Shielding | STP |
| Conductor Material | Stranded Copper |
| Conductor Gauge | 26 AWG |
| Number of Conductors | 4 Pair |
| Cable Type | Snagless |
| Cable Color | Aqua |
| Outer Cable Diameter | 6.2 mm |
| TIA Bandwidth | 500 MHz |
| Maximum Tested Bandwidth | 600 MHz |
| PoE Support | IEEE 802.3at PoE+ |
| PoE Power | 30W |
| Wiring Method | EIA/TIA 568B |
| Operating Temperature | 14° to 122°F (-10° to 50°C) |
| Contact Plating | Gold |
| Compliance | RoHS, REACH, CE, UKCA |
