Detailed Specifications

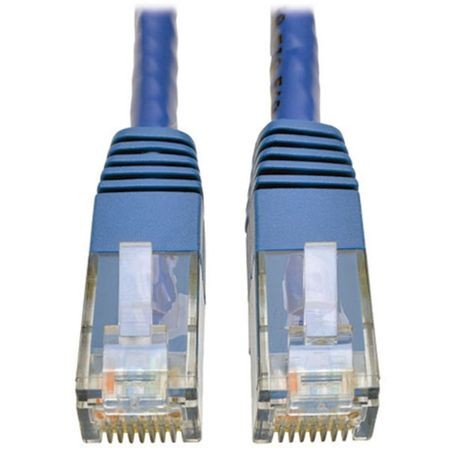

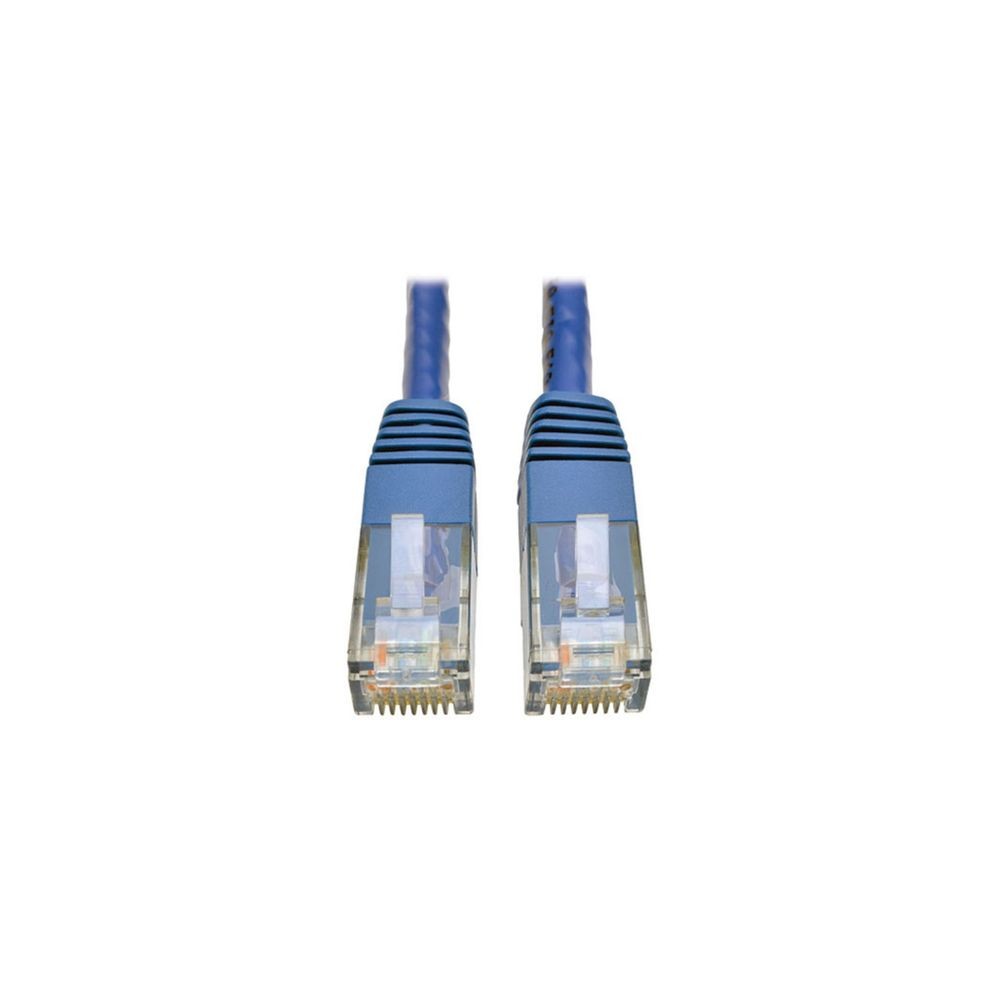

Eaton N201P-006-BL Tripp Lite 6ft Ethernet patch cable Cat6 Blue
Overview :
The Eaton Tripp Lite N201P-006-BL is a 6-foot Cat6 Gigabit UTP Ethernet patch cable with male-to-male RJ45 connectors. It is designed for connecting servers, switches, routers, patch panels, and other Ethernet equipment.
The cable uses 23 AWG solid copper conductors in four-pair UTP construction. Eaton specifies 550 MHz maximum tested bandwidth, 1 Gbps network speed, and Type 4 PoE support up to 100 W under IEEE 802.3bt.
Its CMR-LP jacket rating and snagless molded connectors support structured network installations in racks, server rooms, and data centers. The 6.5 mm outer diameter provides a standard cable profile rather than the smaller diameter used by Eaton's slim N201S series.
Key Features :
- Cat6 UTP supports Gigabit Ethernet up to 1 Gbps
- 6-ft length suits rack and equipment interconnections
- 23 AWG solid copper supports high-speed network transmission
- Type 4 PoE supports power delivery up to 100 W
- Snagless RJ45 connectors protect tabs during installation
Specifications :
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | N201P-006-BL |
| Product Type | Cat6 UTP Ethernet patch cable |
| Cable Category | Cat6 |
| Cable Length | 6 ft (1.83 m) |
| Network Speed | 1 Gbps |
| Maximum Bandwidth as Tested | 550 MHz |
| Cable Shielding | UTP / Unshielded |
| Conductor Material | Solid Copper |
| Conductor Gauge | 23 AWG |
| Number of Conductors | 4 Pair |
| Connector A | RJ45 male |
| Connector B | RJ45 male |
| Connector Configuration | Plug to plug |
| Connector Contacts | Gold |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | CMR-LP |
| Cable Color | Blue |
| Outer Cable Diameter | 6.5 mm |
| PoE Type | Type 4 High-Power |
| Maximum PoE Power | 100 W, IEEE 802.3bt |
| Wiring Method | EIA/TIA 568B |
| Operating Temperature | -10°C to 60°C |
| Operating Humidity | 0% to 90%, non-condensing |
| Certifications | UL Listed, cUL Listed |
| Compliance | IEEE Certified, RoHS, REACH, TAA, CE, UKCA |
