Detailed Specifications
Eaton N200-015-BL Tripp Lite 15ft Ethernet patch cable Cat6 Blue
Overview :

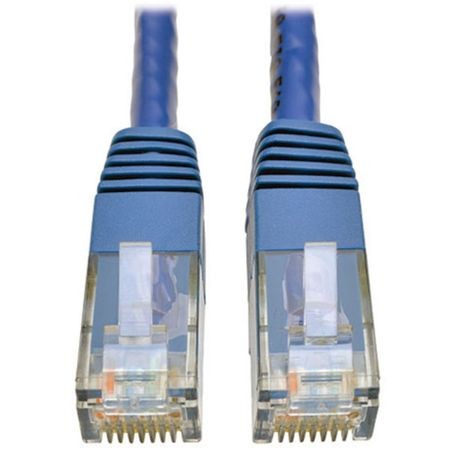

The Eaton Tripp Lite N200-015-BL is a 15-foot Cat6 UTP Ethernet patch cable with male RJ45 connectors and a blue PVC jacket. It is designed for connecting switches, servers, routers, computers, and other Ethernet equipment. Eaton specifies the cable for 1 Gbps Gigabit Ethernet applications.
The cable uses 24 AWG four-pair solid copper construction, unshielded twisted-pair cabling, and molded RJ45 connectors with gold-plated contacts. It is rated for 250 MHz under the TIA standard and 500 MHz maximum bandwidth as tested.
It is suitable for rack, server-room, office, and data-center network patching where a standard 15-foot Cat6 connection is required. It supports Type 2 PoE+ up to 30 W. Because it is UTP/unshielded, it should not be selected where shielded Ethernet cabling is specifically required.
Key Features :
- Cat6 UTP supports Gigabit Ethernet up to 1 Gbps
- 15-ft length supports flexible equipment interconnection
- 24 AWG solid copper supports Cat6 network performance
- Gold-plated RJ45 contacts support reliable signal transfer
- Type 2 PoE+ supports power delivery up to 30 W
Specifications :
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | N200-015-BL |
| Product Type | Cat6 UTP Ethernet patch cable |
| Cable Category | Cat6 |
| Cable Length | 15 ft (4.57 m) |
| Network Speed | 1 Gbps |
| Bandwidth per TIA Standard | 250 MHz |
| Maximum Bandwidth as Tested | 500 MHz |
| Cable Shielding | UTP / Unshielded |
| Conductor Material | Solid Copper |
| Conductor Gauge | 24 AWG |
| Number of Conductors | 4 Pair |
| Connector A | RJ45 male |
| Connector B | RJ45 male |
| Connector Configuration | Plug to plug |
| Connector Contacts | Gold-plated copper |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | CM |
| Cable Color | Blue |
| Outer Cable Diameter | 6.0 mm |
| Wiring Method | EIA/TIA 568B |
| PoE Type | Type 2 PoE+ |
| Maximum PoE Power | 30 W, IEEE 802.3at |
| Operating Temperature | -10°C to 40°C |
| Operating Humidity | 0% to 90%, non-condensing |
| Storage Temperature | -15°C to 50°C |
| Storage Humidity | 0% to 90%, non-condensing |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS, REACH, IEEE Certified |
