Detailed Specifications

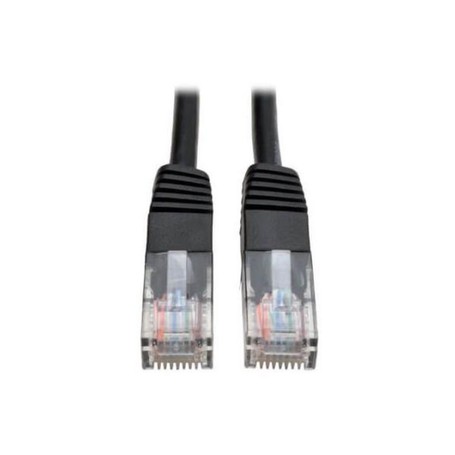

Eaton N002-004-BK Cat5e 350 MHz Molded Ethernet Cable Compatible Tripp Lite
Overview :
The Eaton N002-004-BK is a Cat5e 350 MHz Molded Ethernet Cable with RJ45 male-to-male connectors. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. Eaton documentation identifies the product within the Eaton Tripp Lite Series.
The cable is designed for Cat5/Cat5e networking applications and uses four-pair stranded UTP construction with a PVC jacket. It is rated for communications up to 350 MHz / 1 Gbps and supports 1000Base-T Gigabit Ethernet as well as 10/100Base-T Ethernet applications.
The N002-004-BK features molded RJ45 male connectors with integral strain relief, making it suitable for network closets, server rooms and data-center connectivity where short patch-cable runs are required.
Key Features :
- Cat5e 350 MHz molded Ethernet patch cable
- 4 ft. (1.22 m) cable length
- RJ45 male-to-male connectors
- 26 AWG stranded copper conductors
- 4-pair unshielded twisted-pair (UTP) construction
- PVC cable jacket
- Molded connectors with integral strain relief
- Rated for 350 MHz / 1 Gbps communication
- Supports 1000Base-T Gigabit Ethernet
- EIA/TIA 568B wiring configuration
- Gold-plated contacts
- RoHS compliant
- Lifetime limited warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N002-004-BK |
| Product Type | Cat5e Ethernet Patch Cable |
| Product Family | Eaton Tripp Lite Series |
| Cable Category | Cat5e |
| Cable Length | 4 ft. (1.22 m) |
| Connector Configuration | RJ45 Male to RJ45 Male |
| Connector Type | Molded RJ45 |
| Connector Plating | Gold |
| Cable Construction | 4-pair stranded UTP |
| Conductor Material | Stranded Copper |
| Conductor Gauge | 26 AWG |
| Shielding | Unshielded (UTP) |
| Jacket Material | PVC |
| Cable Outer Diameter | 5.0 mm |
| Maximum Bandwidth as Tested | 350 MHz |
| Bandwidth per TIA Standard | 100 MHz |
| Maximum Communication Speed | 1 Gbps |
| Wiring Configuration | EIA/TIA 568B |
| Crossover Wiring | No |
| Color | Black |
| PoE Support | Yes |
