Detailed Specifications

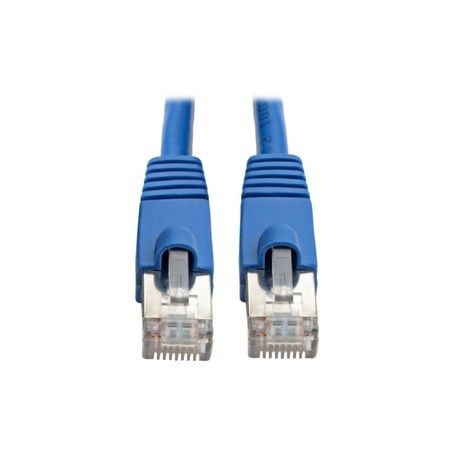

Eaton N262-001-BL Tripp Lite Cat6a 10G-Certified Snagless Shielded Ethernet Cable
Overview
The Eaton N262-001-BL is a Tripp Lite by Eaton Cat6a 10G-certified snagless shielded STP Ethernet patch cable with RJ45 male connectors on both ends. It is designed for high-speed network connections between switches, servers, routers, patch panels, and other Ethernet equipment. Eaton lists the cable for 10 Gbps networking applications.
The Tripp Lite N262-001-BL uses 26 AWG, 4-pair stranded copper construction with shielded twisted-pair (STP) cabling. The snagless RJ45 connectors protect the locking tabs during installation, while the shielding helps protect network signals from EMI/RFI interference. The cable supports Type 2 PoE+ up to 30W (IEEE 802.3at).
Key Features
- Tripp Lite by Eaton Cat6a 10G-certified shielded Ethernet patch cable
- 1 ft. (0.31 m) length for short rack and patch-panel connections
- Supports 10 Gbps Ethernet networking
- 26 AWG, 4-pair stranded copper STP construction
- Snagless RJ45 connectors with 30W Type 2 PoE+ support
Specifications
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Tripp Lite by Eaton |
| Part Number | N262-001-BL |
| Product Type | Tripp Lite Cat6a Ethernet Patch Cable |
| Cable Category | Cat6a |
| Cable Length | 1 ft. (0.31 m) |
| Connector A | RJ45 Male |
| Connector B | RJ45 Male |
| Cable Shielding | STP |
| Conductor Material | Stranded Copper |
| Conductor Gauge | 26 AWG |
| Number of Conductors | 4 Pair |
| Network Speed | 10 Gbps |
| Bandwidth per TIA Standard | 500 MHz |
| Maximum Bandwidth as Tested | 600 MHz |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | CM |
| Cable Color | Blue |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Connector Style | Snagless |
| Wiring Method | EIA/TIA 568B |
| PoE Support | Yes |
| PoE Standard | IEEE 802.3at |
| PoE Type | Type 2 PoE+ |
| Maximum PoE Power | 30W |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Compliance | RoHS, REACH |
| Certifications | UL Listed, cUL Listed |
| Warranty | Lifetime Limited |
