Detailed Specifications

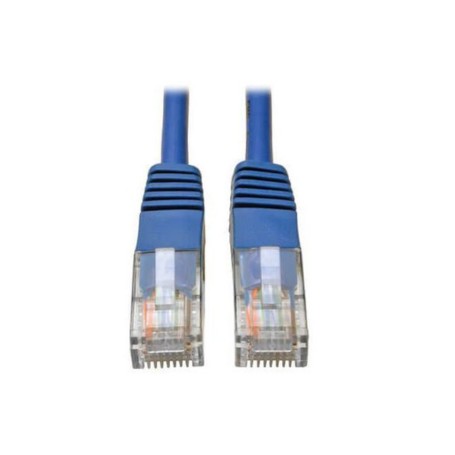

Eaton N002-012-BL Cat5e 350 MHz Molded UTP Patch Cable Compatible Tripp Lite
Overview :
The Eaton N002-012-BL is a Cat5e 350 MHz molded UTP Ethernet patch cable with RJ45 male-to-male connectors and a 12 ft (3.66 m) length. Eaton is the manufacturer/brand, while Tripp Lite is the compatible brand. The cable supports up to 1 Gbps Gigabit Ethernet and is suitable for high-density data-center and network installations.
It uses 26 AWG four-pair solid copper UTP conductors, a PVC jacket, molded RJ45 connectors and gold-plated contacts. The cable supports 1000Base-T, 10/100Base-T and PoE+ applications.
Key Features :
- Cat5e UTP Ethernet patch cable
- 12 ft (3.66 m) length
- Supports up to 1 Gbps
- 350 MHz maximum tested bandwidth
- 26 AWG four-pair solid copper
- RJ45 male-to-male connectors
- Molded connectors with integral strain relief
- Gold-plated contacts
- PVC CM-rated jacket
- Blue finish
- Supports IEEE 802.3ab Gigabit Ethernet
- Supports IEEE 802.3at PoE+
- UL/cUL Listed
- RoHS, REACH and UKCA compliant
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N002-012-BL |
| Product Type | Cat5e 350 MHz Molded UTP Patch Cable |
| Cable Category | Cat5e |
| Cable Length | 12 ft (3.66 m) |
| Network Speed | Up to 1 Gbps |
| Bandwidth per TIA | 100 MHz |
| Maximum Bandwidth Tested | 350 MHz |
| Conductor Material | Solid Copper |
| Conductor Gauge | 26 AWG |
| Cable Construction | 4-Pair UTP |
| Cable Outer Diameter | 5.0 mm |
| Connectors | RJ45 Male-to-Male |
| Connector Type | Molded |
| Contact Plating | Gold |
| Wiring Configuration | EIA/TIA 568B |
| Jacket Material | PVC |
| Jacket Rating | CM |
| Color | Blue |
| Shielding | Unshielded UTP |
| PoE Support | Type 2 PoE+ (30W) |
| IEEE Standards | 802.3ab, 802.3at |
| Certifications | UL Listed, cUL Listed |
