Detailed Specifications

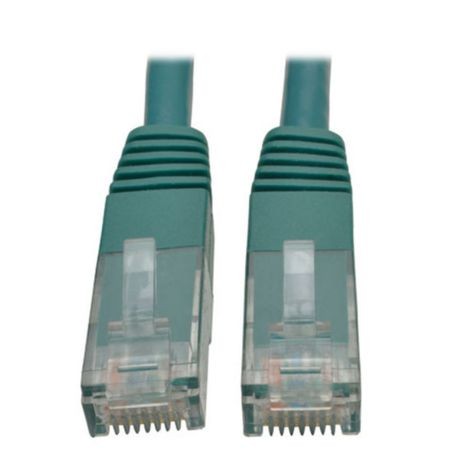

Eaton N200-003-GN Tripp Lite 3ft Ethernet patch cable Cat6a
Overview
The Eaton Tripp Lite N200-003-GN is a 3-ft Cat6 unshielded twisted-pair Ethernet patch cable with molded RJ45 male-to-male connectors. It is designed for connecting computers, printers, routers, modems, switches, and other network equipment in Cat5, Cat5e, and Cat6 installations.
The cable supports Gigabit Ethernet up to 1 Gbps and uses 24 AWG four-pair stranded UTP construction with a PVC jacket. Its 550 MHz rating supports Cat6 network applications, while gold-plated copper contacts and integral strain relief support reliable signal transfer and repeated patching.
The N200-003-GN is suited to standard unshielded copper Ethernet connections where 1 Gbps performance is sufficient. It should not be selected where Cat6a/10G performance or shielded cabling is specifically required. The green jacket provides visual identification in organized network cabling.
Key Features
- Cat6 Gigabit support provides up to 1 Gbps connectivity
- 24 AWG stranded UTP supports flexible network patching
- 550 MHz rating supports standard Cat6 applications
- Gold-plated RJ45 contacts support reliable signal transfer
- Molded strain relief helps protect connectors during use
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | N200-003-GN |
| Product Type | Cat6 Ethernet patch cable |
| Cable Category | Cat6 |
| Network Speed | Up to 1 Gbps |
| Cable Length | 3 ft (0.91 m) |
| Shielding | Unshielded twisted pair (UTP) |
| Connector Type | RJ45 male to RJ45 male |
| Conductor Gauge | 24 AWG |
| Conductor Construction | 4-pair stranded copper |
| Cable Outer Diameter | 6.0 mm |
| Jacket Material | PVC |
| Jacket Rating | CM |
| Jacket Color | Green |
| Bandwidth per TIA Standard | 250 MHz |
| Maximum Bandwidth as Tested | 500 MHz |
| Contact Plating | Gold |
| Operating Temperature | 14°F to 104°F (-10°C to 40°C) |
| Storage Temperature | 5°F to 122°F (-15°C to 50°C) |
| Standards | IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 |
