Detailed Specifications

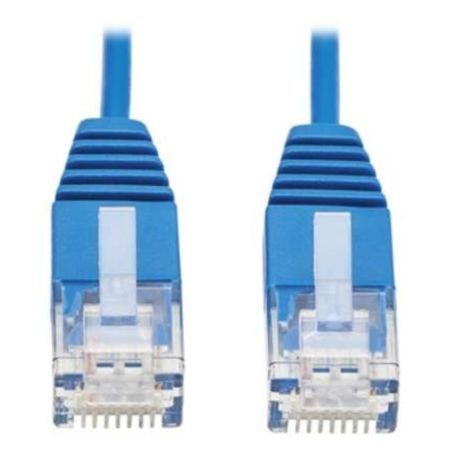

Eaton N261-UR6N-BL Tripp Lite 6 inch Ethernet patch cable Cat6a
Overview
The Eaton Tripp Lite N261-UR6N-BL is a 6-inch Cat6a unshielded twisted-pair Ethernet patch cable with molded RJ45 male-to-male connectors. It is designed for short connections between servers, switches, routers, patch panels, and other network equipment in high-density 10G Ethernet environments.
The cable supports 10 Gbps networking and uses four-pair, 32 AWG stranded copper conductors. Its 2.8 mm outer diameter makes it more than 50% smaller than standard Cat6a cable, reducing cable bulk and helping preserve airflow in crowded equipment racks. The connectors use gold-plated contacts for signal-transfer performance.
The N261-UR6N-BL is suited to very short copper patch connections and cable-management applications where space is limited. Its UTP construction is intended for standard Ethernet deployments; shielded cabling should be selected where EMI/RFI protection is specifically required.
Key Features
- Cat6a 10G support for high-speed network patching
- Ultra-slim 2.8 mm profile reduces rack cable congestion
- 32 AWG stranded copper supports flexible short connections
- Gold-plated RJ45 contacts support reliable signal transfer
- Blue jacket enables fast cable identification in dense racks
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | N261-UR6N-BL |
| Product Type | Cat6a Ethernet patch cable |
| Cable Category | Cat6a |
| Network Compatibility | 10 Gbps |
| Cable Length | 6 in (15.24 cm) |
| Shielding | Unshielded twisted pair (UTP) |
| Connector Type | RJ45 male to RJ45 male |
| Conductor Material | Stranded copper |
| Conductor Gauge | 32 AWG |
| Number of Conductors | 4 pair |
| Cable Outer Diameter | 2.8 mm |
| Jacket Material | PVC |
| Jacket Color | Blue |
| Bandwidth per TIA Standard | 500 MHz |
| Maximum Bandwidth as Tested | 600 MHz |
| Wiring Configuration | EIA/TIA 568B |
| IEEE Standard | 802.3an 10GBase-T |
| Operating Temperature | 14°F to 104°F (-10°C to 40°C) |
| Operating Humidity | 0% to 90% RH, non-condensing |
