Overview

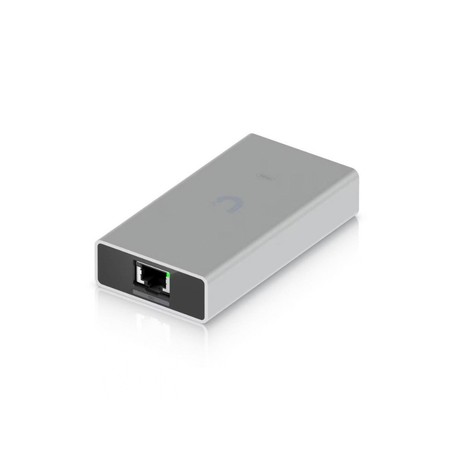

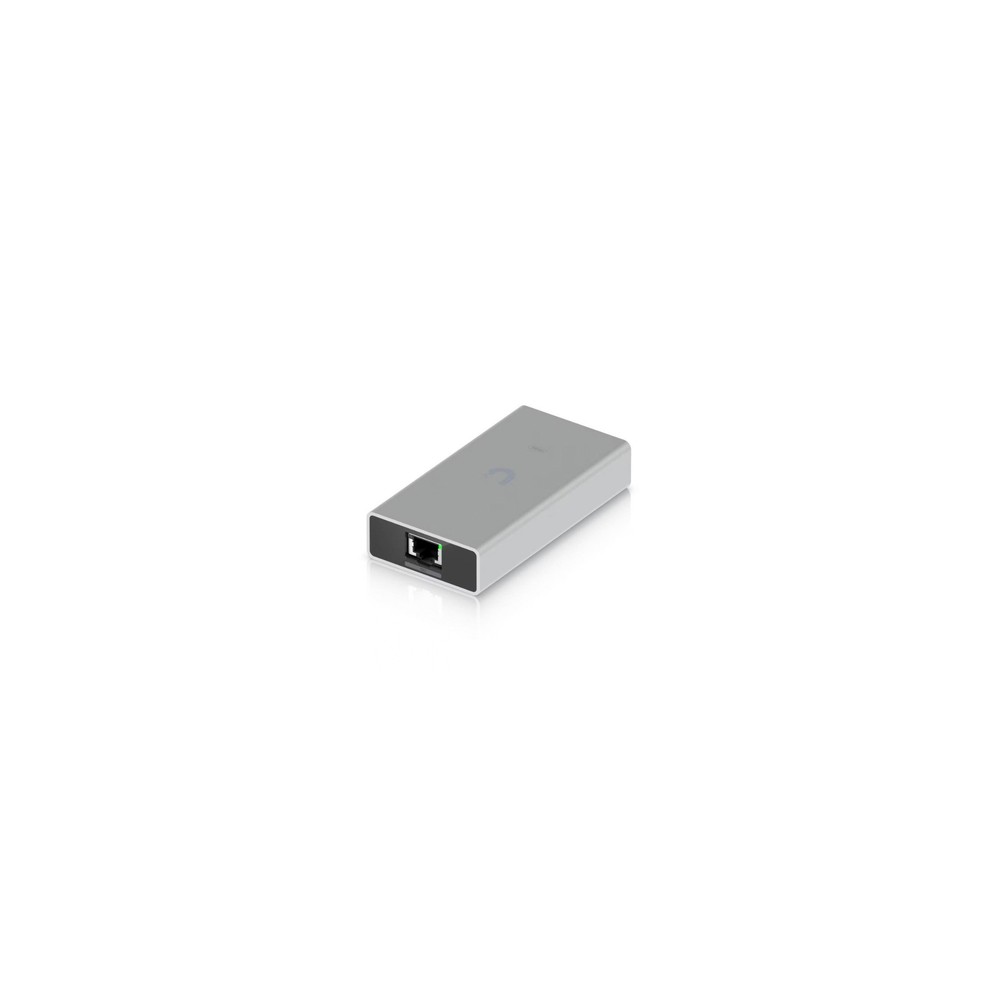

The Ubiquiti UACC-Adapter-RJ45-USBC-10GE is a plug-and-play 10G Ethernet adapter that connects a compatible USB-C host device to a high-speed RJ45 Ethernet network. It provides 10GbE connectivity in a compact enclosure and is suitable for computers and other compatible host devices that require wired network access.
10GbE Network Connectivity
The adapter provides one 10 GbE RJ45 network port for connection to a compatible Ethernet switch or network device. It is designed for high-speed wired networking where the host device does not have an integrated 10GbE RJ45 interface.
USB-C Host Connection
UACC-Adapter-RJ45-USBC-10GE connects to the host through USB Type-C. Ubiquiti specifies that the host USB-C port must support USB4, Thunderbolt 3, or Thunderbolt 4 for compatibility with the adapter.
Operating System Compatibility
The adapter supports macOS 14.2 and future releases, Windows 7/8/8.1 and Windows 10/11 in both 32-bit and 64-bit versions, as well as Linux. The USB-C connection provides the host-side interface while the RJ45 port handles the wired Ethernet connection.
Construction and Status Indication
The enclosure combines polycarbonate and aluminum alloy and includes a LAN activity indicator for network-link status. Its compact 107 × 56 × 22 mm form factor makes it suitable for desktop, workstation, and mobile-computing environments.
Key Features
- 10 GbE RJ45 network interface
- USB Type-C host connection
- USB4, Thunderbolt 3, and Thunderbolt 4 host compatibility
- LAN activity indicator
- Polycarbonate and aluminum alloy enclosure
Applications
The adapter can be used to add high-speed wired Ethernet connectivity to compatible laptops, workstations, and other USB-C host devices. It is suitable for high-bandwidth network access, workstation connectivity, network storage access, and environments where a 10GbE RJ45 connection is required.
DC Supplies Product Note
Before deployment, verify that the host USB-C port supports USB4, Thunderbolt 3, or Thunderbolt 4 as specified by Ubiquiti. The adapter provides the network interface; the connected host and network equipment must also support the required Ethernet speed for the intended connection.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-Adapter-RJ45-USBC-10GE |
|---|
| Product Type | 10G Ethernet Adapter |
|---|
| Network Interface | 1 × 10 GbE RJ45 |
|---|
| Host Interface | 1 × USB Type-C |
|---|
| Host Compatibility | USB4, Thunderbolt 3, Thunderbolt 4 |
|---|
| Gigabit LAN Port | Yes |
|---|
| LAN Activity Indicator | Yes |
|---|
| Compatible Operating Systems | macOS 14.2 and future releases; Windows 7/8/8.1; Windows 10/11; Linux |
|---|
| Enclosure Material | Polycarbonate, aluminum alloy |
|---|
| Dimensions | 107 × 56 × 22 mm |
|---|
| Weight | 160 g |
|---|
| Operating Temperature | 5°C to 45°C |
|---|
| Operating Humidity | 20–80% non-condensing |
|---|
| NDAA Compliant | Yes |
|---|
| Certifications | CE, FCC, IC, UKCA |
|---|
FAQs
What type of Ethernet connection does the adapter provide?
It provides one 10 GbE RJ45 Ethernet port for connection to a compatible wired network.
What USB-C ports are compatible?
The host USB-C port must support USB4, Thunderbolt 3, or Thunderbolt 4.
Which operating systems are supported?
Ubiquiti lists macOS 14.2 and future releases, Windows 7/8/8.1, Windows 10/11, and Linux as compatible operating systems.
Does the adapter have a network activity indicator?
Yes. The adapter includes a LAN activity indicator.
What are the dimensions of the adapter?
The adapter measures 107 × 56 × 22 mm and weighs 160 g.
