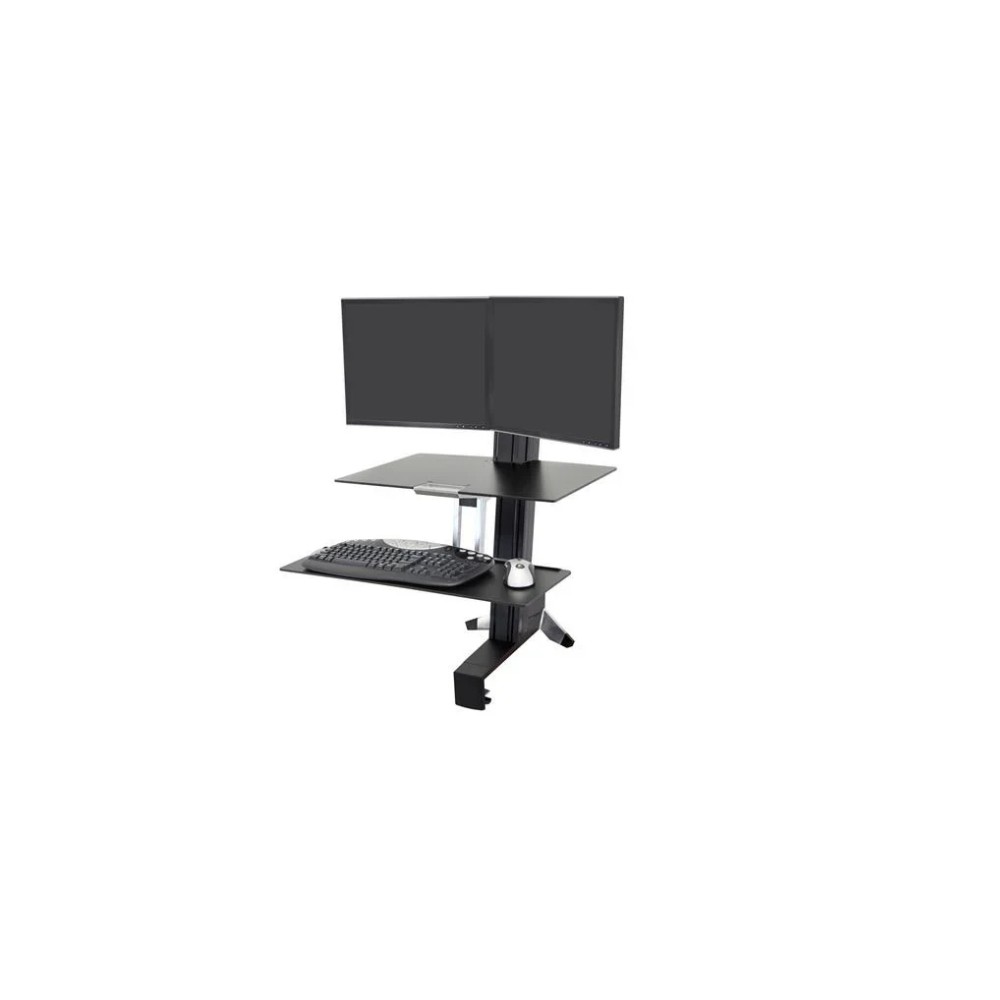

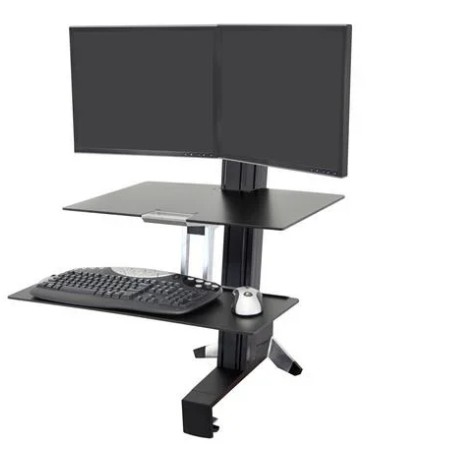

Ergotron 33-349-200 – WorkFit-S Dual Workstation with Worksurface
Overview
The Ergotron 33-349-200 WorkFit-S is a front-clamp sit-stand workstation designed for two displays. The black configuration combines a height-adjustable monitor platform with an integrated worksurface and large keyboard tray, allowing the workstation to transition between sitting and standing positions.
Technical Information
The WorkFit-S uses Ergotron Constant Force technology for smooth manual height adjustment. The monitors and keyboard tray move together through 18 inches of tandem adjustment, while the displays provide an additional 4.8 inches of independent adjustment for a maximum monitor height adjustment of 22.8 inches. The displays rotate 360° for portrait or landscape positioning.
Compatibility
The 33-349-200 supports two displays with a typical screen size up to 24 inches. Each display is specified at 6–12 lb, while the maximum total load on the height-adjustment assembly is 25 lb. The display mounting interface supports VESA MIS-D 75 × 75 mm and 100 × 100 mm patterns. The front desk clamp attaches to desktop edges from 0.47 to 2.4 inches thick.
Key Features
- Supports two displays with typical screen sizes up to 24 inches.
- Provides 18 inches of tandem sit-stand adjustment plus 4.8 inches of independent monitor adjustment.
- Supports a maximum 25 lb total load on the height-adjustment assembly.
- Includes a 23 × 15-inch integrated worksurface and 27 × 9-inch large keyboard tray.
- Provides 360° portrait-to-landscape monitor rotation with VESA 75 × 75 and 100 × 100 mm mounting.
Applications
The WorkFit-S Dual Workstation is suited to office workstations, engineering desks, administrative environments, control areas and other professional computing applications where users need to alternate between seated and standing positions. The integrated worksurface provides a dedicated platform for equipment and accessories.
DC Supplies Product Note
Verify the combined weight of the installed displays, worksurface load and keyboard tray contents before deployment. Ergotron specifies a maximum total load of 25 lb on the height-adjustment assembly; the display capacity should not be treated as an additional 25 lb allowance. Also verify display width and VESA compatibility before installation.
Specifications
| Brand | Ergotron |
|---|
| MPN | 33-349-200 |
|---|
| Product Type | Sit-Stand Workstation |
|---|
| Series | WorkFit-S |
|---|
| Configuration | Dual Monitor with Worksurface |
|---|
| Color | Black |
|---|
| Display Capacity | 2 monitors |
|---|
| Typical Display Size | Up to 24 in |
|---|
| Individual Monitor Weight | 6–12 lb (2.7–5.5 kg) each |
|---|
| Maximum Total Load | 25 lb (11.4 kg) |
|---|
| Tandem Adjustment | 18 in (46 cm) |
|---|
| Independent Monitor Adjustment | 4.8 in (12.2 cm) |
|---|
| Maximum Monitor Height Adjustment | 22.8 in (57.9 cm) |
|---|
| Monitor Rotation | 360° portrait-to-landscape |
|---|
| VESA Compatibility | MIS-D 75 × 75 mm and 100 × 100 mm |
|---|
| Worksurface | 23 × 15 in (58.5 × 38 cm) |
|---|
| Keyboard Tray | 27 × 9 in (68.5 × 22.6 cm) |
|---|
| Desktop Clamp Range | 0.47–2.4 in (1.2–6 cm) |
|---|
| Mounting | Front desk clamp |
|---|
| Product Weight | 36.1 lb (16.4 kg) |
|---|
| Shipping Dimensions | 8 × 23 × 44 in (20 × 58 × 115 cm) |
|---|
| Shipping Weight | 45.5 lb (20.7 kg) |
|---|
| Warranty | 5 years |
|---|
FAQs
What is the Ergotron 33-349-200?
The 33-349-200 is a WorkFit-S dual-monitor sit-stand workstation with an integrated worksurface and large keyboard tray.
How many monitors does it support?
The workstation is designed for two monitors.
What monitor size is supported?
The typical specified display size is up to 24 inches. Ergotron documentation also notes that allowable display width depends on monitor thickness.
What is the monitor weight range?
Each display is specified at 6–12 lb, subject to the 25 lb maximum total load of the height-adjustment assembly.
How much height adjustment is available?
The monitors and keyboard tray move together through 18 inches, with an additional 4.8 inches of independent monitor adjustment, providing up to 22.8 inches of monitor height adjustment.
What VESA patterns are supported?
The display pivots support VESA MIS-D 75 × 75 mm and 100 × 100 mm mounting patterns.
What are the worksurface dimensions?
The integrated worksurface measures 23 × 15 inches (58.5 × 38 cm).
What are the keyboard tray dimensions?
The large keyboard tray measures 27 × 9 inches (68.5 × 22.6 cm).
What desktop thickness can the clamp accommodate?
The front desk clamp attaches to desktop edges from 0.47 to 2.4 inches (1.2–6 cm) thick.
What is the warranty?
Ergotron specifies a five-year warranty for the WorkFit-S 33-349-200.
