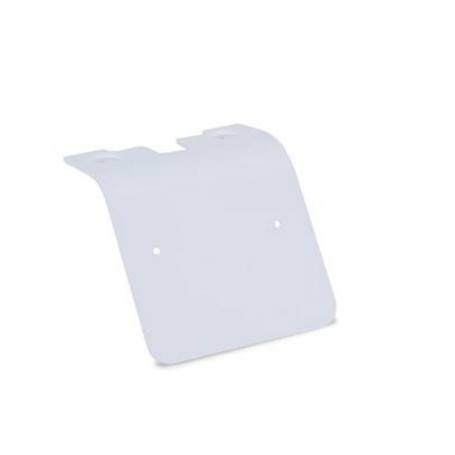

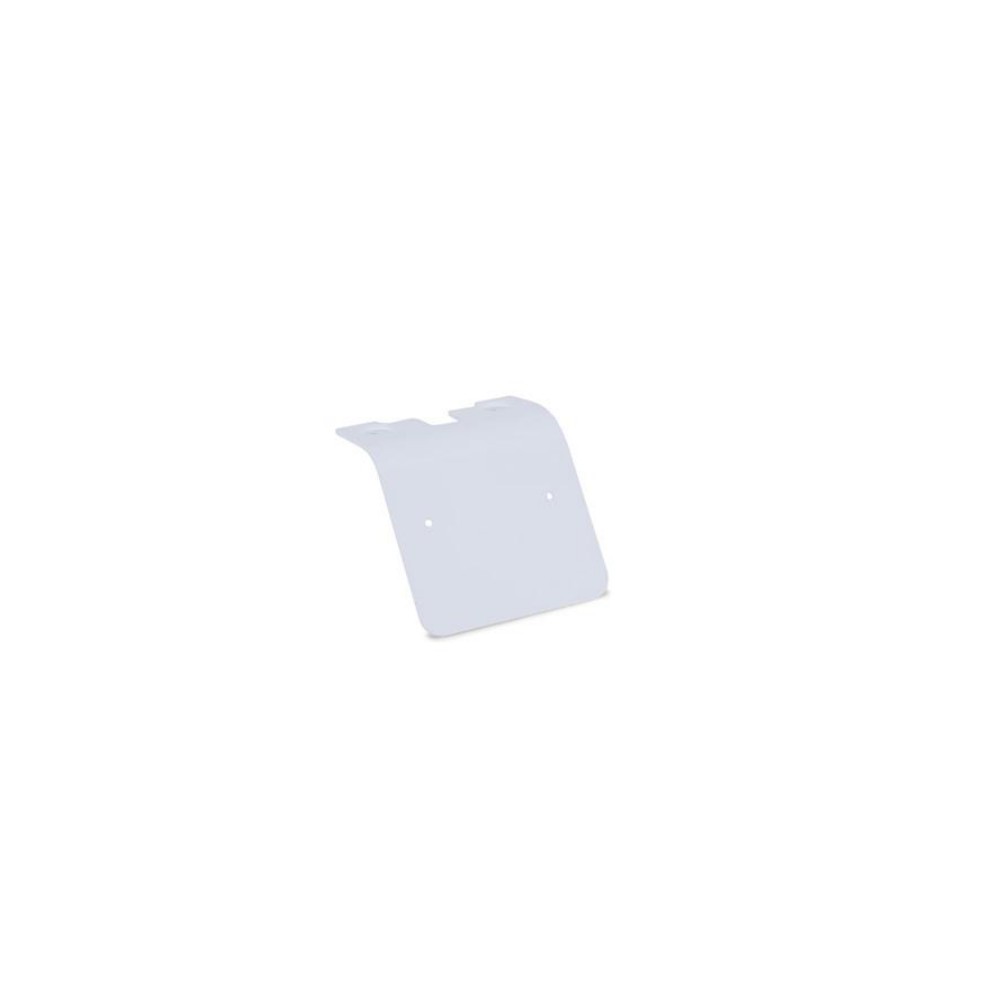

Ergotron 98-468 – Side-Mount Printer Bracket, Slim 2.0
Overview
The Ergotron 98-468 Side-Mount Printer Bracket, Slim 2.0 is an accessory for CareFit Slim 2.0 LCD Medical Carts. It positions a compatible mobile printer within the primary work zone while preserving usable worksurface area. The bracket attaches to the Side-Mount Scanner Holder and is designed for compact Zebra mobile printers.
Technical Information
The 98-468 supports a printer weighing up to 2 lb (0.9 kg). The printer attaches to the bracket using two screws, with mounting holes spaced 59 mm apart and measuring 3.5 mm in diameter. Ergotron documentation identifies the Zebra ZQ610 and ZQ620 mobile printers as the intended printer models.
Compatibility
The bracket is compatible with Ergotron CareFit Slim 2.0 LCD Carts C50-3500-0 and C50-3510-0. The Side-Mount Scanner Holder, MPN 98-467, is required to attach the printer bracket to the cart. The 98-468 itself does not provide the cart-side mounting interface.
Key Features
- Side-mount printer bracket designed for CareFit Slim 2.0 LCD Medical Carts
- Supports printers weighing up to 2 lb (0.9 kg)
- Designed for Zebra ZQ610 and ZQ620 mobile printers
- Requires the Ergotron 98-467 Side-Mount Scanner Holder for cart attachment
- White finish with included bracket and attachment hardware
Applications
The Ergotron 98-468 is intended for healthcare mobile-workstation deployments where barcode and label printing needs to remain close to the caregiver. Side mounting keeps the printer accessible while opening additional usable space on the primary cart worksurface.
DC Supplies Product Note
The 98-468 is a printer mounting accessory, not a complete printer or cart. The compatible CareFit Slim 2.0 cart and 98-467 Side-Mount Scanner Holder are separate components. Verify the printer's mounting-hole pattern and weight before installation.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 98-468 |
|---|
| Product | Side-Mount Printer Bracket, Slim 2.0 |
|---|
| Product Type | Printer Mounting Bracket |
|---|
| Color | White |
|---|
| Supported Device | Mobile Printer |
|---|
| Maximum Load Capacity | 2 lb (0.9 kg) |
|---|
| Intended Printers | Zebra ZQ610; Zebra ZQ620 |
|---|
| Printer Mounting | Two-screw attachment |
|---|
| Mounting Hole Spacing | 59 mm |
|---|
| Mounting Hole Diameter | 3.5 mm |
|---|
| Required Cart-Side Accessory | 98-467 Side-Mount Scanner Holder |
|---|
| Compatible Carts | CareFit Slim 2.0 C50-3500-0; C50-3510-0 |
|---|
| Product Weight | 0.5 lb (0.24 kg) |
|---|
| Shipping Dimensions | 9 × 7 × 1.4 in (23 × 18 × 3.5 cm) |
|---|
| Shipping Weight | 0.7 lb (0.3 kg) |
|---|
| Included | Bracket; attachment hardware |
|---|
| Warranty | 5 years |
|---|
FAQs
What is the Ergotron 98-468?
It is the Side-Mount Printer Bracket, Slim 2.0, designed to mount a compatible mobile printer to an Ergotron CareFit Slim 2.0 LCD Medical Cart.
Which printers are supported?
Ergotron documentation specifically identifies the Zebra ZQ610 and ZQ620 mobile printers. Other printers may be used if their mounting holes match the specified 59 mm spacing and 3.5 mm hole diameter and remain within the 2 lb load limit.
What is the maximum printer weight?
The maximum specified load is 2 lb (0.9 kg).
Which carts are compatible?
The 98-468 is compatible with CareFit Slim 2.0 LCD Carts C50-3500-0 and C50-3510-0.
Is the 98-467 required?
Yes. The Side-Mount Scanner Holder, MPN 98-467, is required to attach the 98-468 printer bracket to the CareFit Slim 2.0 cart.
Does the printer come with the bracket?
No. The 98-468 is the mounting bracket accessory. The printer is purchased separately.
What is included with the 98-468?
The package includes the printer bracket and attachment hardware. The screws used to attach the printer itself are supplied with the compatible Zebra printers.
What is the warranty?
The 98-468 carries a five-year warranty.
